SUNHUNK U-Shape Dump Semi-Trailer – 8.1 Tons, 12R22.5

Are you looking for a powerful and durable medium-duty dump semi-trailer that meets the demanding needs of construction material transport and earthmoving operations?

The SUNHUNK 8.1 Tons U-Shape Dump Semi-Trailer (kerb weight: 8,100 kg) — equipped with the SUNHUNK HCTM 202-5 hydraulic system and 12R22.5 steel radial tires — is a choice worth serious consideration.

Officially distributed by VIMID, this product promises to deliver an optimal and cost-effective transport solution for customers in the construction and logistics industries.

The SUNHUNK Dump Semi-Trailer Line

The SUNHUNK dump semi-trailer series is well-known for its robust structure, excellent load-bearing capacity, and stable operation across various terrains.
The 8.1 Tons U-shape Dump Semi-Trailer version further enhances these strengths, introducing improved performance and durability through refined design and upgraded materials.

Technical Specifications of the SUNHUNK 8.1 Tons U-Shape Dump Semi-Trailer

Dimensions & Load Capacity

• Axles: 6×0 — ensuring flexible maneuverability on diverse roads.

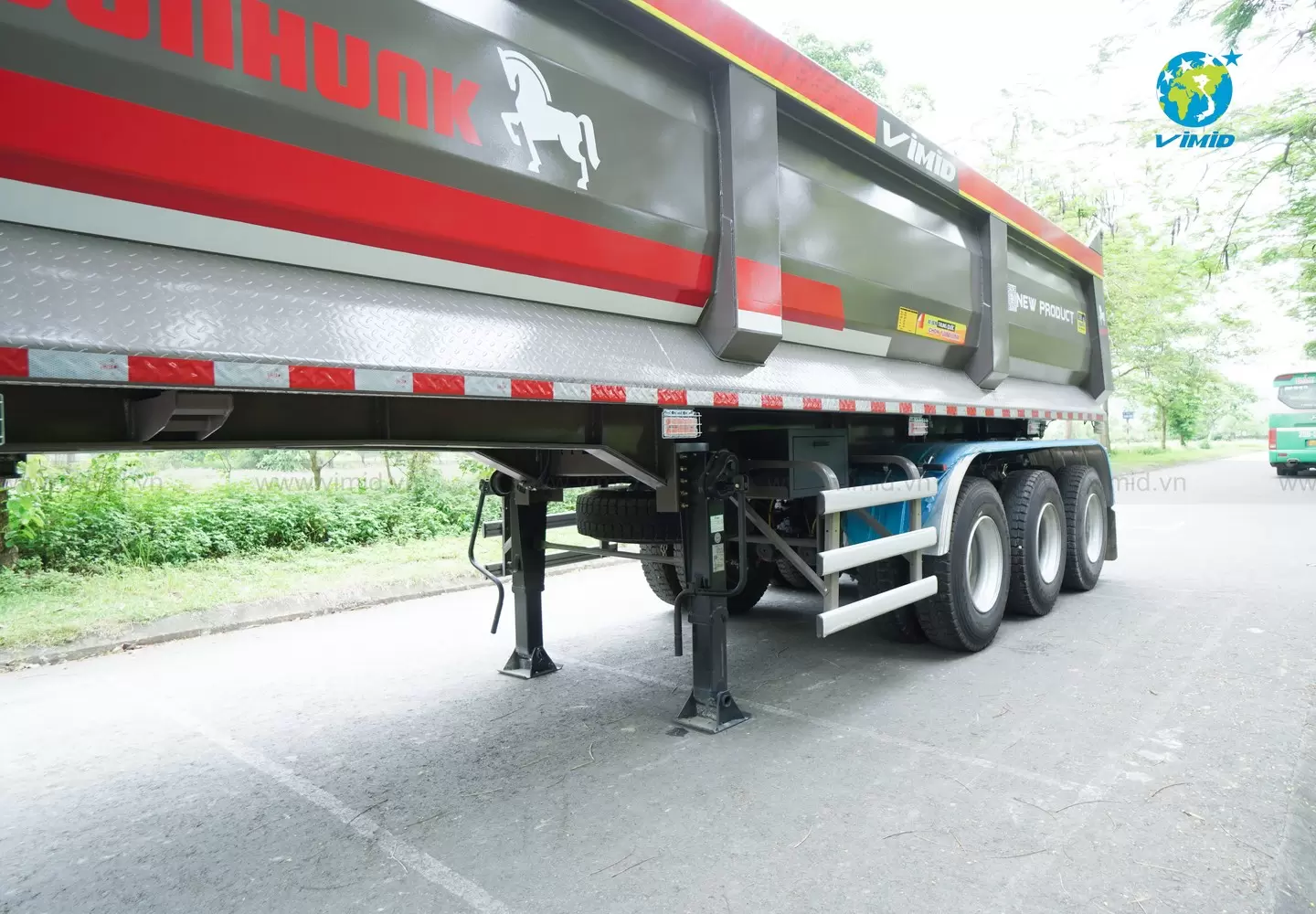

• Overall dimensions (L × W × H): 9,300 × 2,500 × 3,480 mm — ideal for multiple construction and transport applications.

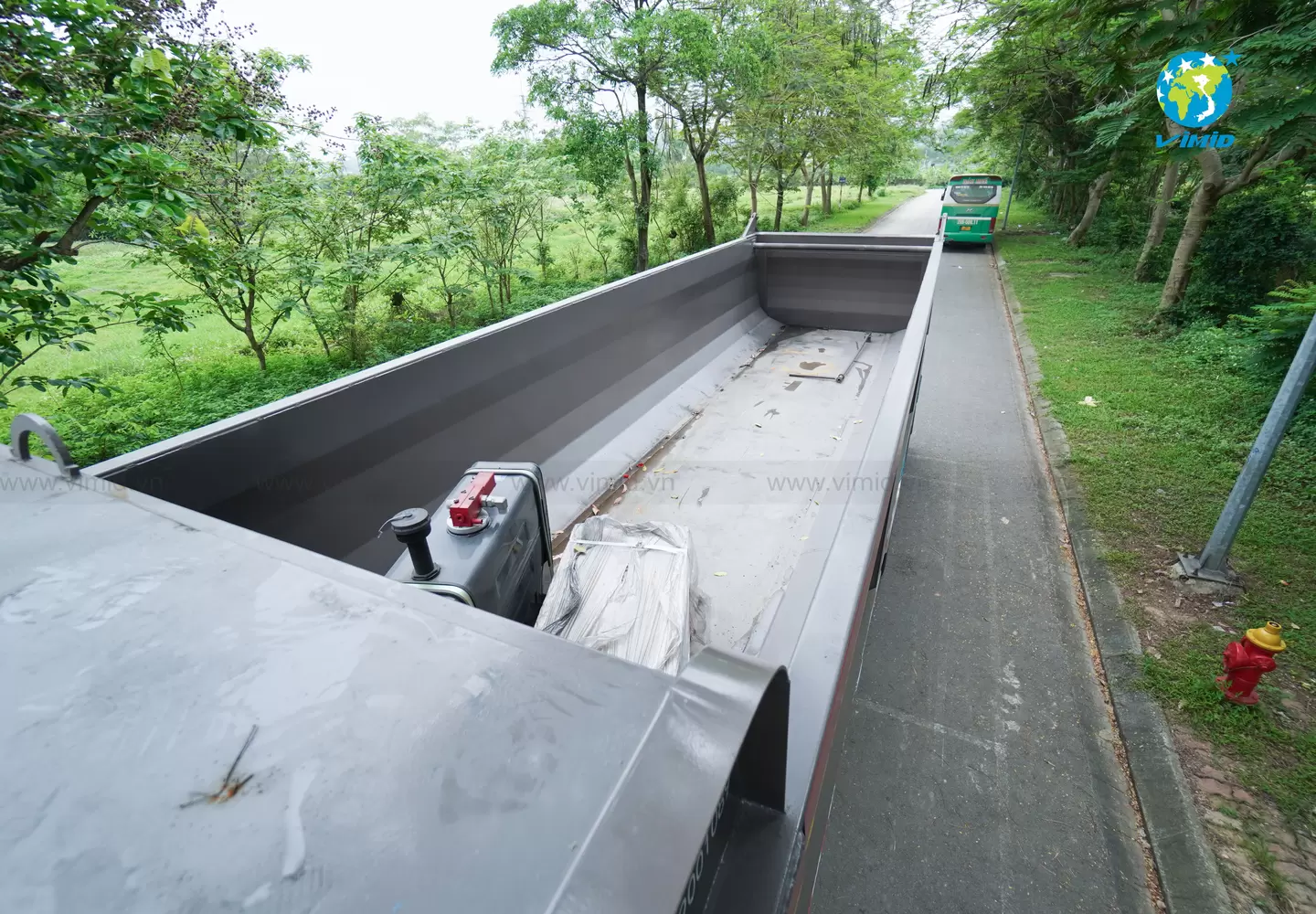

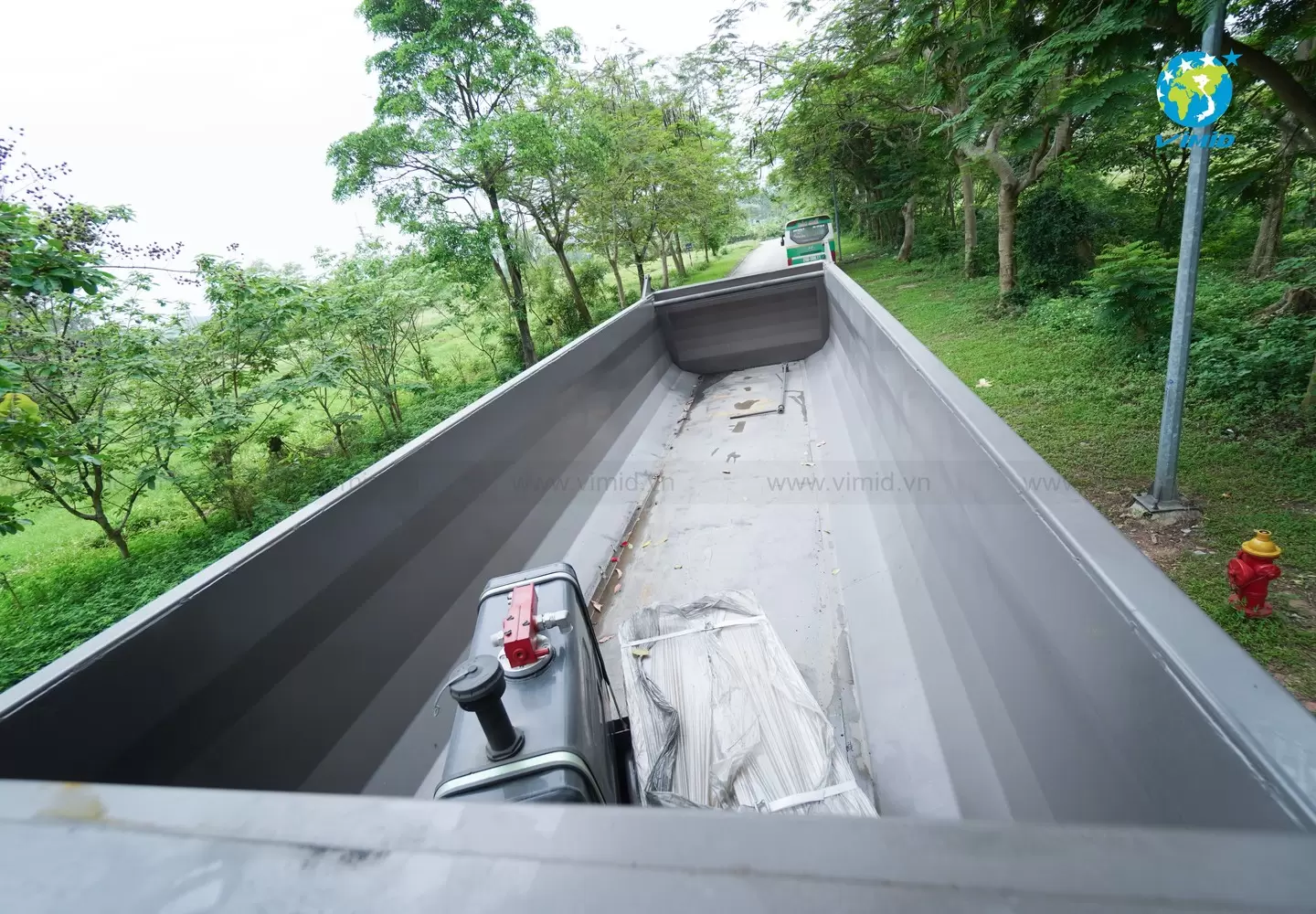

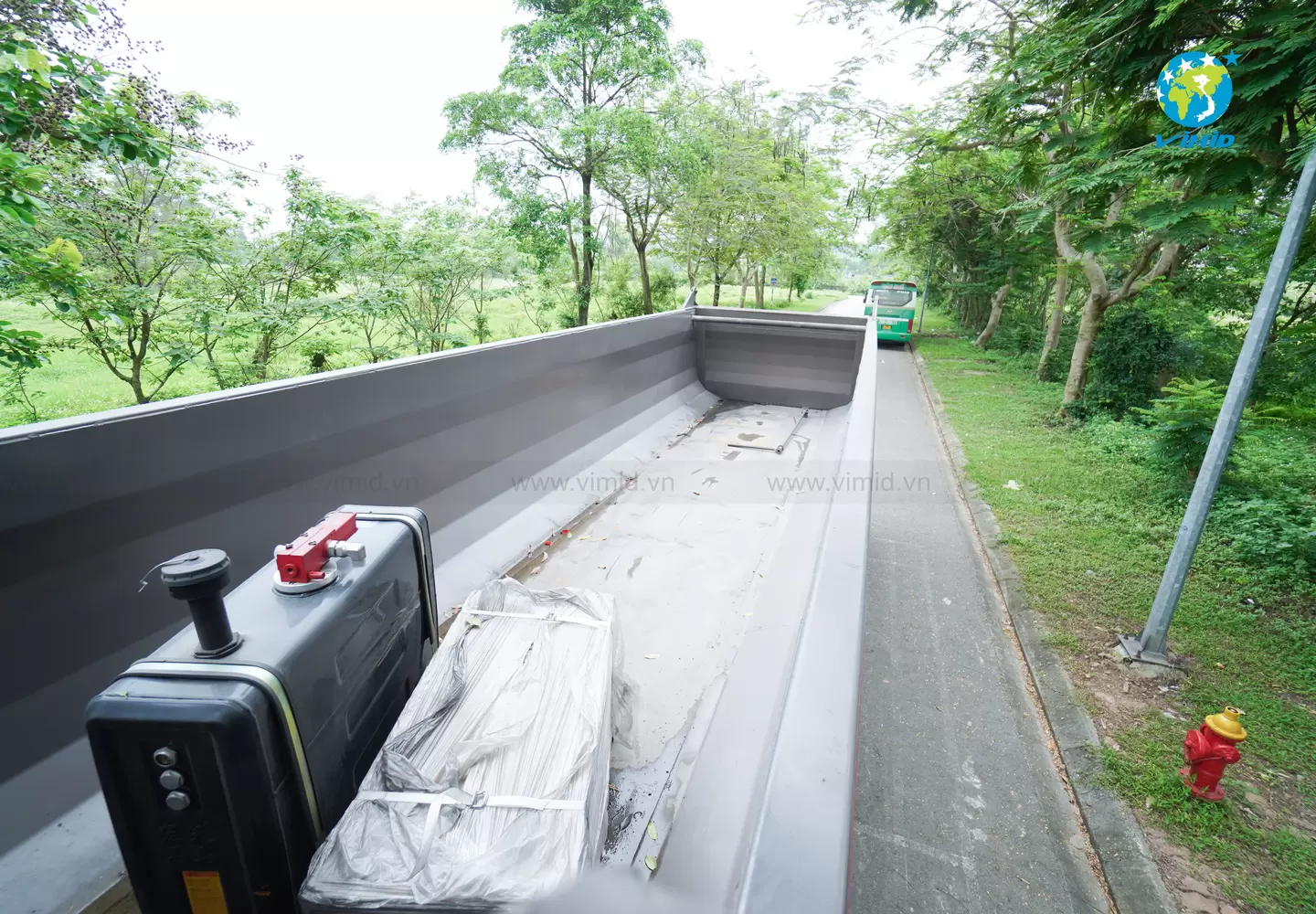

• Dump Box dimensions (L × W × H): 8,500/8,100 × 2,320/1,530 × 1,310 mm — optimized for maximum cargo volume.
• Wheelbase: 4,570 + 1,310 + 1,310 mm
• Rear track width: 1,840 mm
• Kerb weight (chassis/tarpaulin body): 8,100 kg
• Maximum payload: 31,900 / 28,800 kg
• Gross vehicle weight rating (GVWR): 40,000 / 36,900 kg

Specialized Equipment

• Hydraulic system: SUNHUNK HCTM 202-5 mid-mounted hydraulic cylinder — provides powerful and reliable lifting performance.
• Body volume: 24 m³
• Body thickness: Bottom – 4 mm | Side – 4 mm
• Material: High-strength structural steel, wear-resistant K450 grade — offering superior durability and impact resistance.

Additional Systems

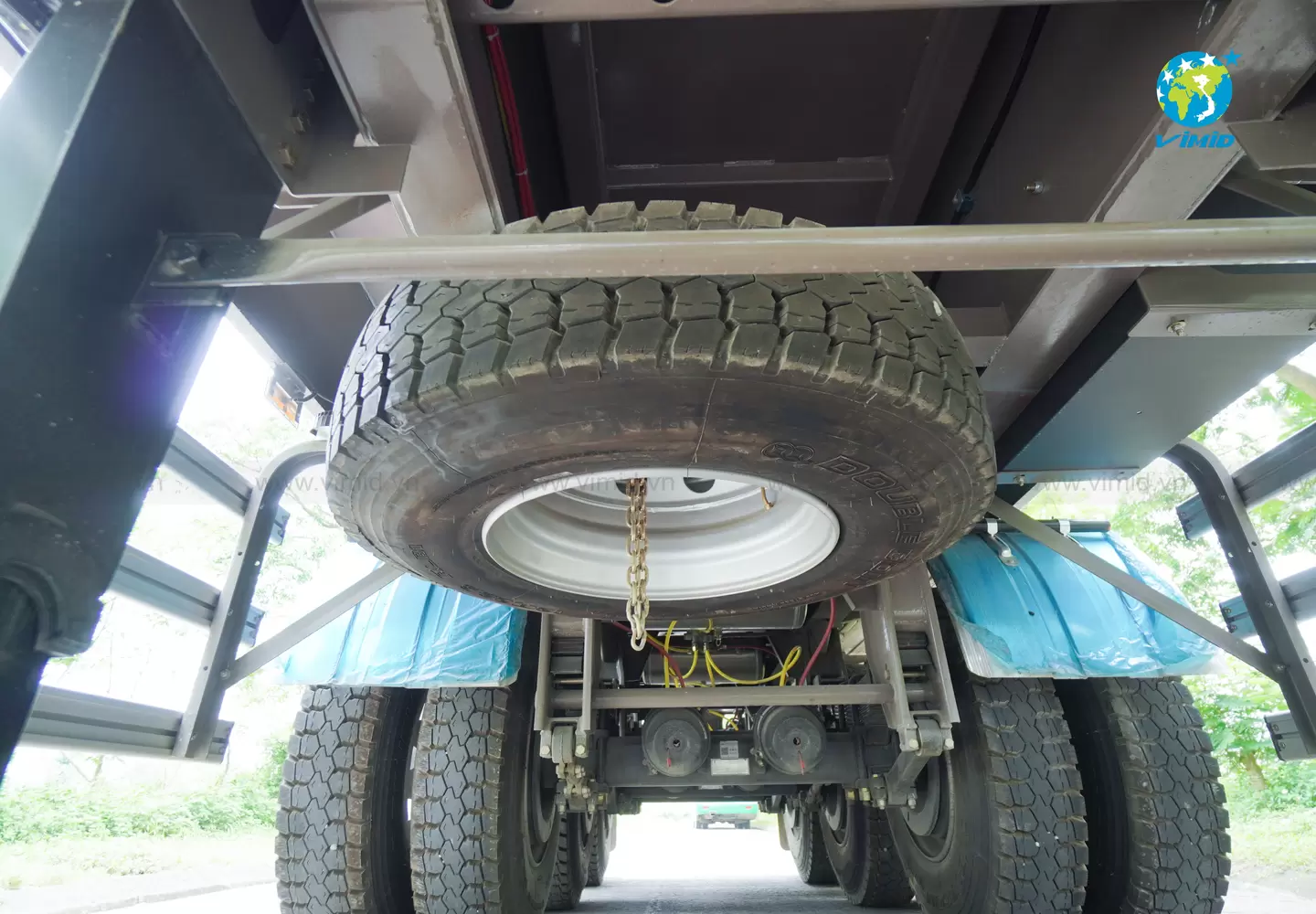

• Tires: 12R22.5 steel-belted radial tires — long-lasting and excellent in load capacity.

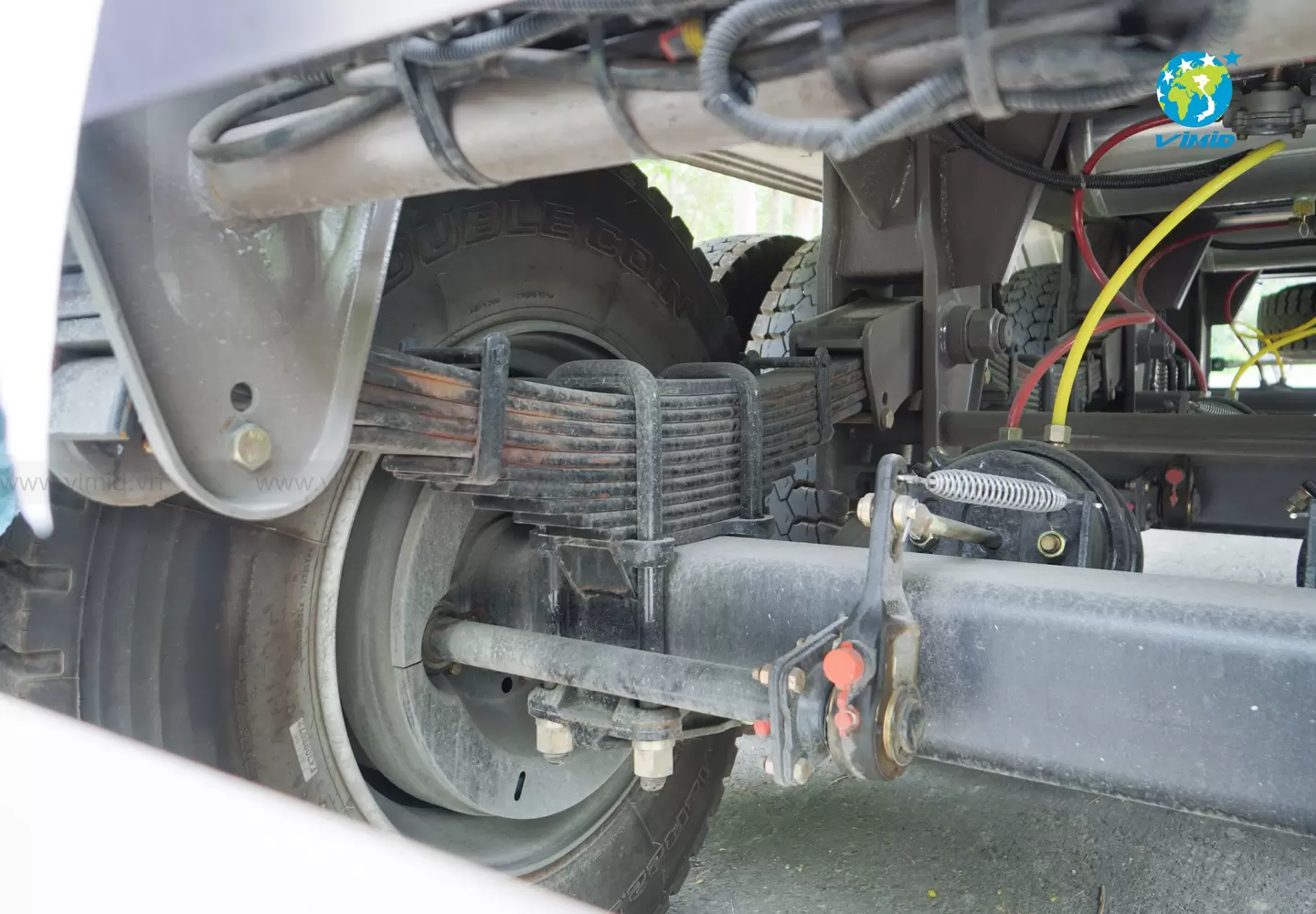

• Rear suspension: Multi-leaf spring suspension with 10 leaves per side for stability and smooth operation.

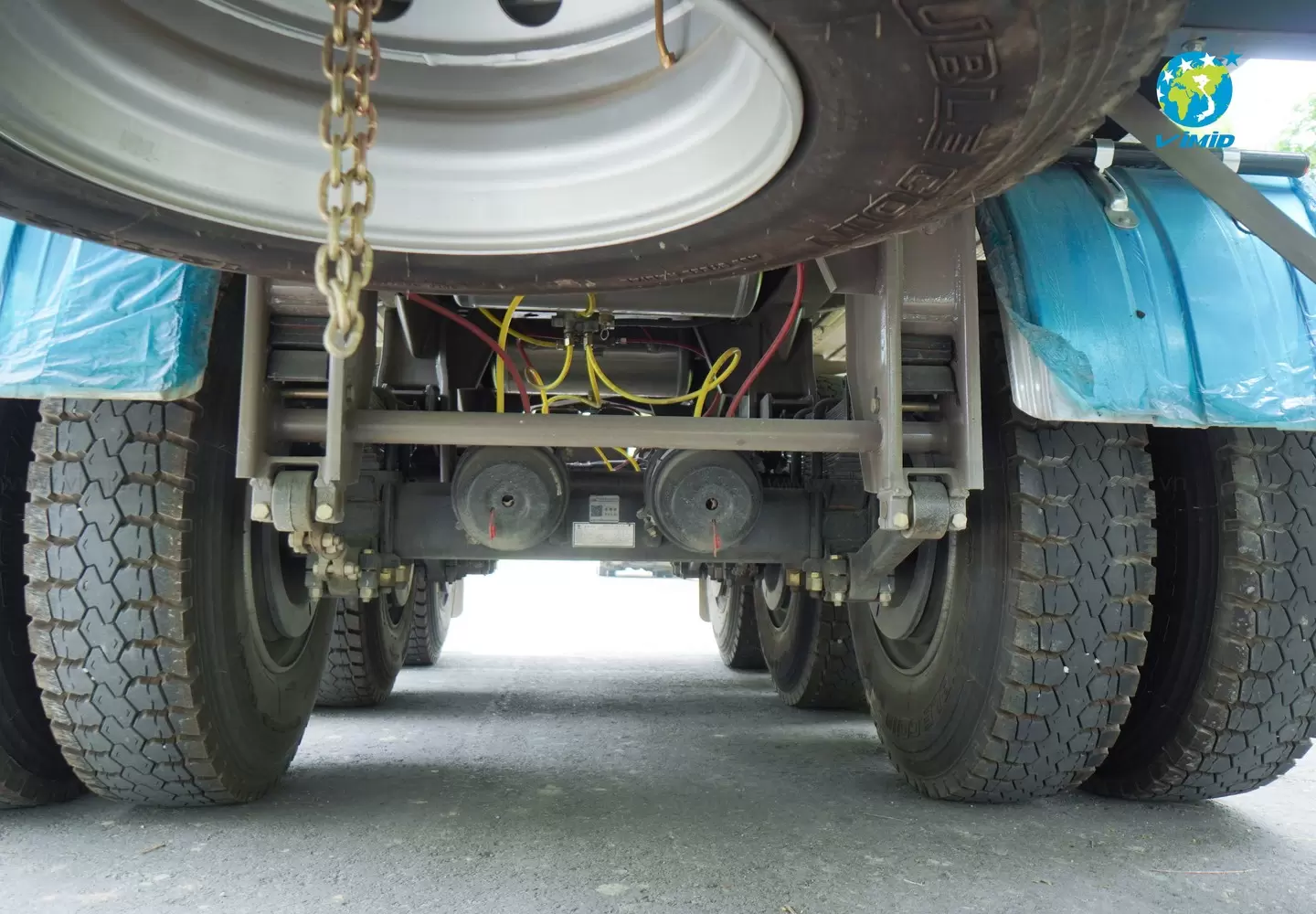

• Braking system: Air brake type, drum brakes — ensuring strong and reliable braking performance in all conditions.

Outstanding Advantages of the SUNHUNK 8T1 Dump Semi-Trailer

• Superior load capacity: The U-Shape body and reinforced chassis enable high-volume, heavy-duty transport efficiency.
• Exceptional durability: K450 wear-resistant steel ensures resistance to abrasion and impact in tough working environments.
• Stable, powerful operation: Optimized drivetrain and suspension systems deliver smooth performance across varied terrains.
• Reliable hydraulic system: The SUNHUNK HCTM 202-5 system provides fast, safe, and efficient tipping operations.
• High-quality tires: 12R22.5 radial tires enhance traction, load endurance, and overall safety.

Applications

The SUNHUNK 8.1 Tons Dump Semi-Trailer is ideal for:

• Transporting construction materials: sand, gravel, stone, cement, etc.
• Land leveling and site filling projects.
• Mining and quarry operations for soil and rock transport.
• Other heavy-duty logistics and bulk cargo applications.
