Howo NX 4×2 Cargo Truck – Pallet Container With 3 Side Doors 9.8M

The NX 4×2 Cargo truck is part of the HOWO MAN series – belonging to the HOWO N Series, it represents a significant enhancement from the previous VX model.

This model stands out with premium quality, high configuration, reliable assembly, and low maintenance needs. It is powered by a MAN-Technology MC07 engine with a lifespan of up to 1.5 million km, paired with a durable HW95508STCL gearbox, and equipped with a MAN-Technology MCJ12BG axle known for outstanding durability and load-bearing capacity. The NX truck features a reinforced chassis and robust leaf spring suspension, ensuring excellent load performance, safety, and investment efficiency.

EXTERIOR DESIGN

The NX 4×2 Cargo truck introduces a completely new appearance, featuring a redesigned front grille that’s more balanced, modern, and powerful.

The high-roof NX cabin with two bunks is crafted with precision and strength, offering a solid structure that enhances driver safety. Cabin noise is reduced by up to 20% compared to other models in the same segment.

• Lighting system: Combines Halogen, Xenon projector, and LED daytime running lights, providing longer lifespan, better illumination, and reduced energy consumption.
• Front bumper: Redesigned for a more harmonious and balanced look with the cabin.
• Rear-view mirrors: Large mirrors with wide visibility angles; 4-way electrically adjustable and equipped with a heating function for safe operation in all conditions.
• Steps: Three ergonomically designed steps with high-grade anti-slip stainless steel plating for safe and convenient access.
• Suspension system: Equipped with four large air suspension bags (2 front, 2 rear) for smoother and more comfortable driving.
• Electric cabin lifting system: A new feature that enhances convenience for inspection, maintenance, and repair.

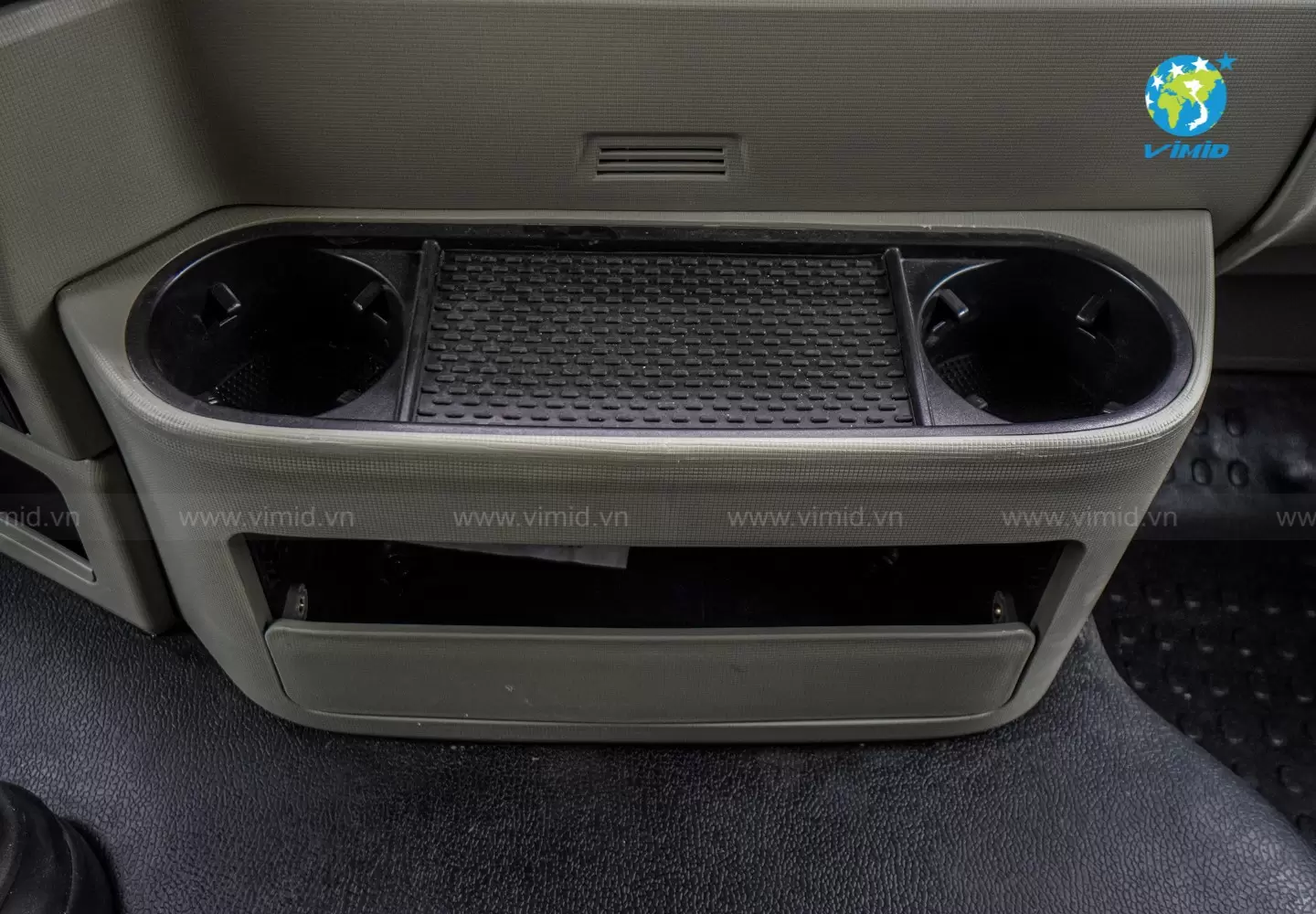

INTERIOR DESIGN

Designed by European TGA engineers, built to MAN Germany standards and technology, shared across HOWO MAN VX/T5G/TX models.

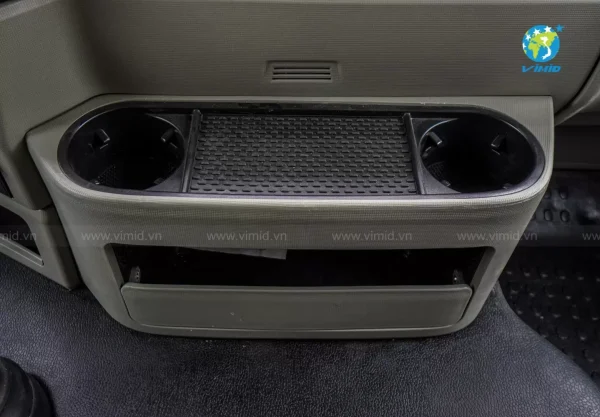

Spacious cabin with a refined gray-gold tone and upgraded seat materials, beds, and dashboard design, enhancing comfort and aesthetics.

Advanced features: Exhaust brake, Cruise Control, Smart Key, USB port, automatic air conditioning, auto headlight system, air suspension seat with multiple adjustments, and a 4-direction camera display on the entertainment screen.

• Four-spoke steering wheel with a modern design and a polished CNHTC triangle logo.
• Right-hand stalk: Exhaust brake and Cruise Control switch.
• Left-hand stalk: Controls for lights, air horn, high beam flash, and wipers.
• Dashboard: Smartly organized two-tier layout with durable hard plastic materials for better longevity.

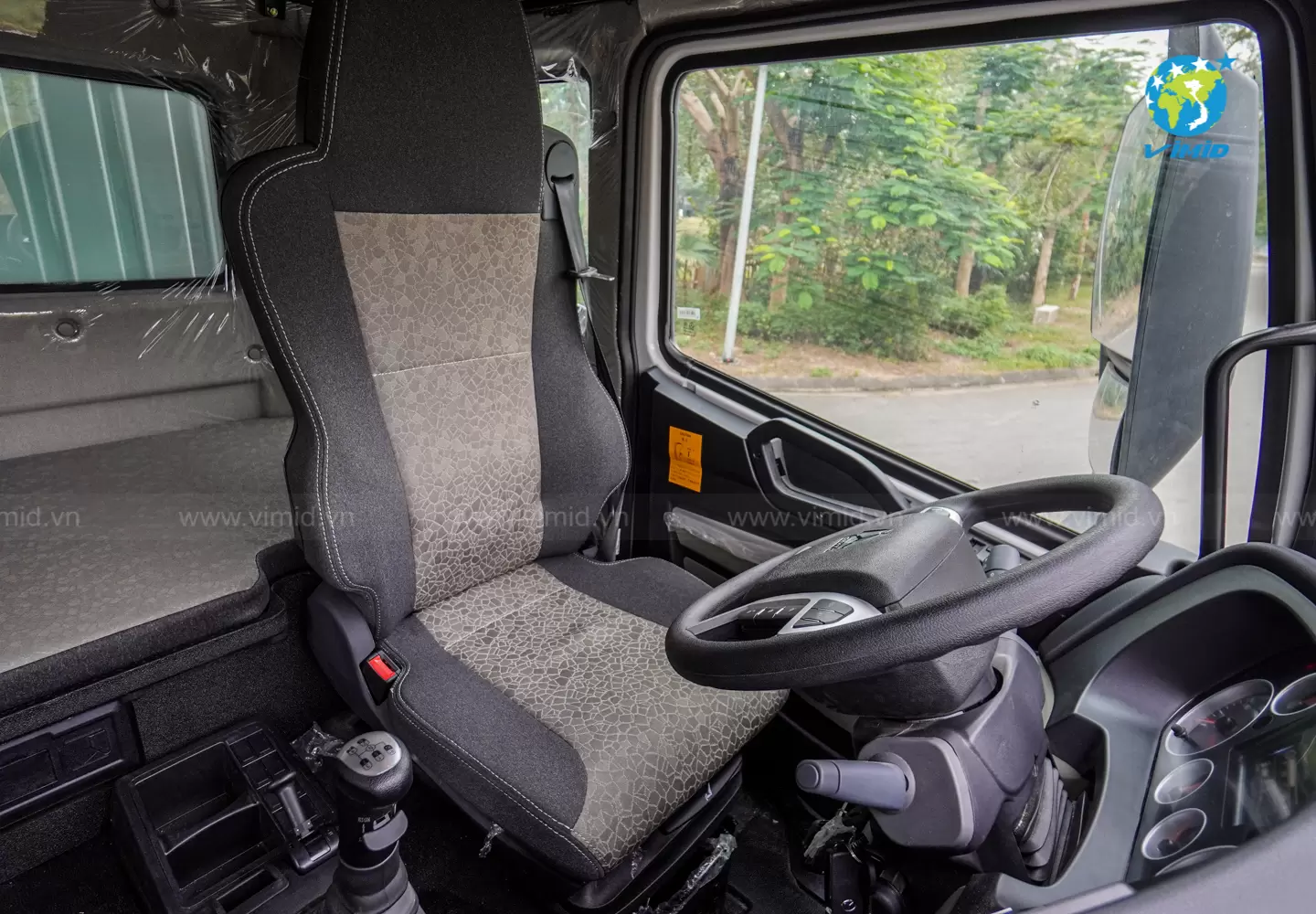

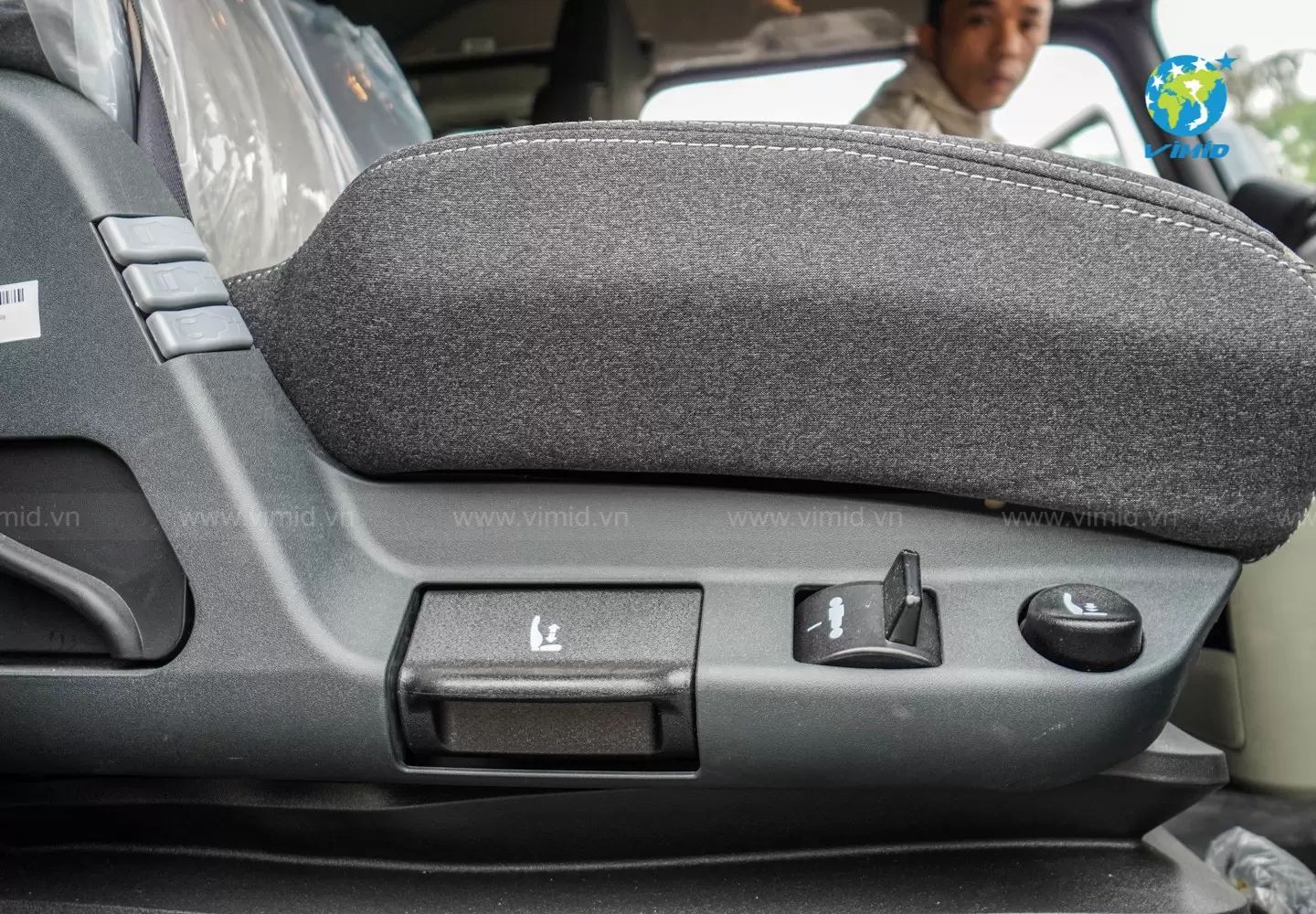

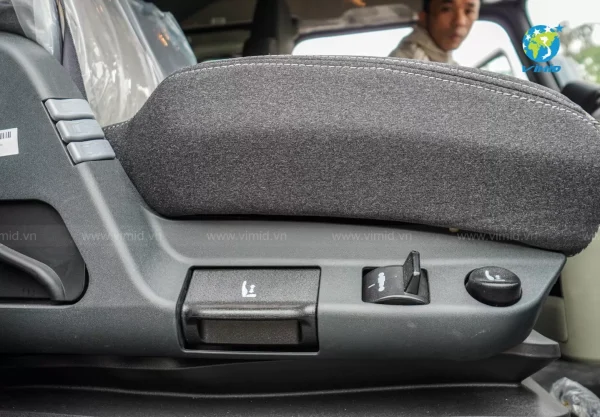

• Driver’s seat: Air suspension seat with adjustable lumbar air cushions for spine support and improved comfort on long drives.

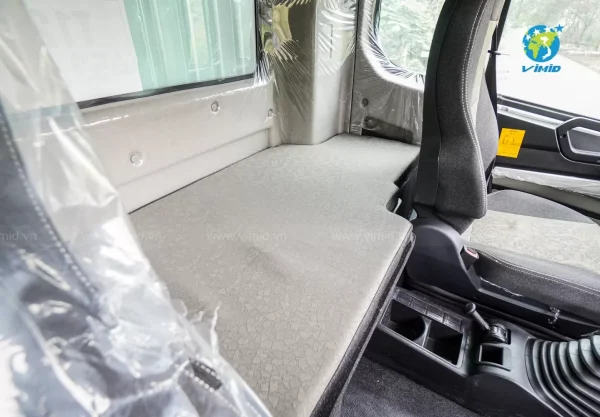

• Cabin: High-roof cabin with two bunks, and lightweight materials that reduce operational noise.

POWERTRAIN AND TRANSMISSION

• Output: 240Hp with maximum torque of 925 N.m
• Extended service intervals
• Fuel consumption reduced by up to 9%
• MAN technology engine and BOSCH electrical system (Germany) for superior reliability.
• Engine lifespan: Up to 1.5 million km (B10 standard)
• Safety: Equipped with EVB valve and engine brake system.

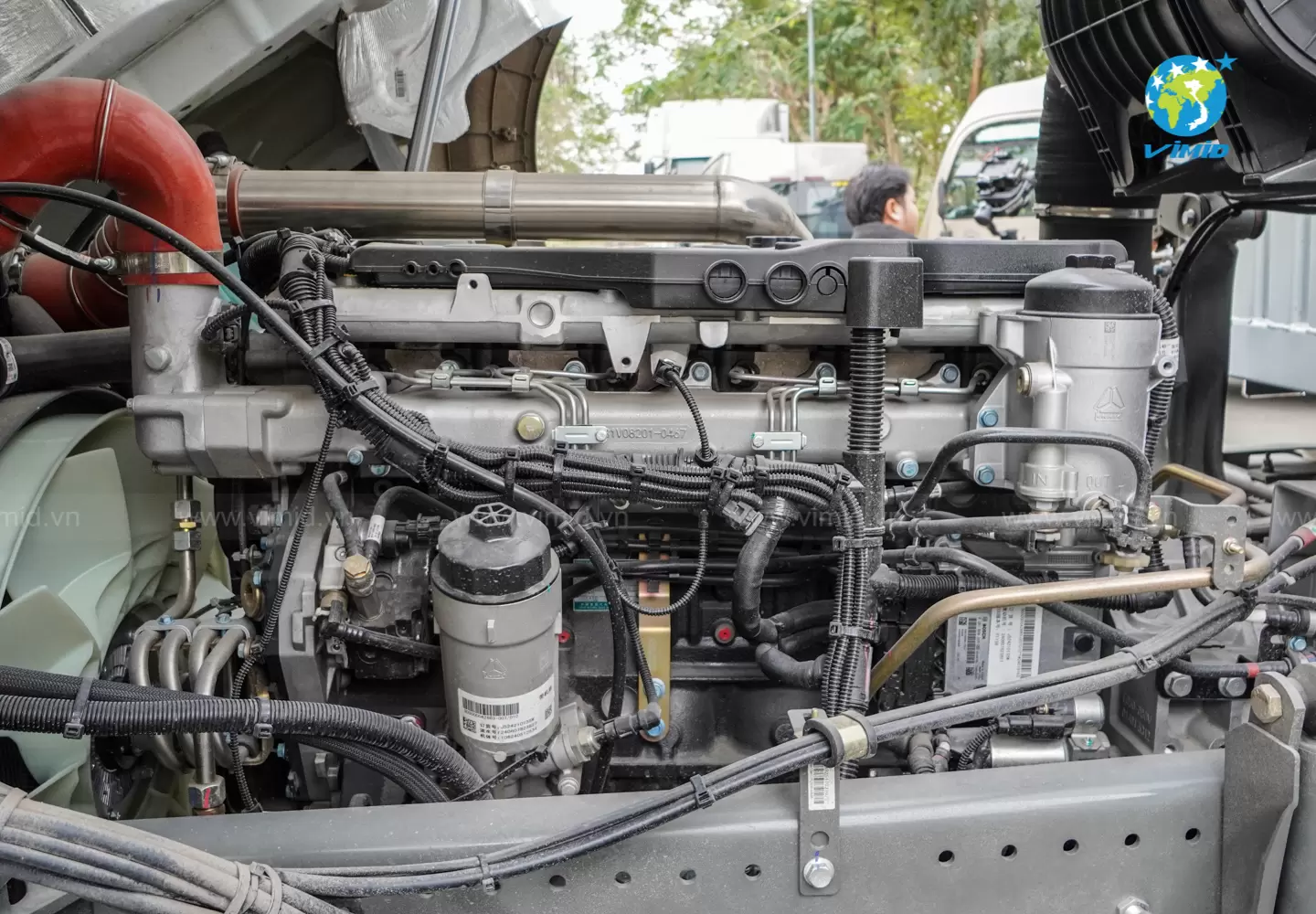

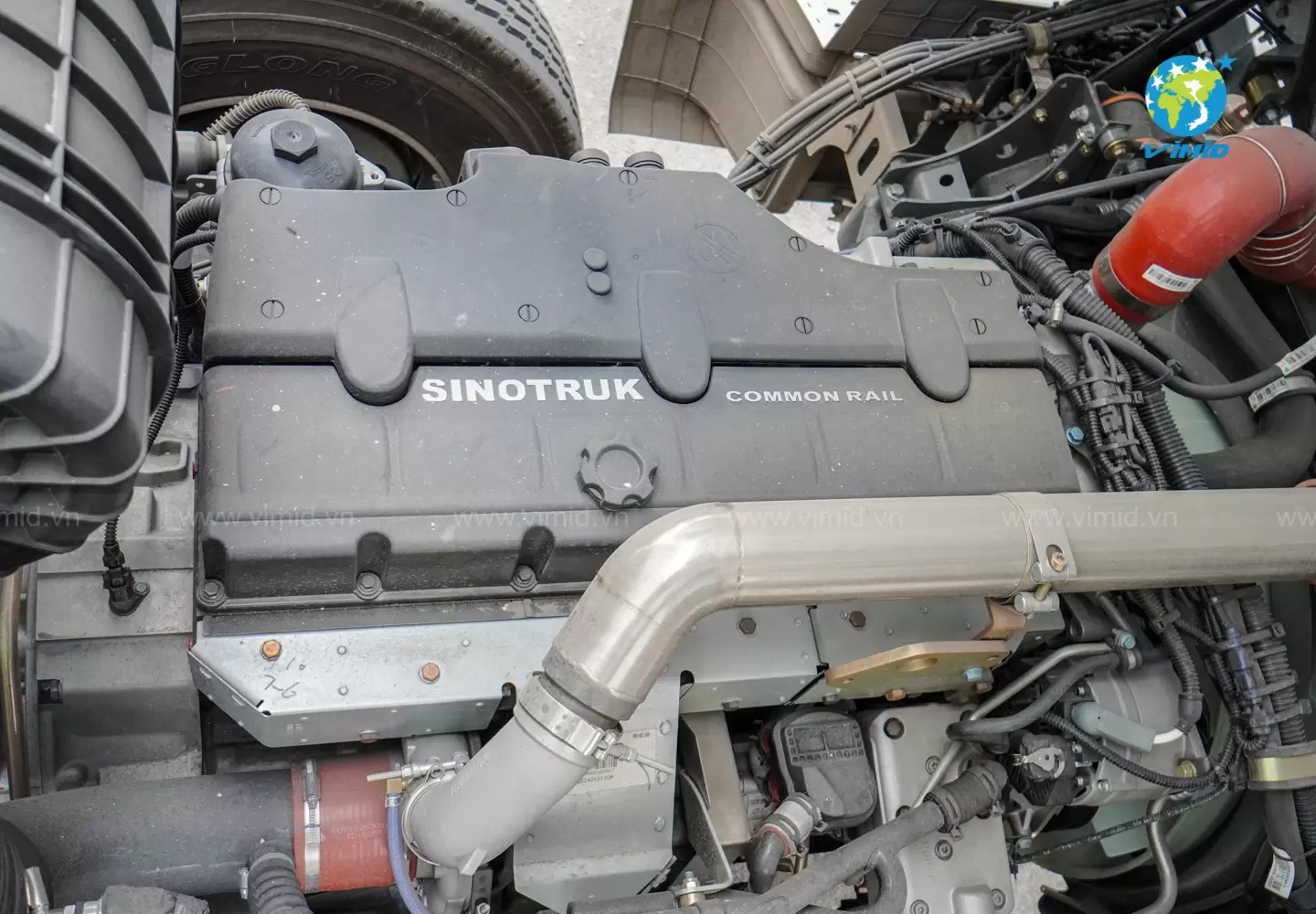

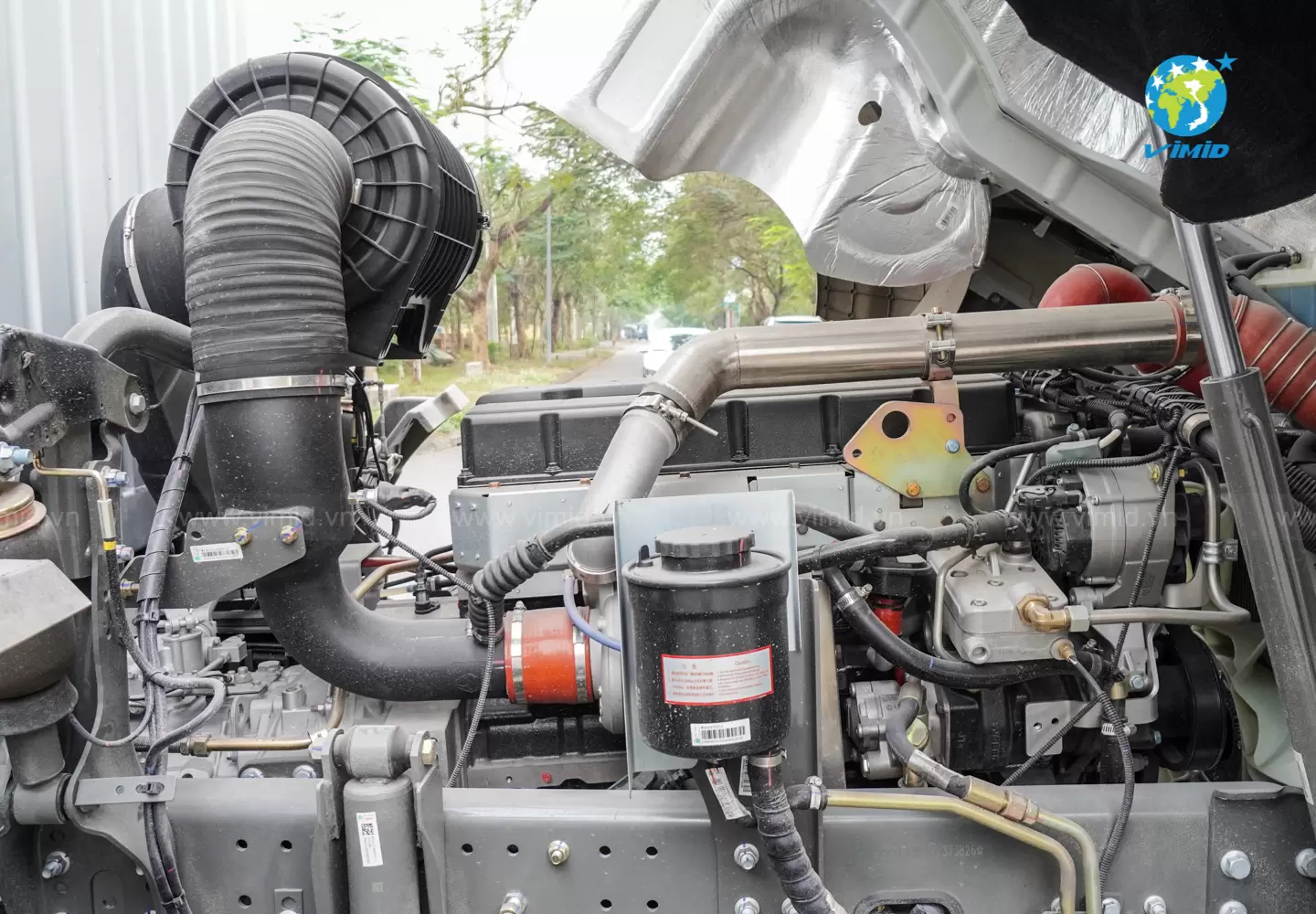

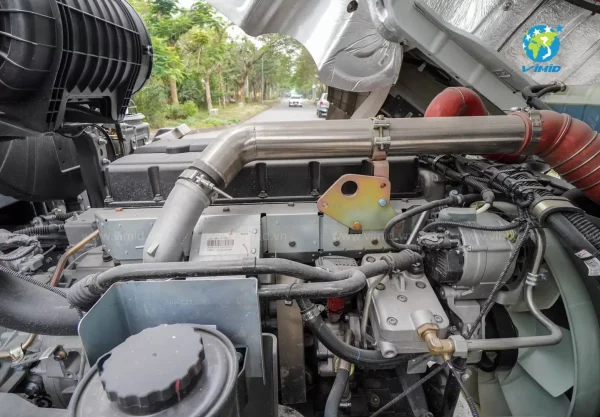

Engine Specifications:

• Model: MC07.24-50
• Displacement: 6870 cm³
• Power: 176 kW / 240 HP @ 2300 rpm
• Max Torque: 925 N.m @ 1200–1800 rpm
• Emission Standard: Euro 5 (SCR system)
• Urea Tank Capacity: 35 liters

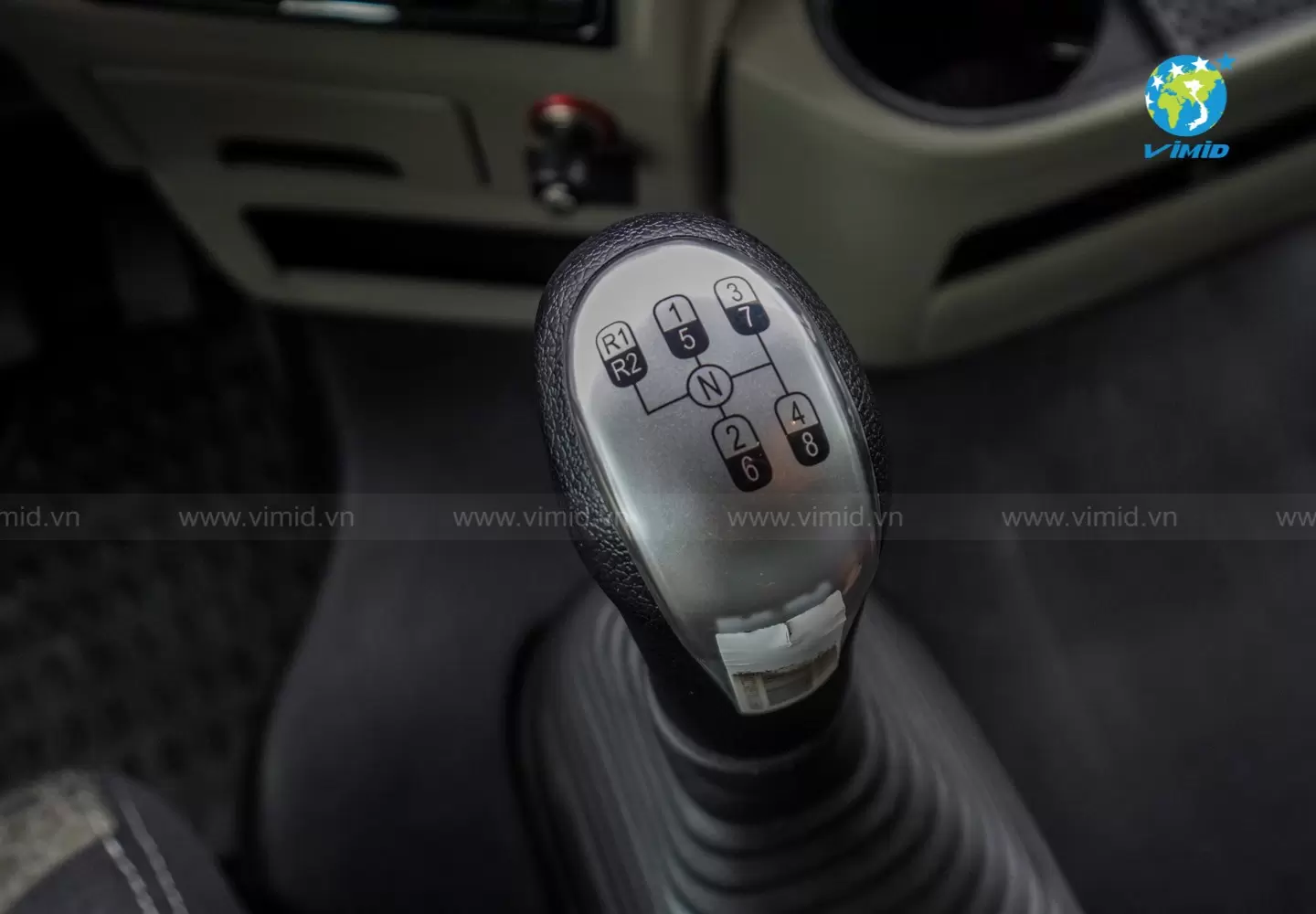

Gearbox: HW95508STCL

• Model: HW95508STCL
• Type: 8 forward / 2 reverse gears
• Torque: 950 N.m
• Material: Cast Iron
• Torque capacity up to 950 N.m, ensuring excellent stability and durability.
• Equipped with a split-range shifter, making gear shifting smooth and effortless.
• Fast transmission with dual auxiliary shafts and synchronizers for greater efficiency.

Axles:

• Front axle (MAN standard – Germany): HF VGD60, load capacity 6 tons
• Rear axle: MAN-technology MCJ12BG, load capacity 12 tons

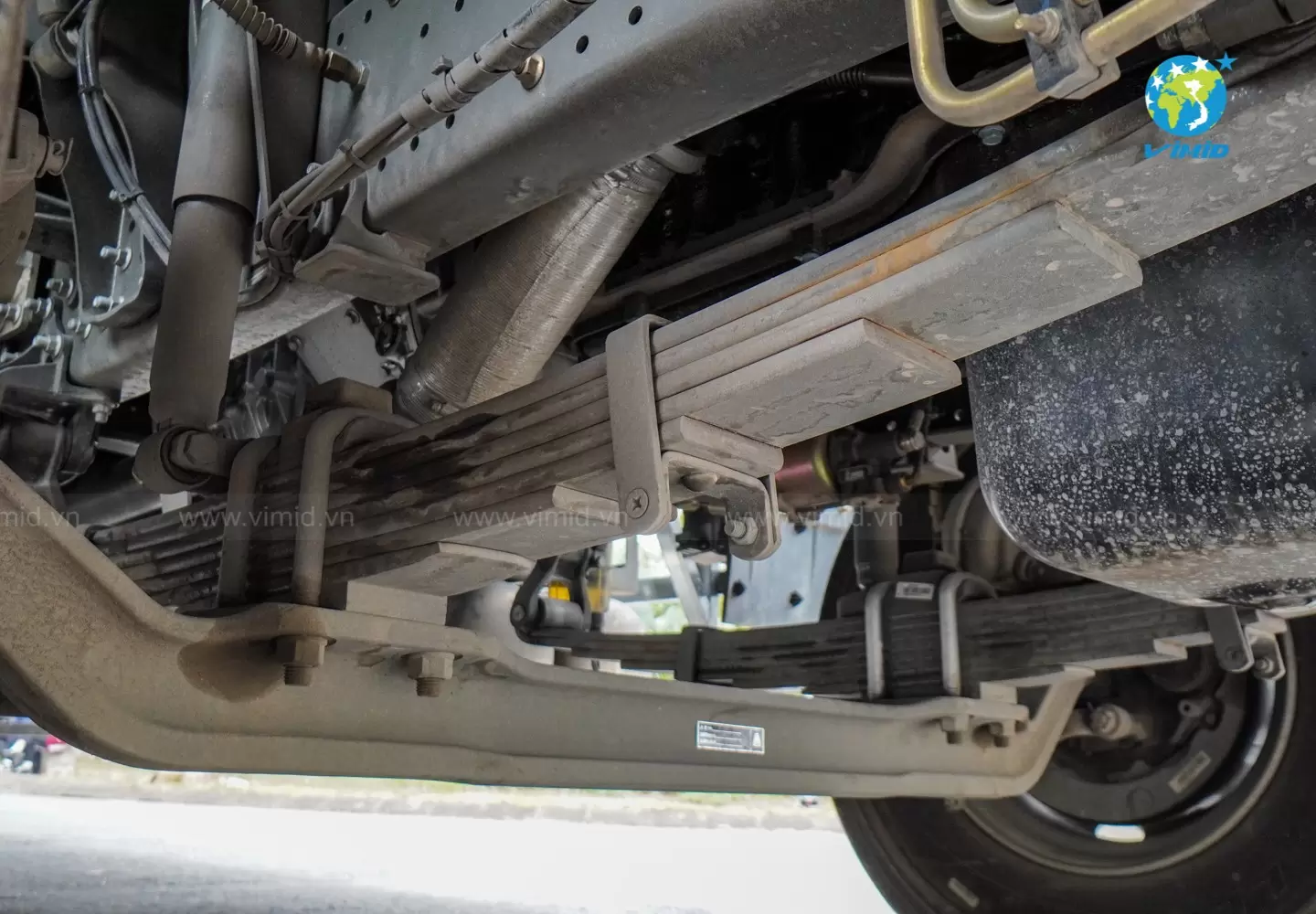

Suspension system

• Leaf spring suspension for high load capacity and stability.
• Front: 7-leaf spring with hydraulic shock absorbers.
• Rear: 2-stage leaf spring (7 + 3 leaves)

PALLET CONTAINER BODY

• Pallet body (3 compartments) for transporting electronic components.
• External dimensions: 12150 x 2500 x 4000 (mm)
• Internal dimensions: 9800 x 2430 x 2580 (mm)

Additional Features

• Anti-rust aluminum alloy fuel tank: Capacity 300 liters
• Tires: 11R22.5 all-steel radial.

The HOWO NX 4×2 Cargo Truck – Pallet Container With 3 Side Doors 9.8M is the ultimate combination of power, durability, and comfort—a superior choice for businesses seeking efficiency, safety, and long-term value in freight transportation.
