MAX 400 8×4 Box Truck with 9.7M Cover Frame

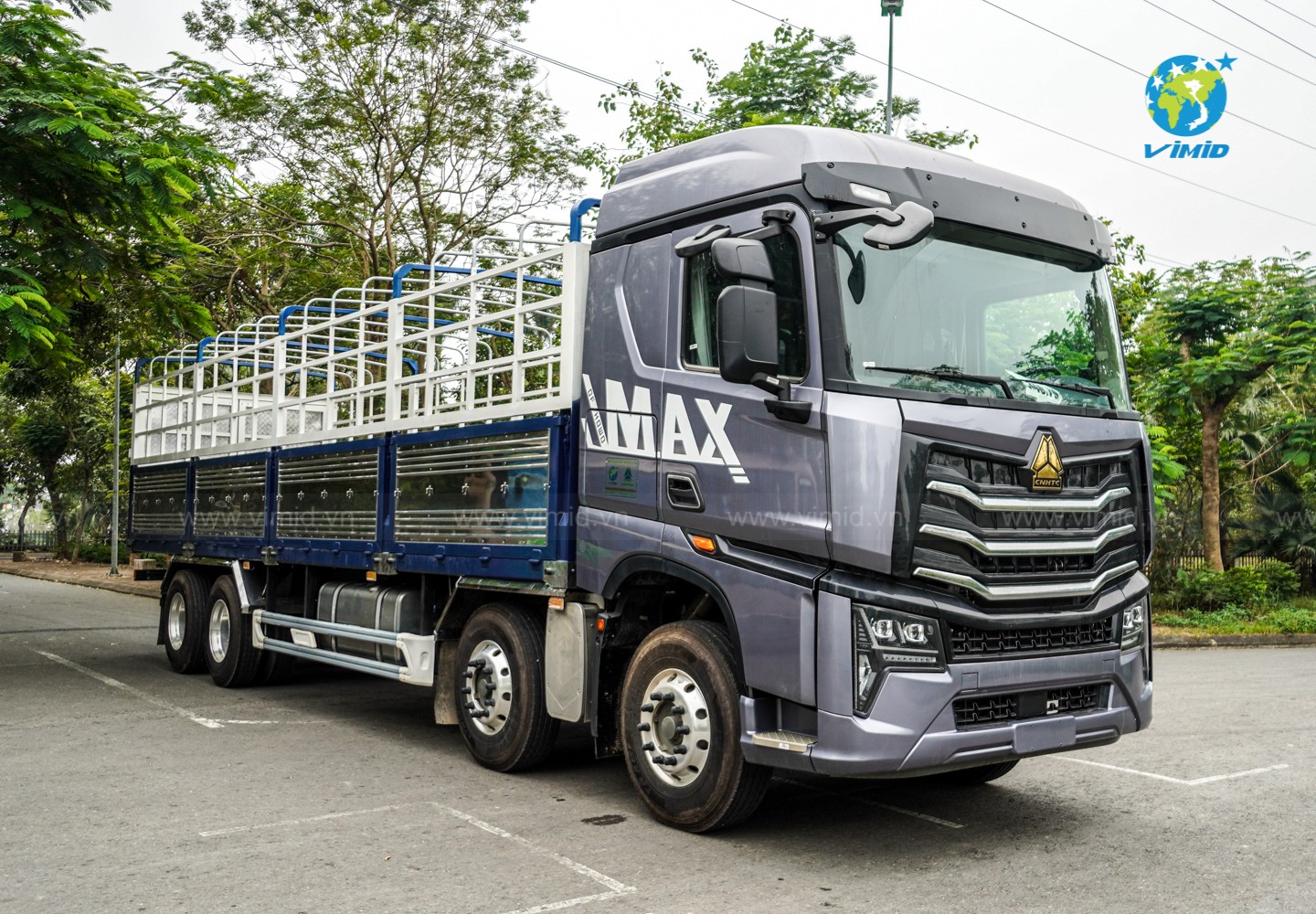

MAX 400 8×4 9.7M roof frame truck exterior

MAX trucks are developed by SINOTRUK based on European design standards and have a typical Chinese style, the radiator grille of the vehicle is inspired by the design of the Great Wall, a famous landmark in China.

MAX trucks are a clever, unique combination of classic and modern. With the idea of ​​incorporating Chinese style elements into the design, viewers will easily associate the appearance of the MAX truck with the armor of a general, or a powerful chariot rushing into battle.

Perfect aerodynamic design: tapered shape, smooth top cover design, curved windshield, air intake grilles on both sides, etc. Low drag coefficient of up to 0.49, compared to 0.52 of competing products and MAX fuel economy improved by at least 2%

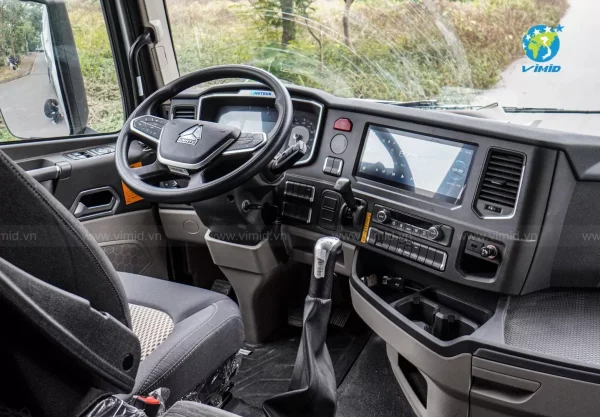

Luxurious interior

European-style flat floor design: cabin height 1950mm, moving in a spacious and comfortable cabin. Not only that, the control panel and advanced features are scientifically arranged for the driver to operate most easily.

Safety and reliability: The car has completed three collision tests in 3 different conditions: High temperature conditions, highland conditions, high humidity and cold conditions. All of which demonstrate the adaptability of the oil product in all areas with harsh and dangerous conditions.

Convenience:

* The front light cluster is a modern, high-end Full LED light and Bixenon light, providing super high light intensity to help drivers operate more safely at night.

*The unique rearview mirror design based on the wide Scania style ensures the vehicle operates in many different conditions and viewing angles. 4-way electric mirror system, especially with mirror heating function.

* Equipped with many smart and safe features to support users such as:

+ Multi-function steering wheel

+ Smartkey smart key

+ Cabin with 4 large air bulbs 140mm

+ Electric lift cabin

+ One-touch electric glass lift

+ Mirror and glass heating, 4-way electric mirror.

+ 12.3 inch touch screen

+ Wifi Bluetooth, Mp3, Mp4, FM music player, hands-free calling, carbit link connection

+ Cuppo brake, Cruise control, automatic fuel pump

+ Power source 220V-1500W.

+ Bed size up to 900mm.

* Anti-slip step design, convenient to get on and off

* Comfortable driver’s seat, full function, air cushions support the spine, protect the driver’s health, the highest quality driver’s seat for the best driving experience. 2 spacious beds, anti-odor material, easy to clean, safe for health. The driver’s seat can be adjusted in many directions and has seat cooling.

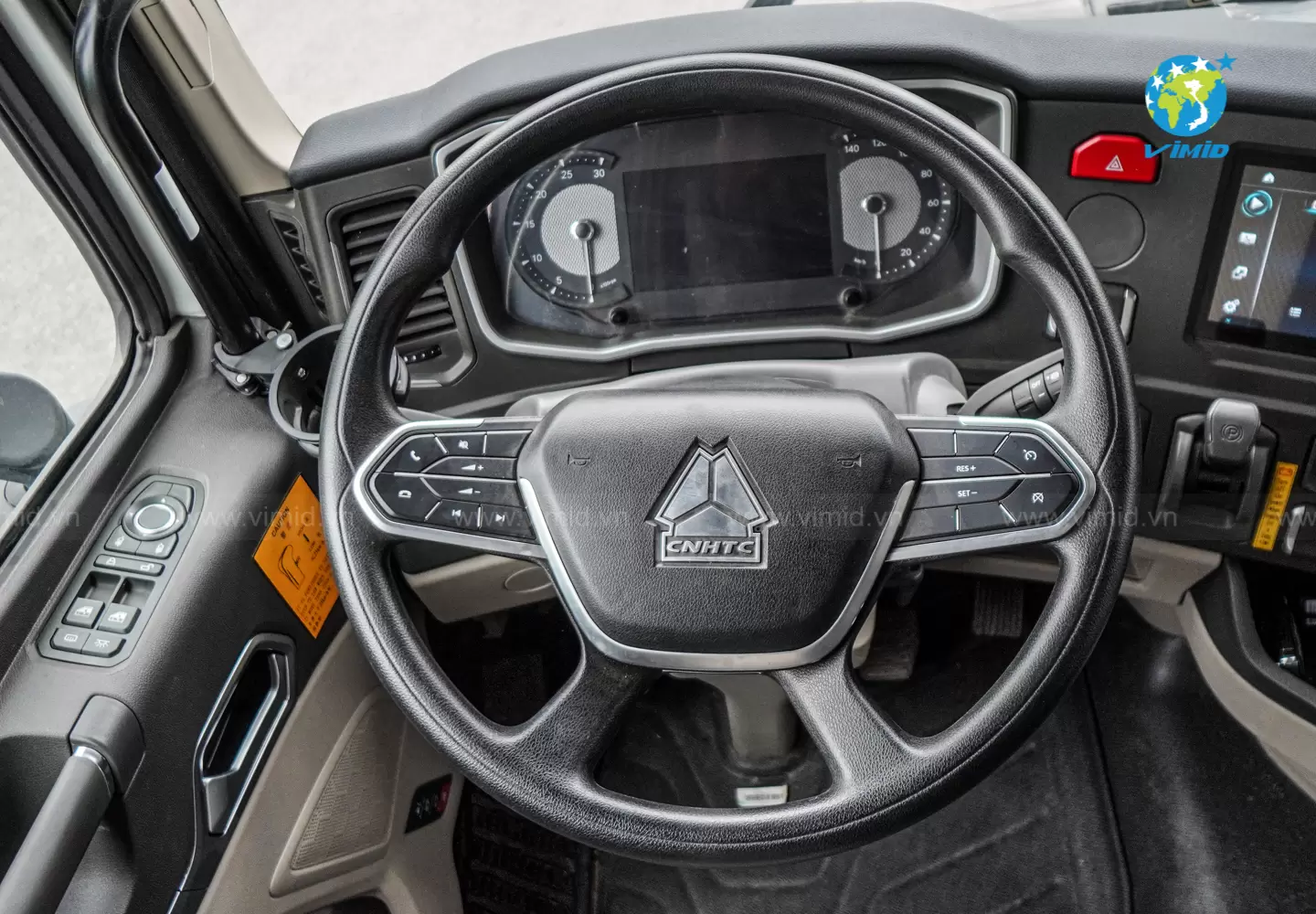

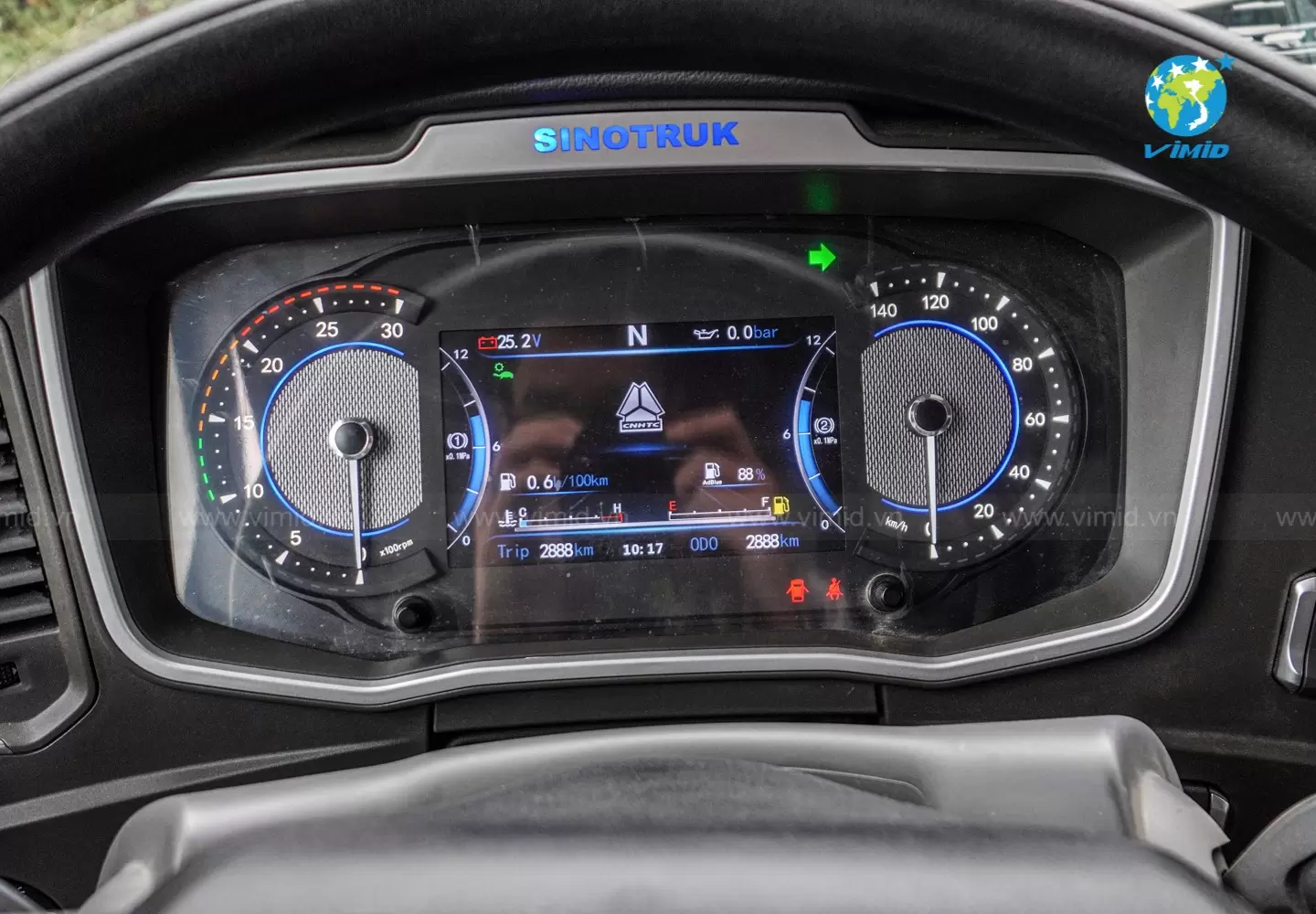

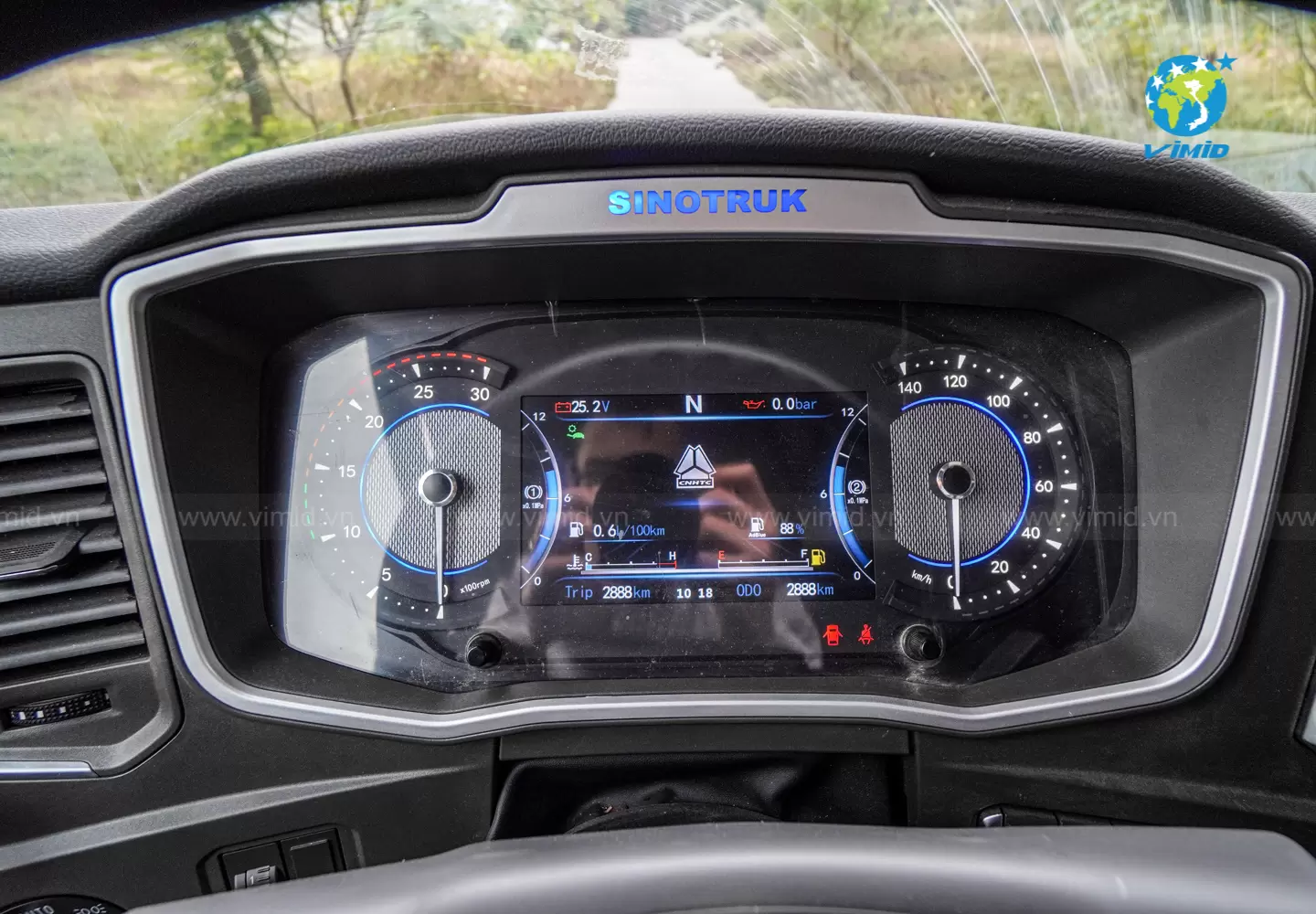

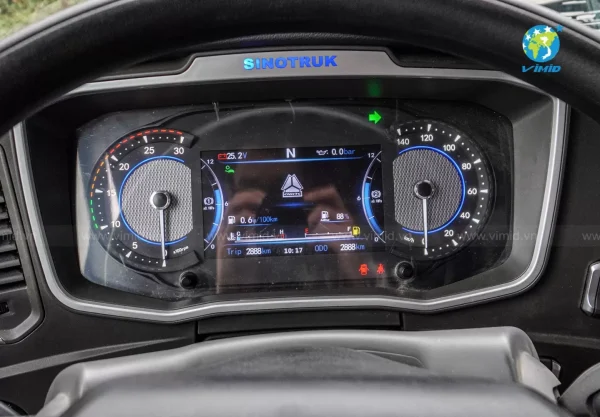

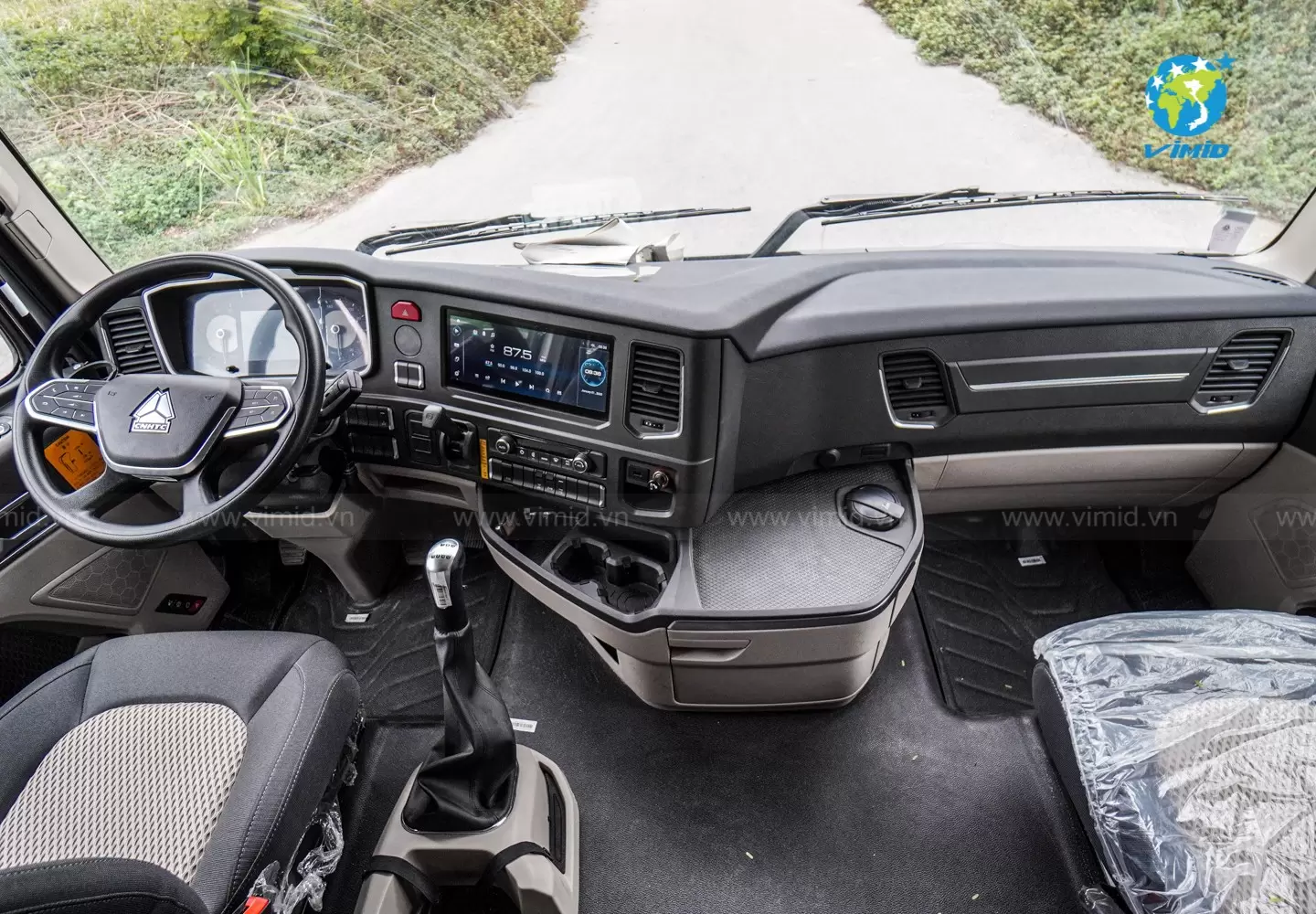

* Modern dashboard, smart display, anti-glare at night and good display during the day, intuitive design, easy control with multi-function steering wheel.

Engine and transmission coordination

Man MC11.40-50 Technology Engine, manufactured at the MAN Germany joint venture factory, creates top quality and class for the engine. Using the latest and most advanced technologies. The engine meets B10 standards with a lifespan of 1.8 million Km before needing a major overhaul, much larger capacity than competing products and enough energy reserve to start, accelerate, overtake and climb hills.

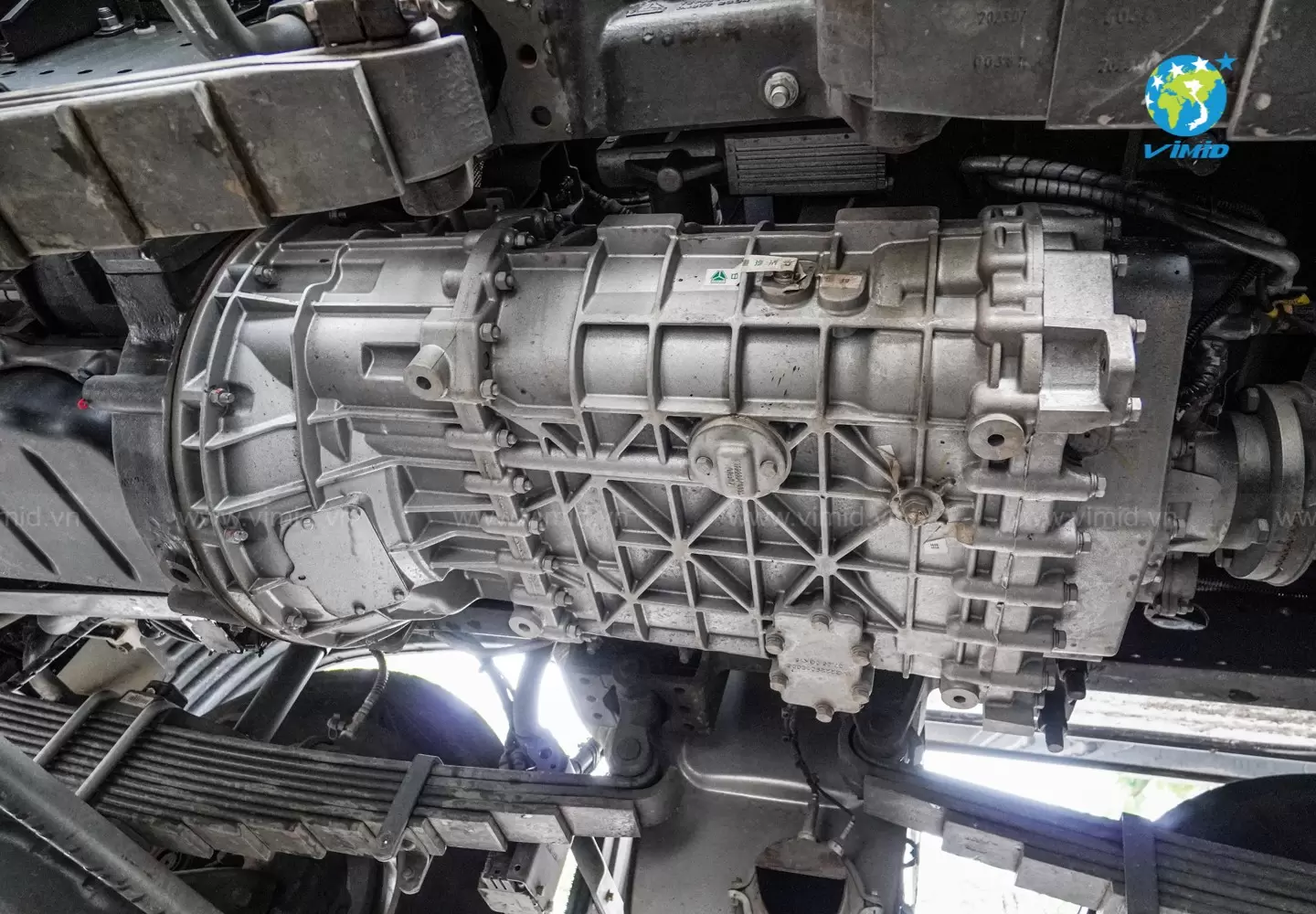

HW25712XSTL gearbox with high load torque, up to 2500Nm. The gearbox is carefully researched and refined, helping the vehicle to withstand heavy loads well. The gearbox uses 2 auxiliary shafts, has synchronizer, synchronizer uses ZF technology for smooth gear shifting, high stability, maintenance cycle up to 80,000km.

Front axle: Latest MAN technology

The latest unique German MAN axle of China National Heavy Duty Truck applies synchronization technology and European quality control standards with a load capacity of 7.1 tons

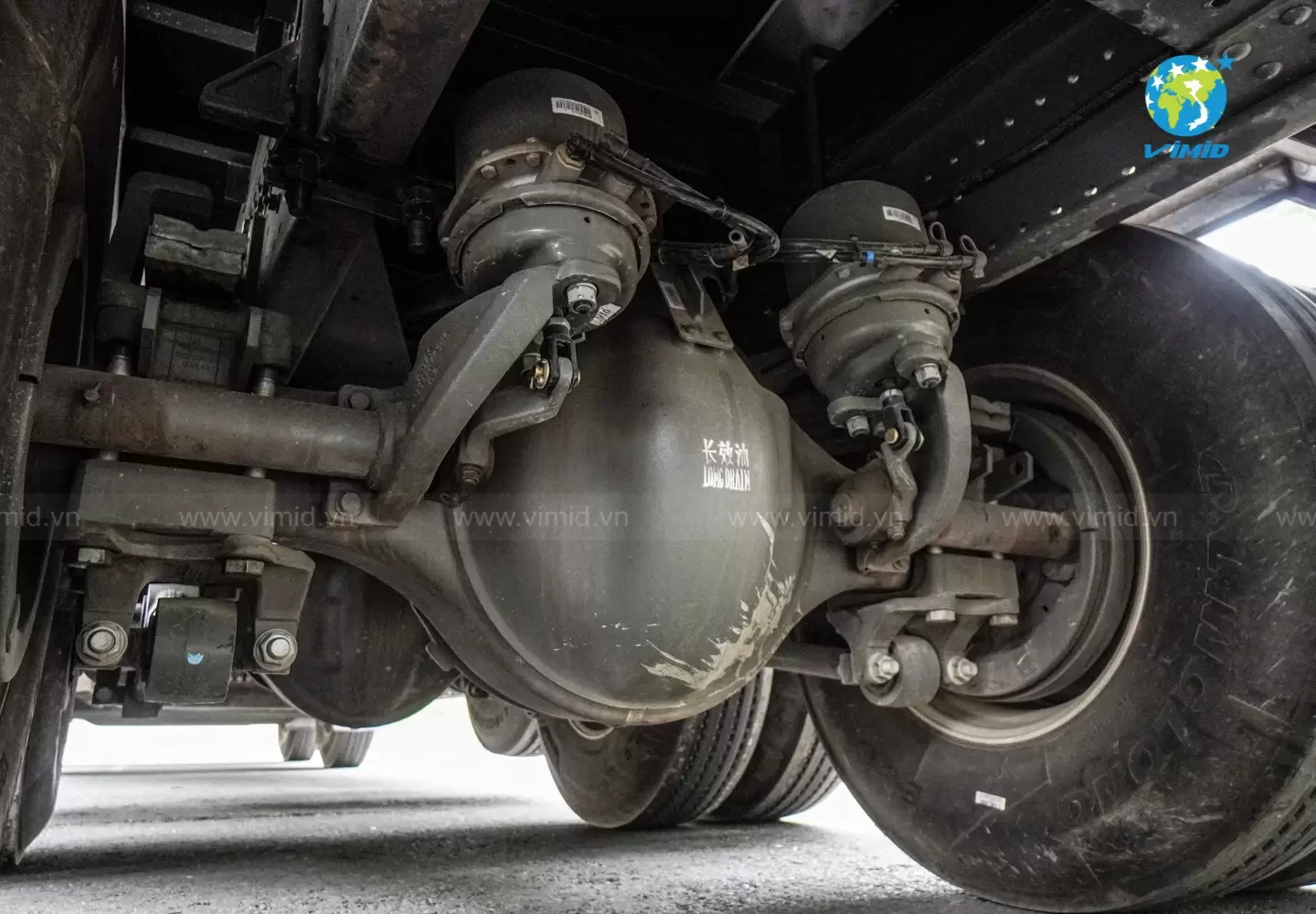

Rear axle: German MAN technology drive axle MCJ13JGY (13 tons)

Exclusively for China National Heavy Duty Truck, applying European quality control standards and synchronization technology. With transmission by various advanced gear systems to reduce energy transmission loss and high transmission efficiency up to 98.6%, Long oil change period up to 80,000 km.

Strong carrying capacity, low failure rate and less maintenance; high transmission efficiency, more fuel saving and lower usage cost.

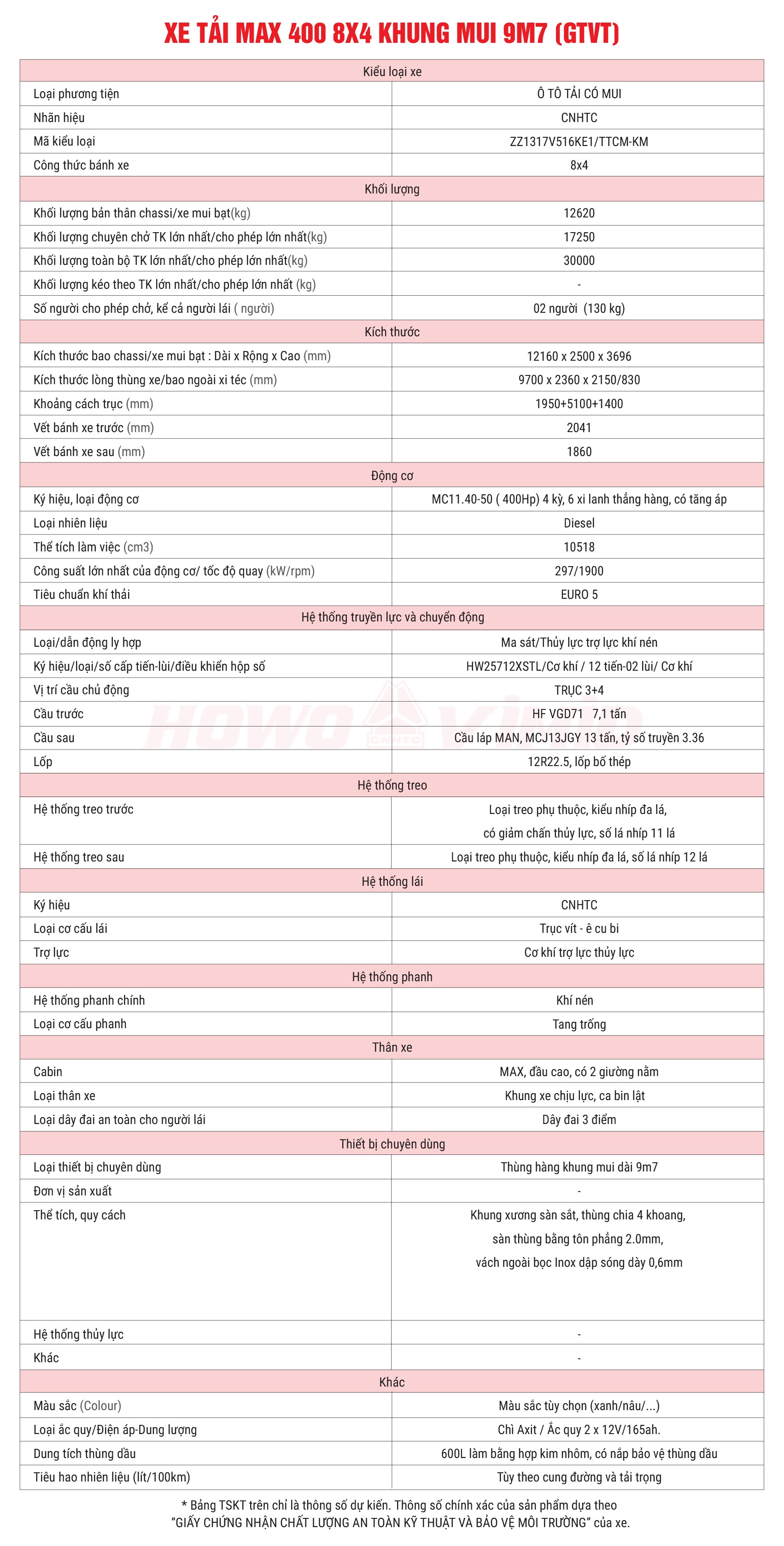

Cargo box specifications
Cargo box size: 9.7m long frame box

Outside dimensions: (length x width x height) 12160x2500x3696 (mm)

Body size: 9700x2360x830/2150 (mm)

Iron floor frame

Body divided into 4 compartments

Body floor made of 2.0mm flat iron

Outside covered with 0.6mm thick corrugated stainless steel

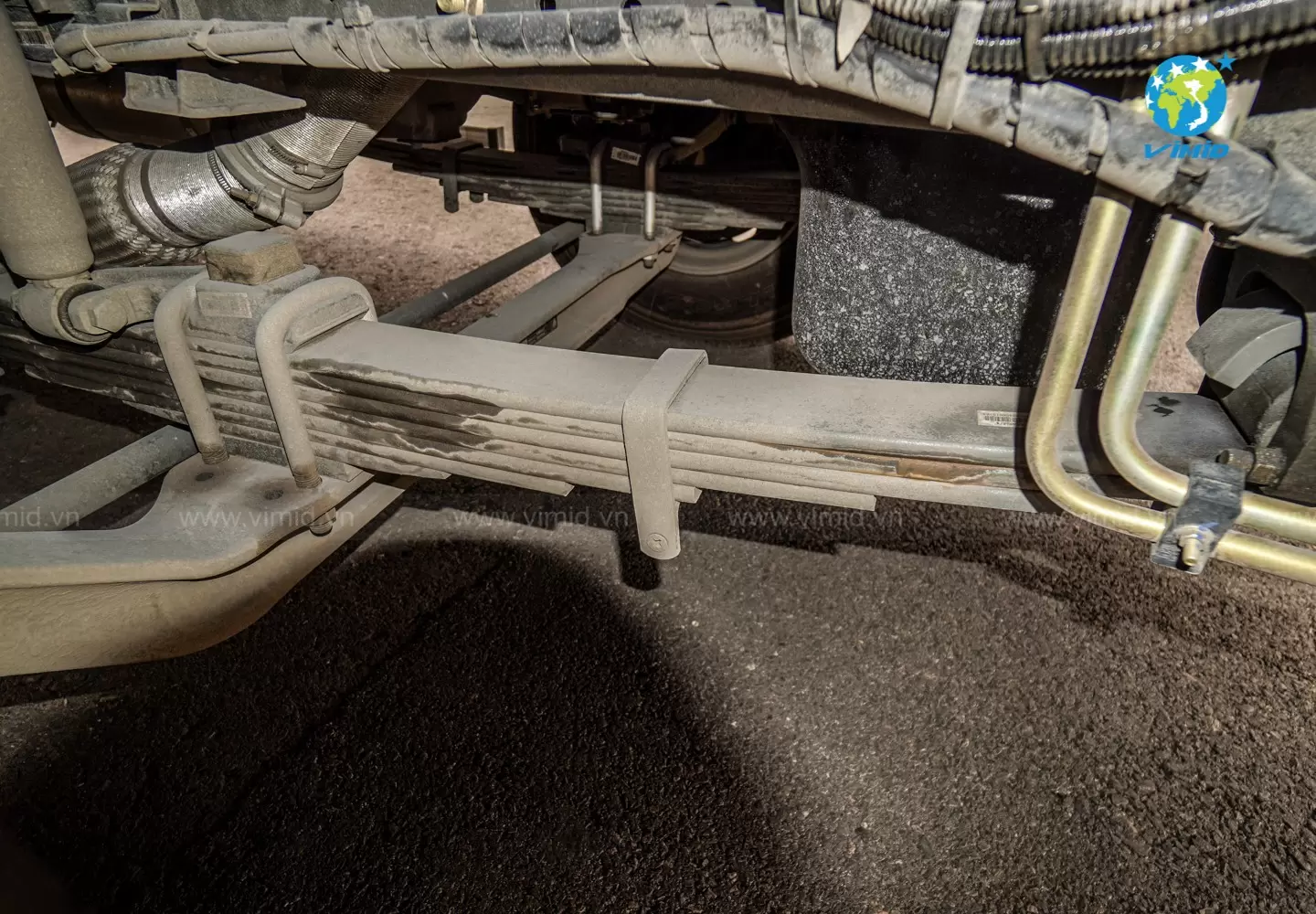

Chassis

MAN TGA technology chassis, light weight, high durability and large load capacity.

With the above advantages, the vehicle is calculated at a fuel level of about 27-29 liters/100km for fully loaded vehicles, the best traction in the segment.
