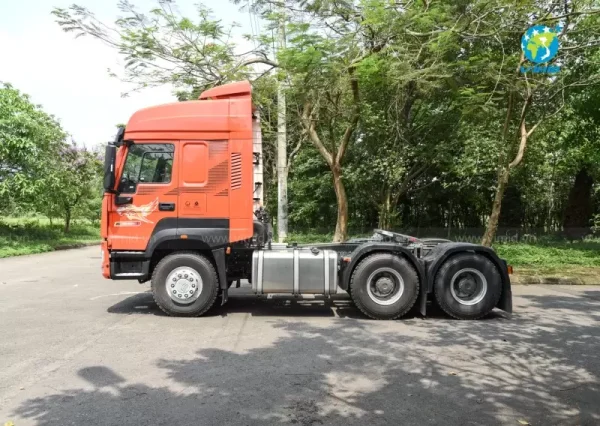

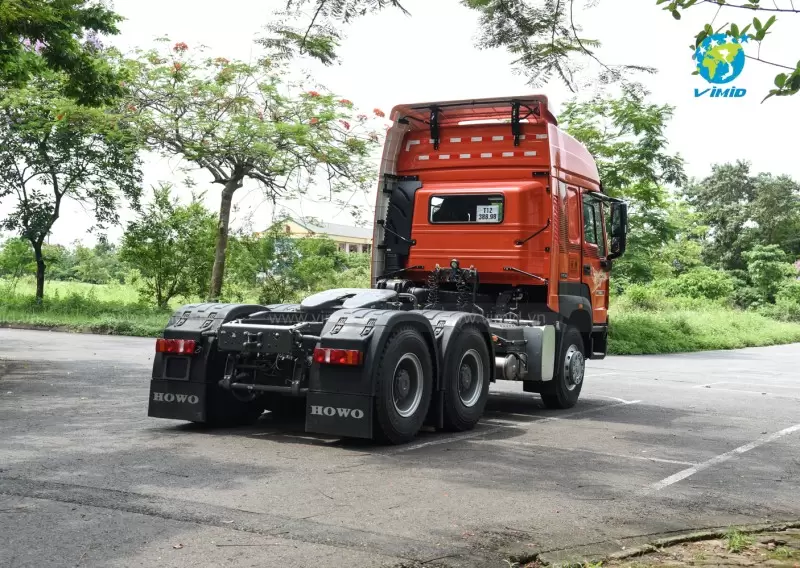

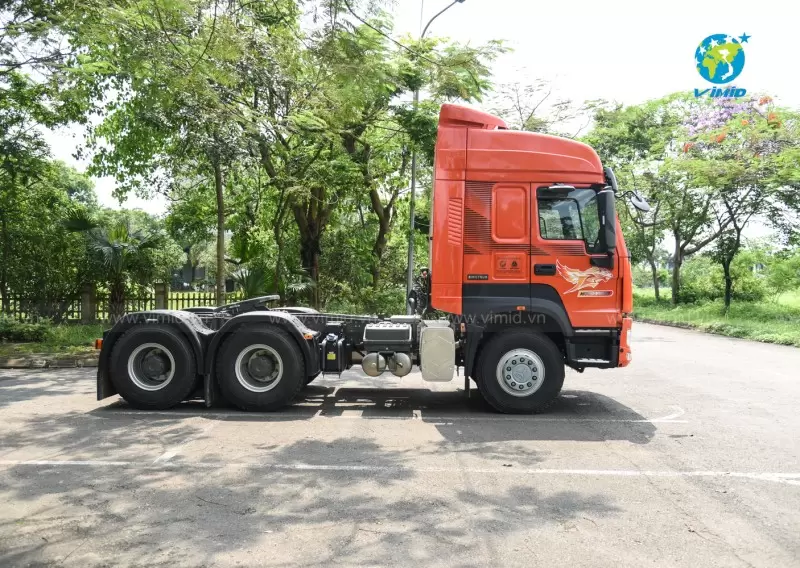

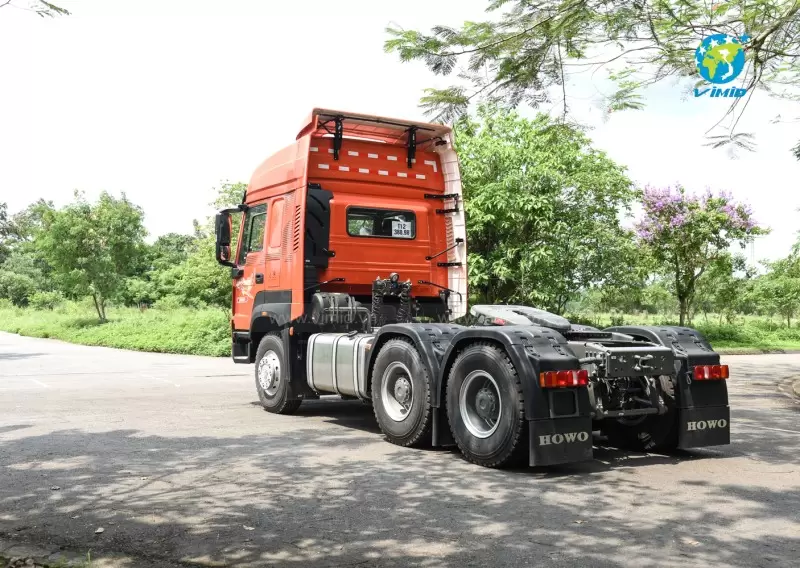

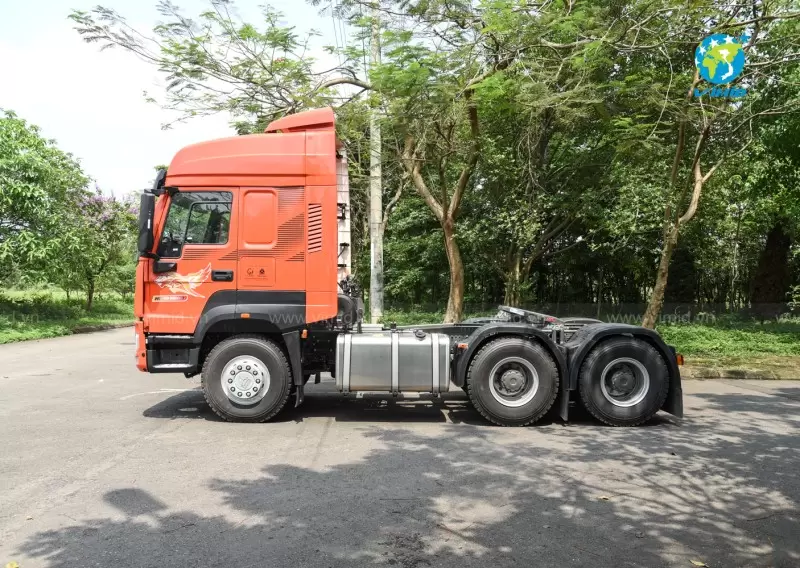

Howo V7-X 440HP Tractor – Hub Reduction Rear Axle

EXTORIOR DESIGN

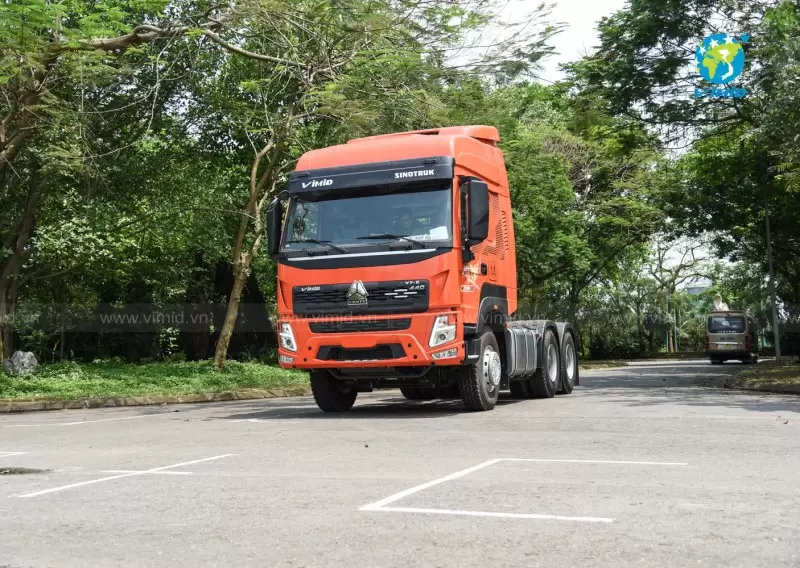

The V7X 440HP Tractor features an all-new exterior design with a Volvo-inspired grille, bumper, and lighting cluster, along with a completely upgraded cabin interior.

• The high-roof cabin with bunks is engineered under MAN-Germany standards and technology, offering solid structure, exceptional durability, and superior safety for drivers during operation.
• Its Volvo-style wide-angle visibility provides an impressive blind-spot distance of only 3.6 meters from the driver’s seat.
• The independent headlamps and fog lights system adopts a newly sculpted hawk-eye Y-shaped LED design, with enhanced brightness and day-time running light function for improved driving safety.
• The front grille trim takes inspiration from a “brooch” design, delivering a refined and elegant look.
• The larger and more robust bumper enhances the truck’s overall strong appearance. The front towing hook is neatly concealed for a cleaner look.
• Heated and electrically adjustable mirrors integrated with 360° camera system effectively remove rain and fog, improving visibility and driving safety. The mirrors are larger and more premium compared to standard pole-type mirrors, giving the truck a more elegant look.
• The three-step anti-slip (stainless steel) footboard ensures easier and safer access to the cabin. The door panel integrates a small storage compartment for personal items.
• An electric cabin lift system ensures convenient and safe access during maintenance and inspection.
• The 4-airbag suspension system with shock absorbers improves cabin stability on rough roads.
• The 360° camera system further enhances safety during operation.

INTERIOR DESIGN

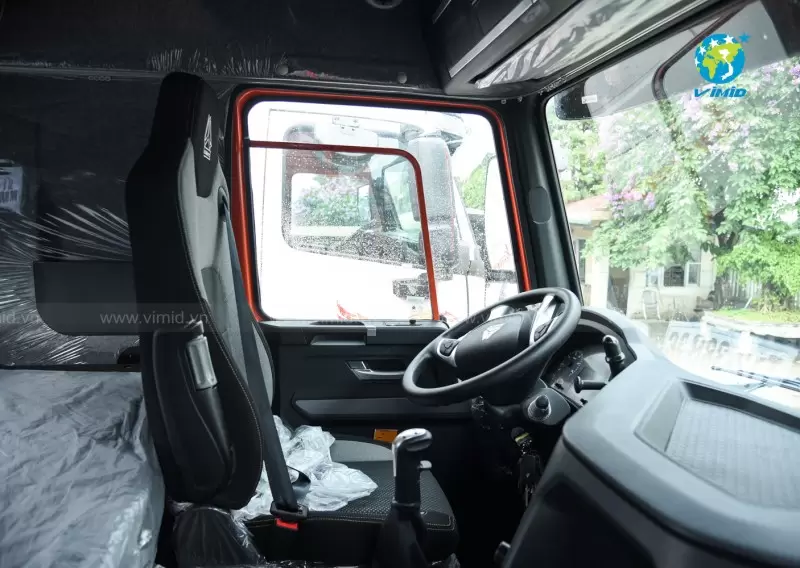

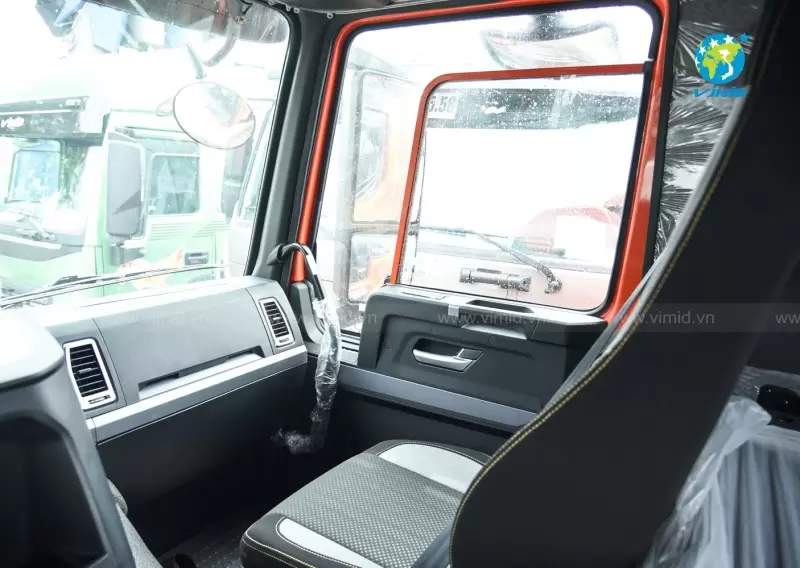

The spacious cabin is designed in a luxurious and modern European style, developed by the TGA engineering team (MAN-Germany standards). It offers superior comfort and safety.

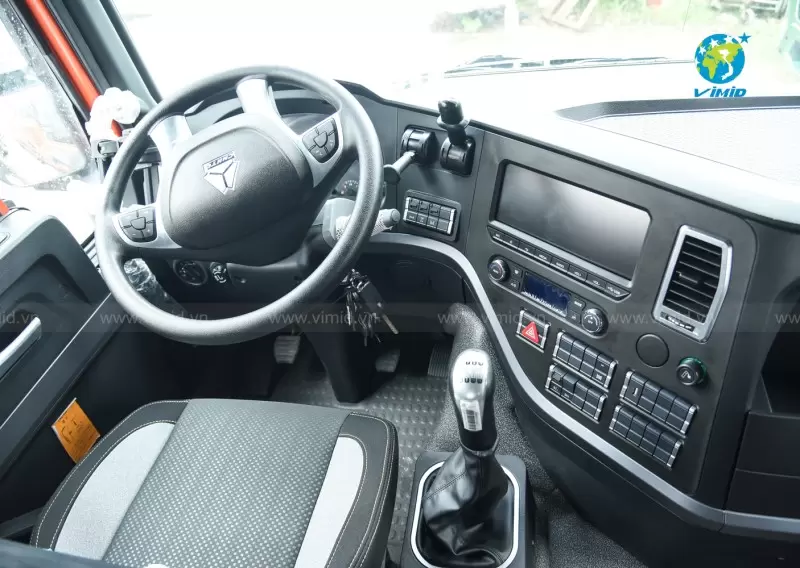

• The central control panel is ergonomically designed, featuring a 10.3-inch touchscreen LCD with ultra-clear 360° camera display. The instrument cluster includes gear position, speed display, and safety alerts.

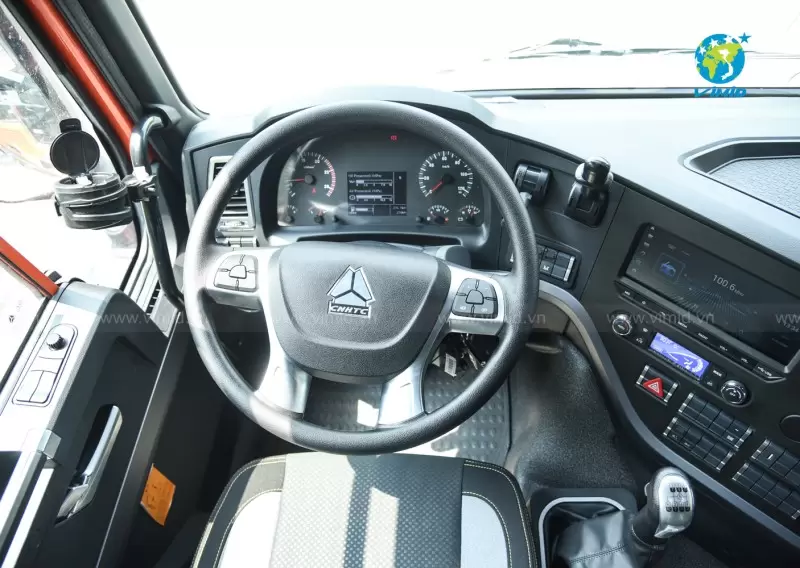

• The four-spoke multifunction steering wheel with chrome-plated CNHTC triangular logo enhances both aesthetics and functionality.
• Two large side cabinets and overhead storage with automatic lighting, offering convenient access in low-light conditions.
• The automatic climate control system with rotary dials delivers exceptional cooling performance.
• Two comfortable sleeping bunks provide a relaxing resting space during long hauls.
• Additional convenience features include a reading light, cup holders, and personal storage space near the bed area.

POWERTRAIN SYSTEM

Engine: MAN Technology – MC11.44-50

• Power output: 440 HP
• Max Torque: 2,200 N·m
• Maintenance Interval: up to 100,000 km
• Improved efficiency and fuel savings of up to 10%
• Built with advanced MAN technology and BOSCH electrical systems, ensuring exceptional reliability and stability
• Engine life cycle (B10 standard): 1.5 million km
• Equipped with EVB engine brake system and ABS for enhanced safety.
• The FLEETGUARD fuel filter offers an extended service interval—2–3 times longer than normal filters—ensuring optimal fuel cleanliness, injector protection, and reduced maintenance costs.
• An integrated electric fuel pump with a cabin-mounted switch ensures easy engine start and prevents fuel vapor lock issues.

Howo Sinotruk Gearbox:

• Model: SINOTRUK HW25712XSTCL
• Type: 12 forward gears + 2 reverse gears
• Max Torque: 1,900 N·m
• Material: Aluminum housing

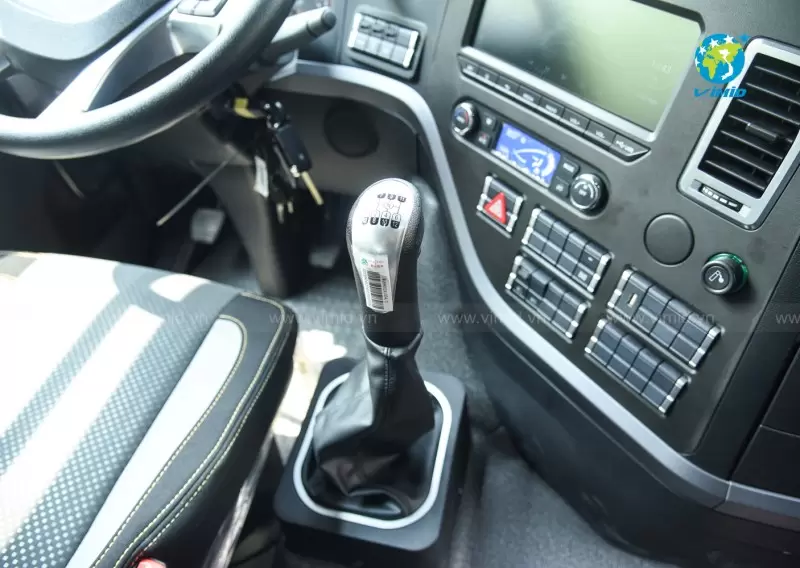

• Assisted shifting: Pneumatic shift assist

Axles: MAN-Technology

• Front Axle: VGD95 – Load capacity 9.5 tons
• Rear Axle: MAN-Technology MCP16ZG Hub-Reduction Axle, Load capacity 16 tons, Rear axle ratio is 4.77

→ Ideal for mountainous, hilly, and steep terrains.

CHASSIS AND SUSPENSION

Suspension System

• The V7X 440 uses leaf-spring dependent suspension, providing high load capacity and easy maintenance.
• Front suspension: Multi-leaf spring (9 leaves), hydraulic shock absorbers, and stabilizer bar
• Rear suspension: Multi-leaf spring (12 leaves) with stabilizer bar

Fifth Wheel:

Equipped with locking-type SINOTRUK 90# fifth wheel, designed for heavy-duty towing capacity.

Braking system:

• The HOWO V7X 440HP Tractor – Hub reduction rear axles adopts a full air braking system with drum brakes and automatic brake shoe adjusters on both front and rear axles, ensuring consistent braking performance and reducing maintenance effort.
• Additionally, the three-axle ABS system prevents wheel lock-up, minimizes tire wear, maintains steering control, and optimizes braking distance.

Fuel Tank:

Constructed from aluminum alloy, with a total capacity of 600 liters.

Warranty Policy

“3-Year Unlimited Kilometer Warranty”
