Howo TH7 10×4 Cargo Truck-Tarpaulin Frame 9.7M (Imported)

EXTERIOR DESIGN

The TH7 10×4 Cargo Truck-Tarpaulin Frame 9.7M boasts an impressive exterior, adopting the latest TH7 cabin design with outstanding highlights:

• Headlamp Cluster: Newly designed square-shaped Full LED lights — the first ever on SINOTRUK trucks in Vietnam — delivering superior brightness, high durability, energy efficiency, and long service life.
• Front Grille: V-shaped grille with three chrome horizontal bars and aerodynamic lines, creating a bold, modern, and powerful HOWO identity.
• Brand Identification: The iconic SINOTRUK triangle logo is positioned at the front grille, while the “TH7” product series badge is placed on the driver’s door.
• Convenient Grab Handle: A grab handle on the front grille allows easy inspection and maintenance.
• Mirrors: Same design as A7 and T7H models, equipped with four-way electric adjustment and heating functions.
• Camera System: 360° camera system including front, side, and rear cameras for complete visibility.
• Electric Cabin Tilting System.

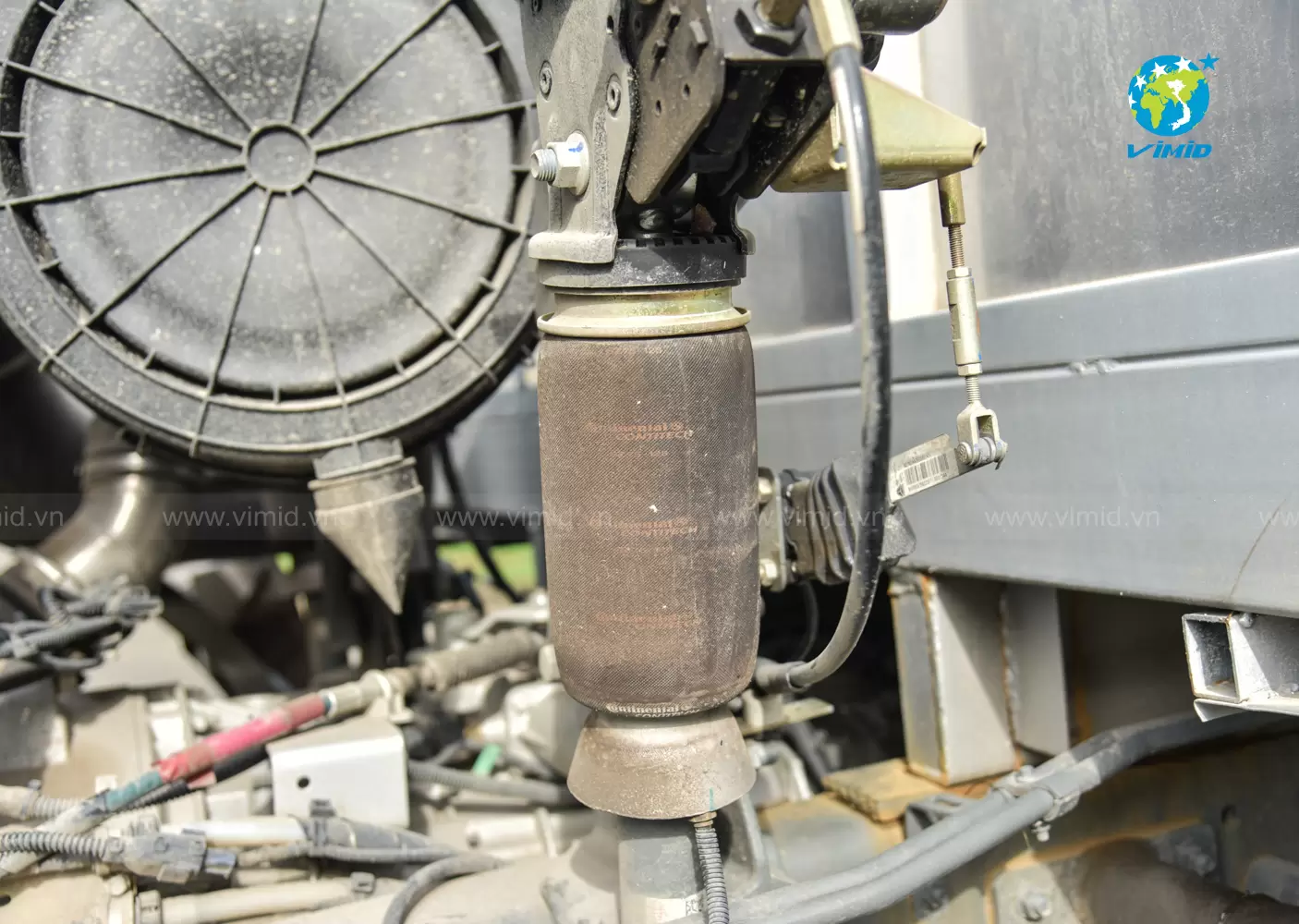

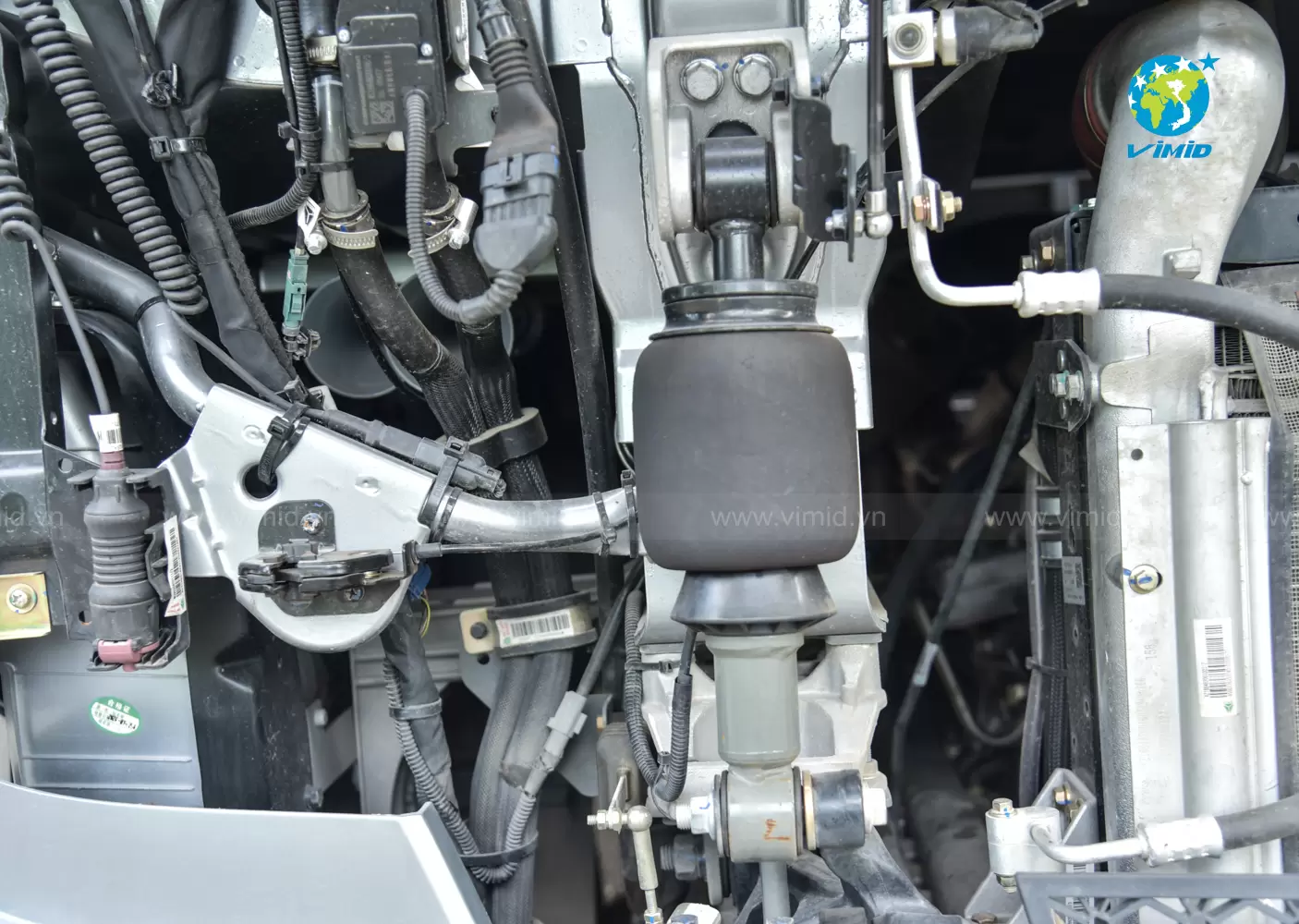

• Cab Suspension System: 4-airbag cabin suspension (2 front + 2 rear) ensures maximum comfort..

INTERIOR DESIGN

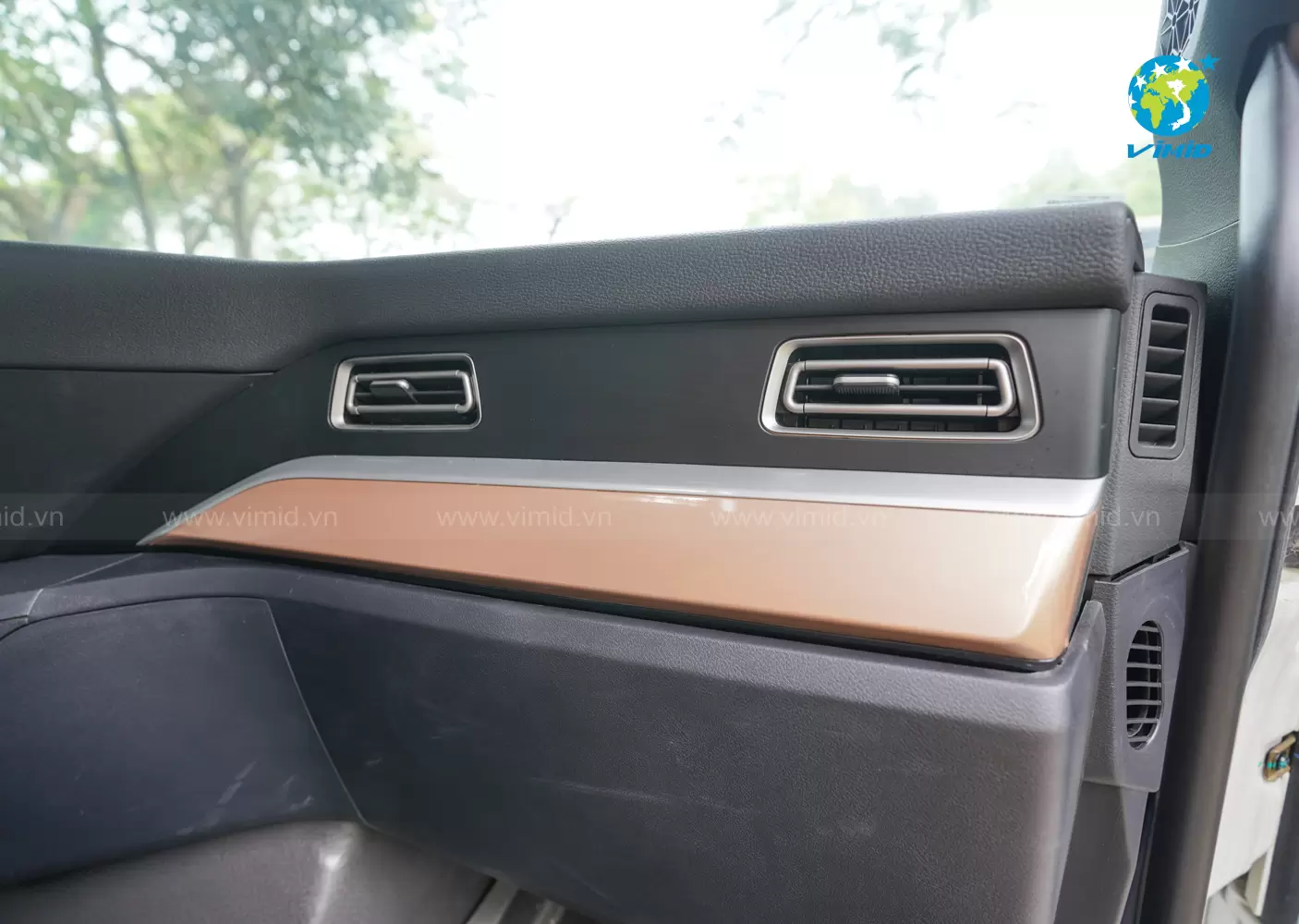

The cabin interior is completely redesigned — elegant, modern, and driver-focused.

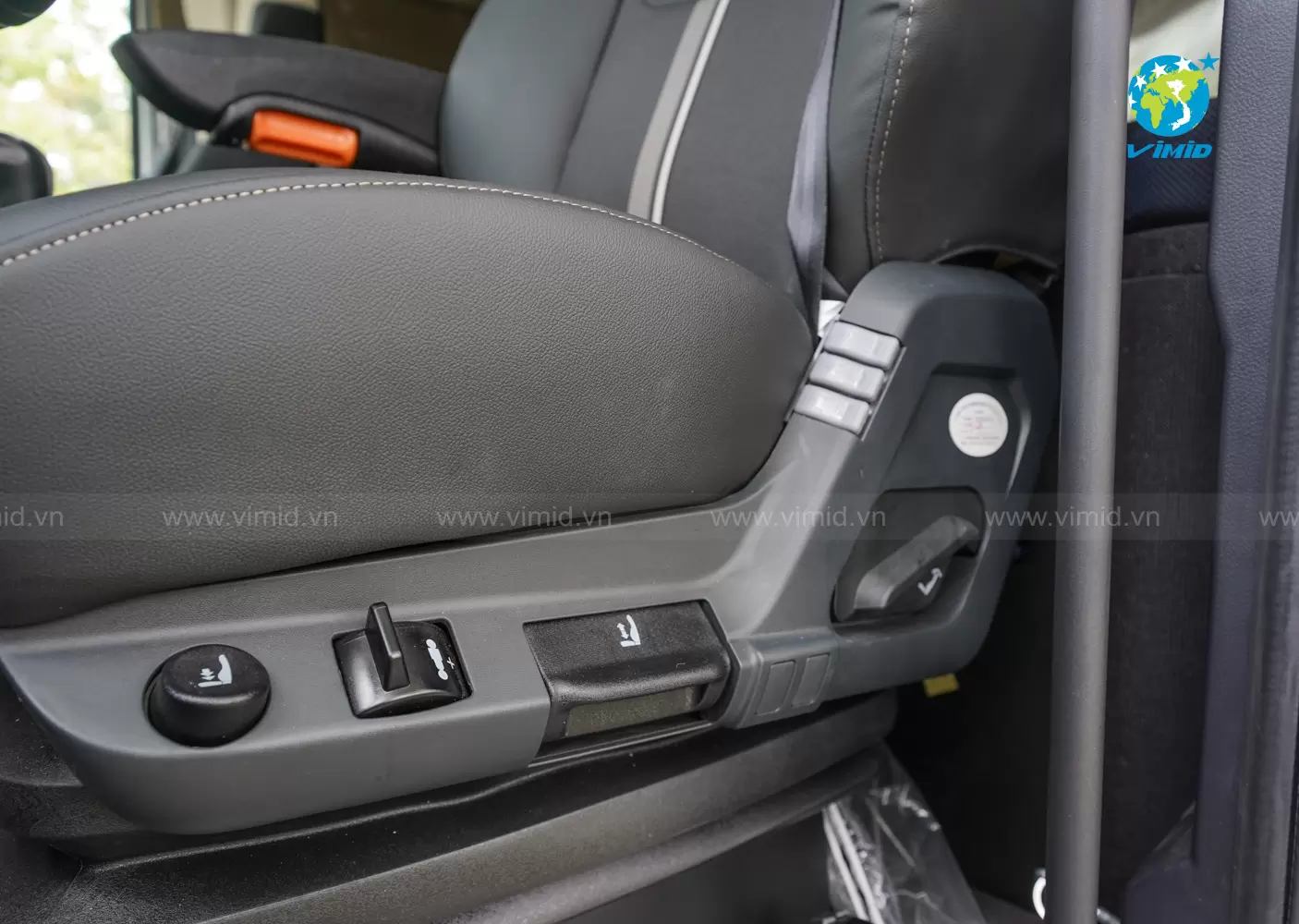

• Premium Air Suspension Seat: High-end TH7 seat with full pneumatic lumbar and spinal support, adjustable for individual driver comfort.
• Spacious Cabin: Tallest in its class — cabin height nearly 2m with low floor design, optimizing space and movement.
• Central Dashboard: Redesigned console includes all previous features from T7H/A7, with relocated hand brake and trailer brake lever.
  • New LCD touch screen and upgraded instrument cluster display gear position, speed, and safety warnings.
• Steering Wheel: New 4-spoke multifunctional steering wheel — controls volume, Bluetooth phone connection, dashboard, LCD, and Cruise Control.
• Entertainment System: 12.3-inch touchscreen supporting Carbit Link and Bluetooth, 360° camera display, multitasking, and Wi-Fi connection.
• Convenience Features: 220V / 1500W onboard power source for enhanced cabin comfort.

POWERTRAIN AND TRANSMISSION

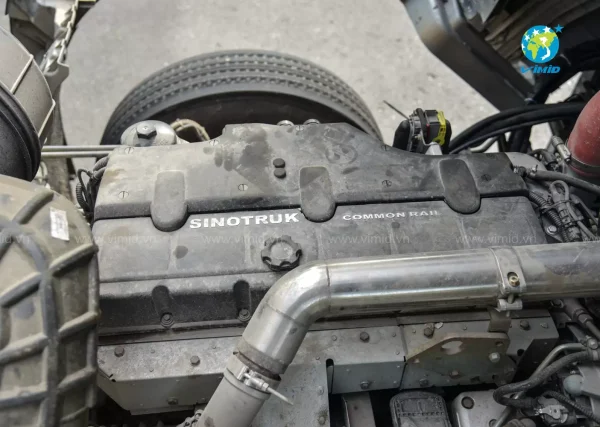

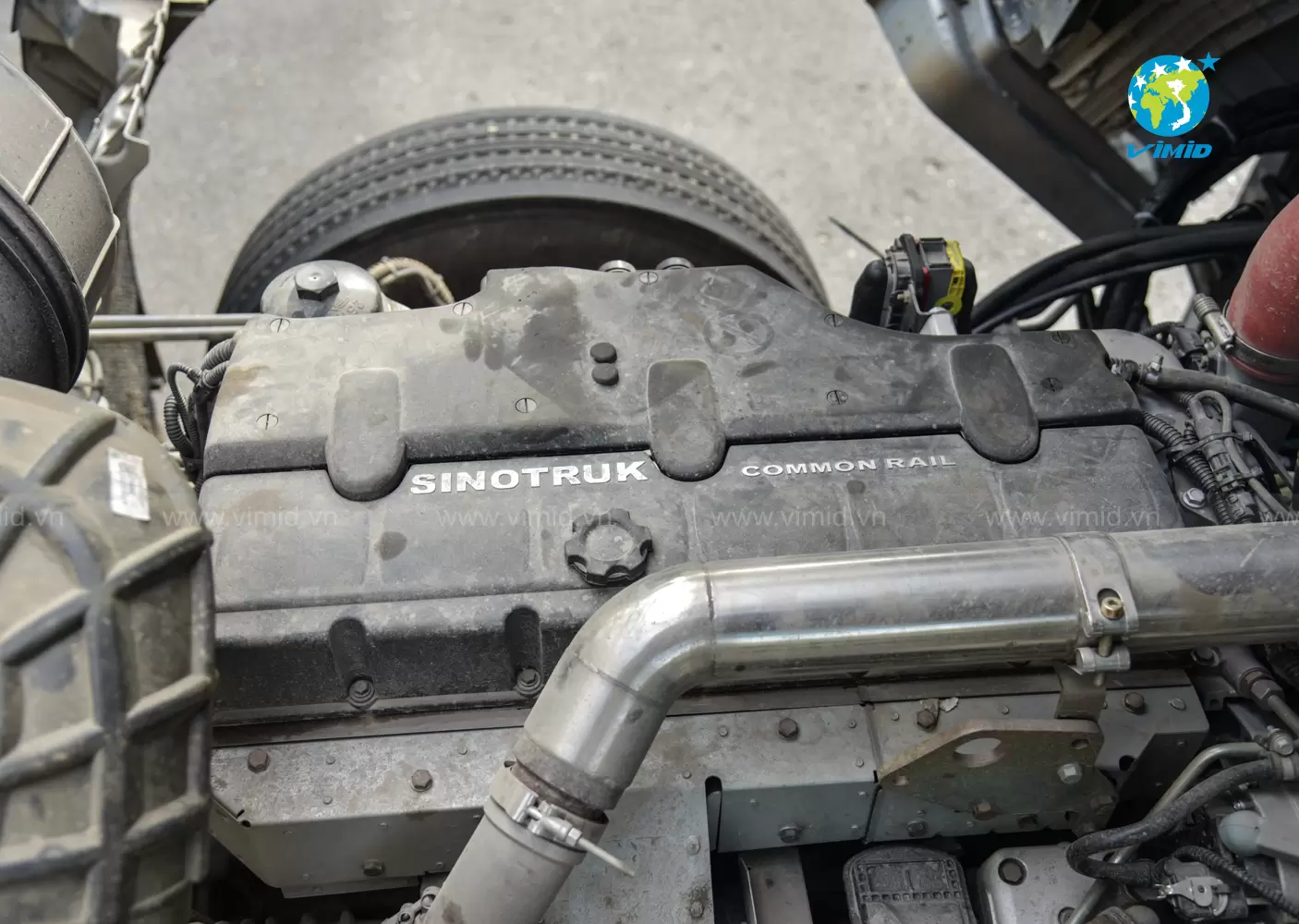

Engine: MC07H 35-50 (350Hp) — 6-cylinder inline, 4-stroke turbocharged diesel engine with MAN technology.

• Built with advanced materials for high durability and stability.
• Engine life expectancy: B10 standard – up to 1.5 million km.

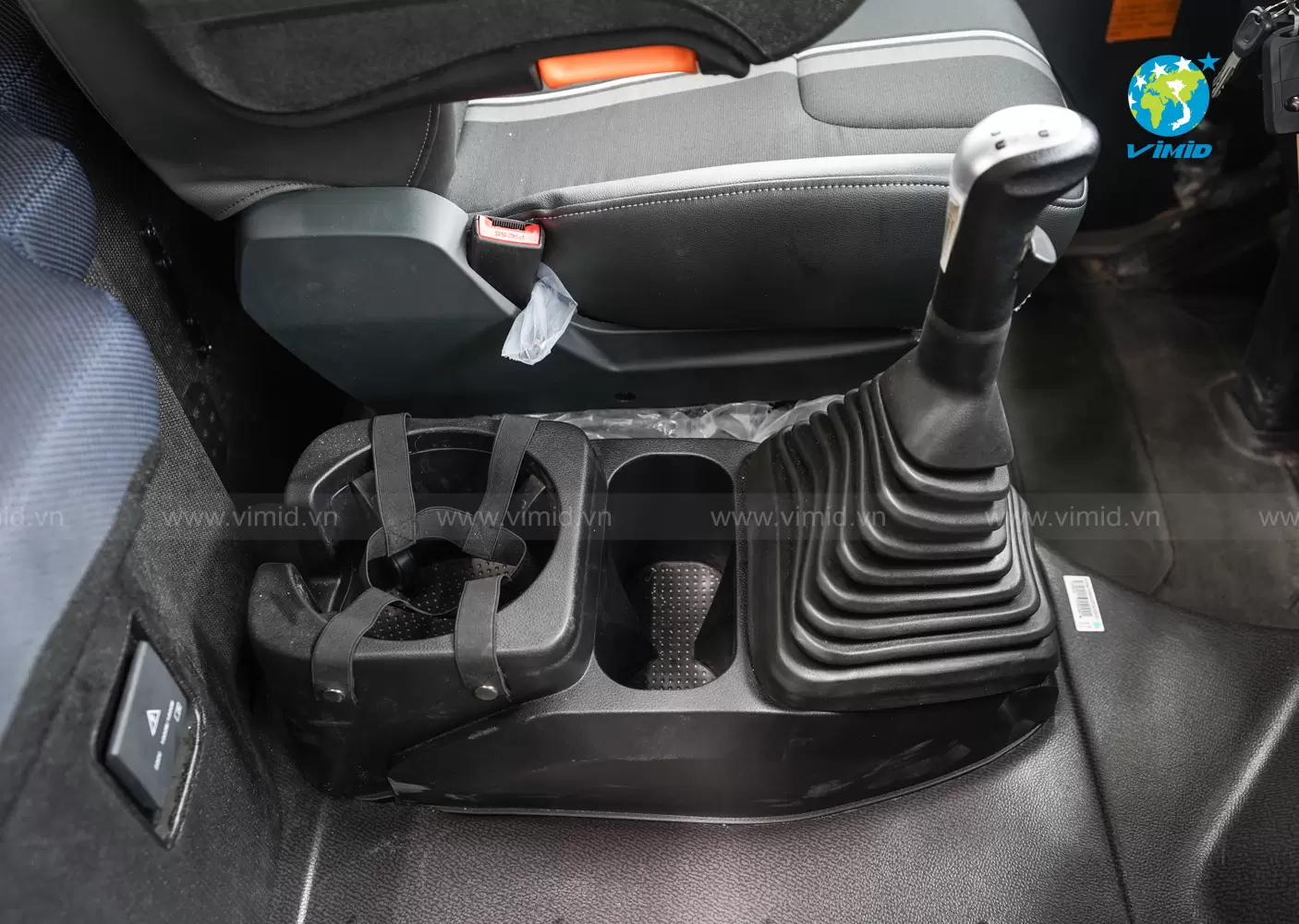

Transmission: HW13709XSTC2L – 9 forward, 1 reverse, aluminum housing gearbox.

• Output torque: 1350 N·m.
• Helical gears, double countershaft design, synchronizer-equipped, lightweight aluminum casing for better heat dissipation and smooth shifting.

Axle System (MAN Technology):

• Front Axle: HF VGD71, load capacity 7.1 tons.
• Rear Axle: MCJ11BGY MAN hub-reduction axle, load capacity 11 tons, gear ratio 3.7, tri-axle with 8-ton middle axle.

CARGO TRUCK BODY

The 9.7m tarpaulin-frame cargo body is imported and built to the highest durability standards.

• Internal cargo dimensions: 9700 x 2380 x 800/2150 mm
• Structure: High-strength T700 steel floor (2mm thick), divided into 4 compartments; outer panels covered with 0.6mm corrugated stainless steel.
• Coating: Full electrostatic and immersion painting process ensures superior surface durability and longevity compared to manual paint methods.
• Side Panels: Aluminum alloy panels (200mm per sheet), lightweight yet durable and highly aesthetic.

OTHER SYSTEMS:

• Suspension System:
  • Front: Multi-leaf spring with hydraulic shock absorbers and stabilizer bar (9 leaves).
  • Rear: Multi-leaf spring with stabilizer bar (12 leaves)
• Tires: 12R22.5 all-steel radial tires.
• Fuel Tank: 400L aluminum alloy tank with protective cover.
• Chassis: Double-layer 8+4 high-strength SINOTRUK steel frame.
  Stabilizer Bars: Front and rear stabilizer bars improve chassis balance and durability at high speeds or on rough terrain, extending the lifespan of suspension bushings and mounts.

Warranty

VIMID guarantees a 3-year unlimited mileage warranty for all HOWO MAN T7H, HOWO MAN TH7, and SITRAK G7 truck models. Details:
