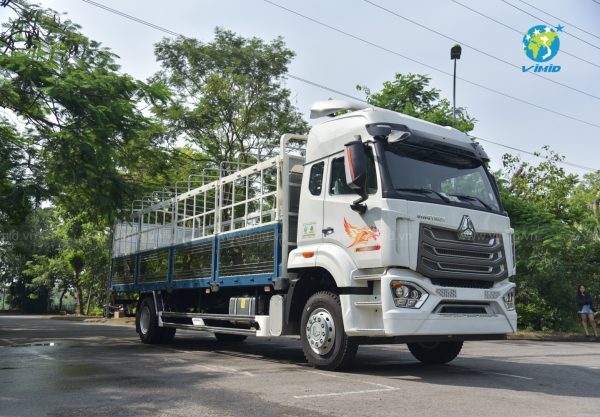

Howo NX 4×2 Cargo Truck-Tarpaulin Frame 8.5M

The Howo NX 4×2 Cargo Truck-Tarpaulin Frame 8.5M serves the 6–9 ton payload segment, designed for inter-provincial cargo transport, industrial zone logistics, long-haul routes, mixed terrain, logistics and express delivery, and postal transport. It is suitable for carrying agricultural products, confectionery, electronics, garments, and other commercial goods. This model stands out for its high-quality configuration, […]

Xem 3D

Giá liên hệ

Lưu ý: Giá này là giá tham khảo để có giá tốt nhất xin liên hệ

Liên hệ ngay Tính toán chi phí lăn bánh

Nhận tư vấn Download Catalogue

Giới thiệu
Thông số kỹ thuật
Hình ảnh
Video

The Howo NX 4×2 Cargo Truck-Tarpaulin Frame 8.5M serves the 6–9 ton payload segment, designed for inter-provincial cargo transport, industrial zone logistics, long-haul routes, mixed terrain, logistics and express delivery, and postal transport.

It is suitable for carrying agricultural products, confectionery, electronics, garments, and other commercial goods.

This model stands out for its high-quality configuration, durable components, and reliable performance. It is powered by the MAN-Technology MC07 engine with a lifespan of up to 1.5 million km, paired with the HW95508STC transmission and MAN-Technology MCJ12BG rear axle, known for superior strength and durability.

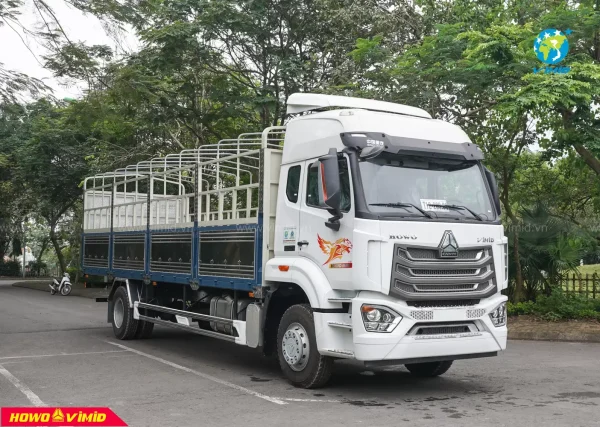

EXTERIOR DESIGN

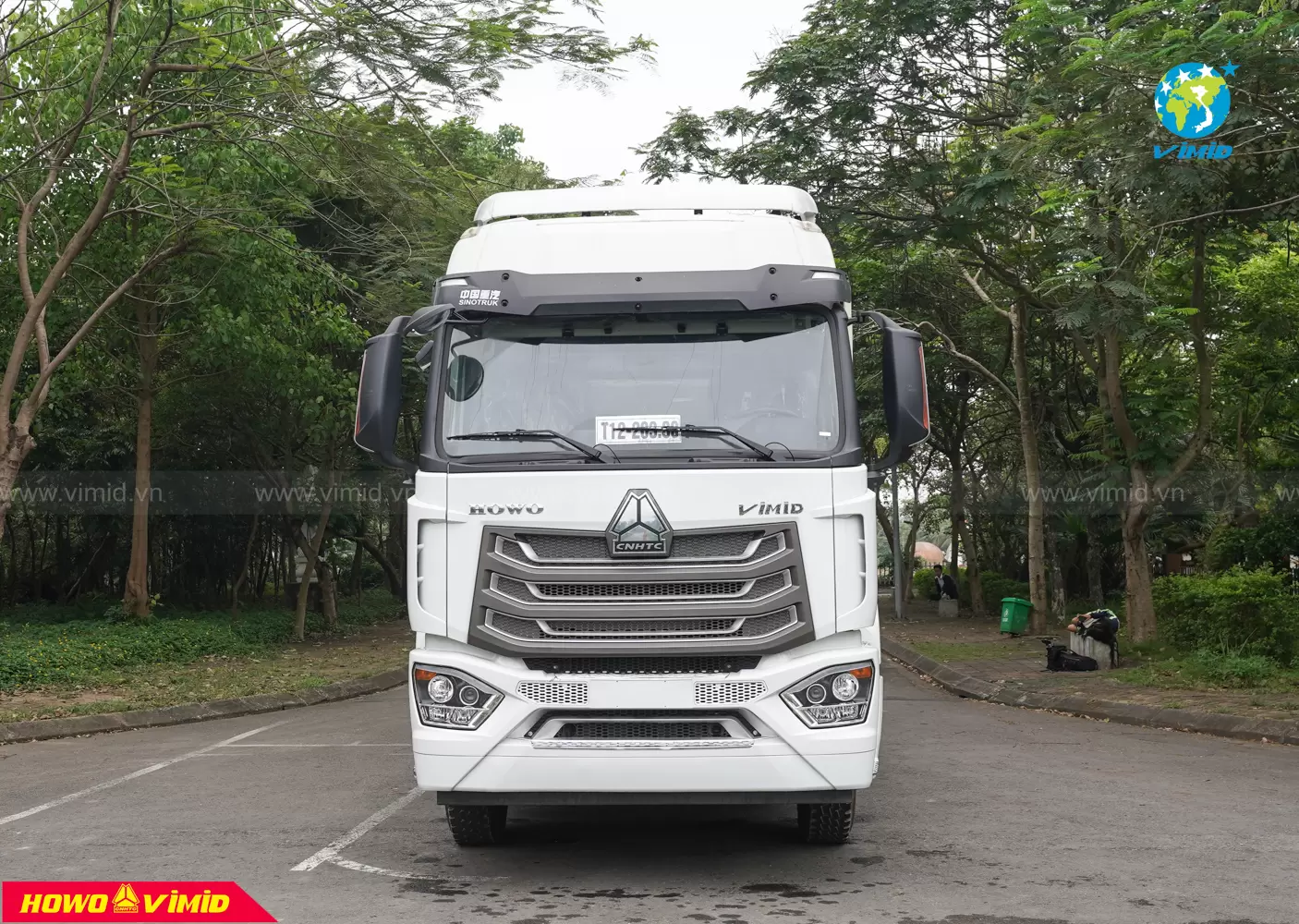

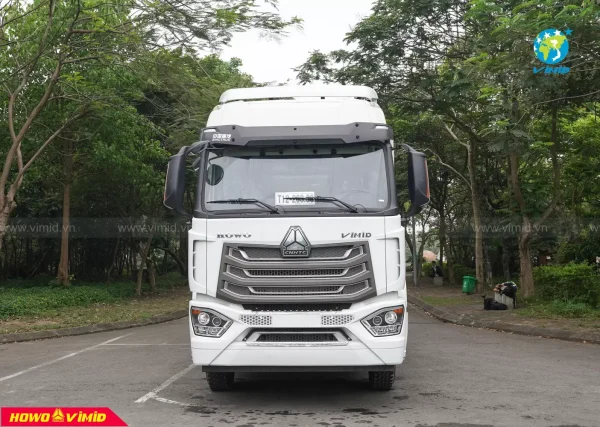

The NX 4×2 features a completely new exterior, with a modern and strong grille design for an impressive appearance.

The high-roof NX cabin with two sleepers is crafted with precision and rigidity, offering excellent safety and comfort for the driver.

Noise levels are reduced by approximately 20% compared to other cabins in the same class.

Lighting system: Integrated Halogen, Xenon projector, and LED daytime running lights provide better illumination and energy efficiency.
Front bumper: Balanced design, harmonizing with the overall cabin look.
Rearview mirrors: Wide-angle mirrors with 4-way electric adjustment and heating function for all-weather visibility.
Step board: 3-step anti-slip stainless steel design for safer entry and exit.
Suspension: Equipped with 4 large air suspension for a smoother ride.
Cabin tilting: Electric tilting system—a new feature compared to older dump truck models, offering easier maintenance access

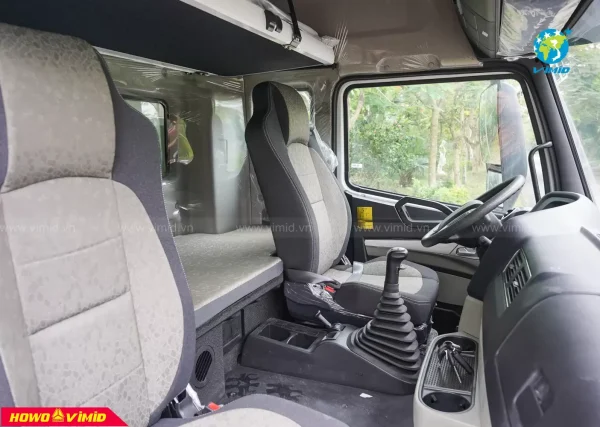

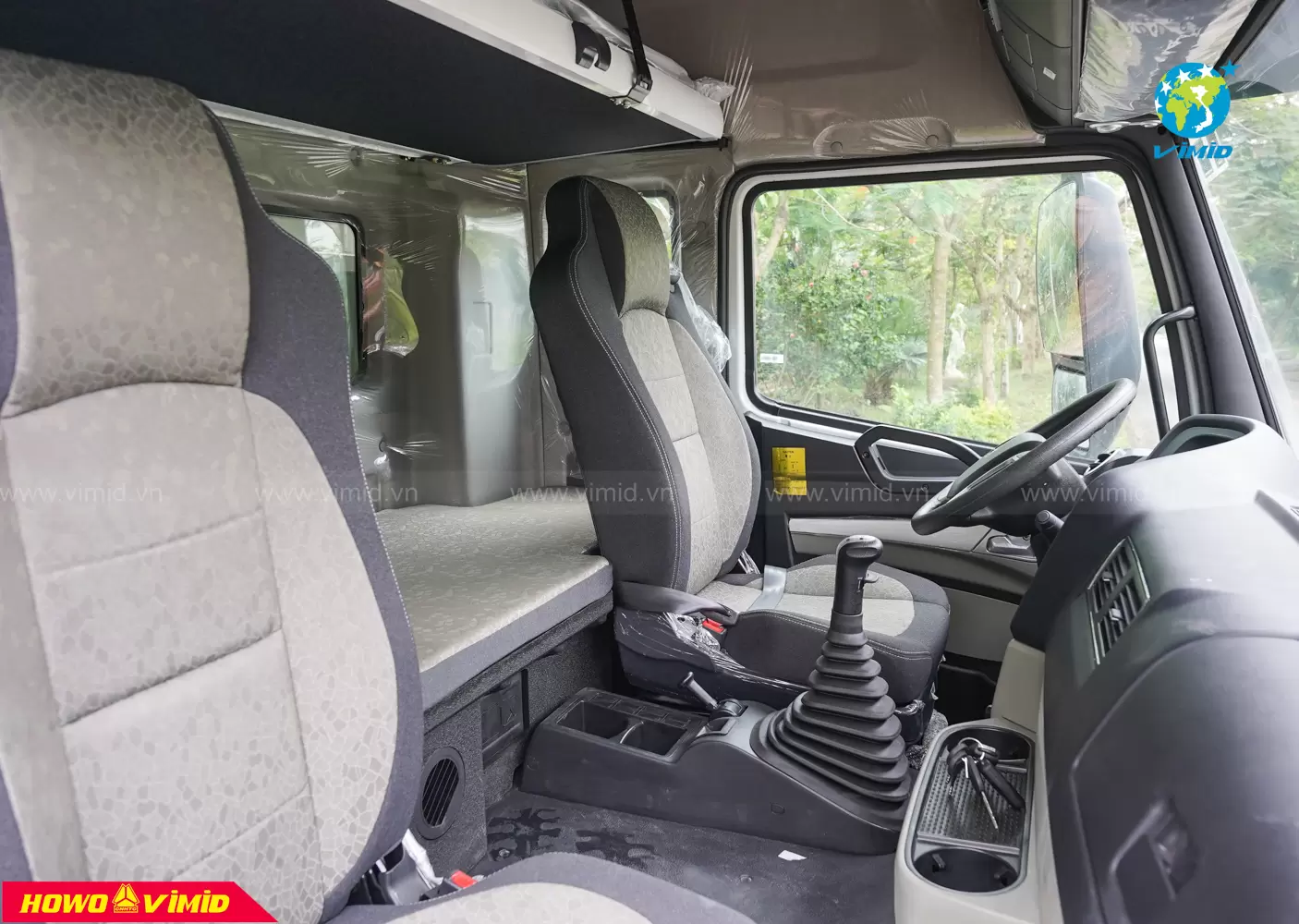

INTERIOR DESIGN

The interior is designed by European TGA engineers using German MAN technology, shared with the HOWO MAN VX/T5G/TX series.

A spacious cabin with a gray-gold color tone, upgraded seat materials, and refined patterns delivers both aesthetics and comfort.

Main features include:

Exhaust brake (Cup-po)
Cruise Control
Smart Key system
USB port
Electric cabin lift
Automatic air conditioning
Auto light switch
Air suspension seat with multi-adjust modes

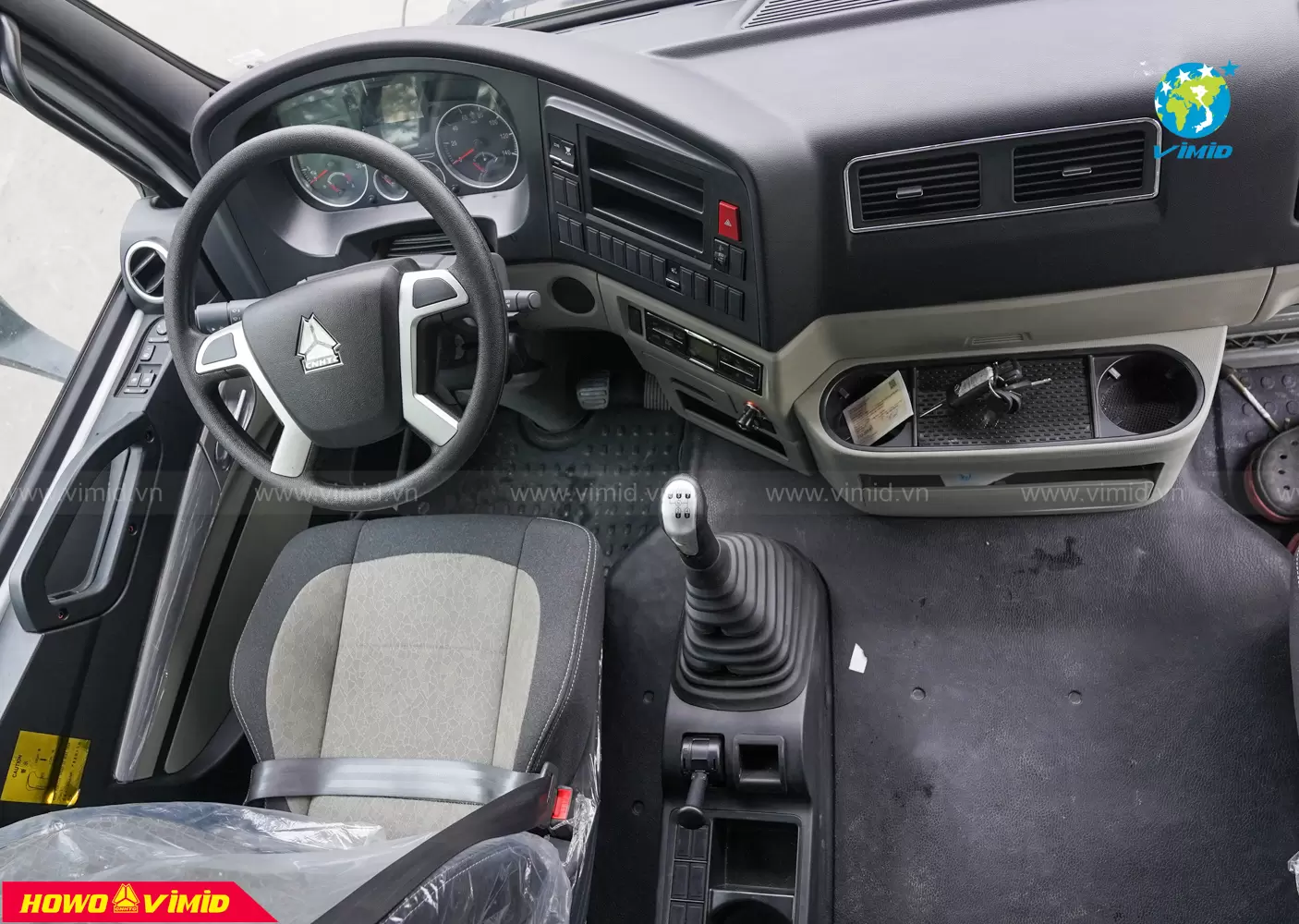

Interior Details:

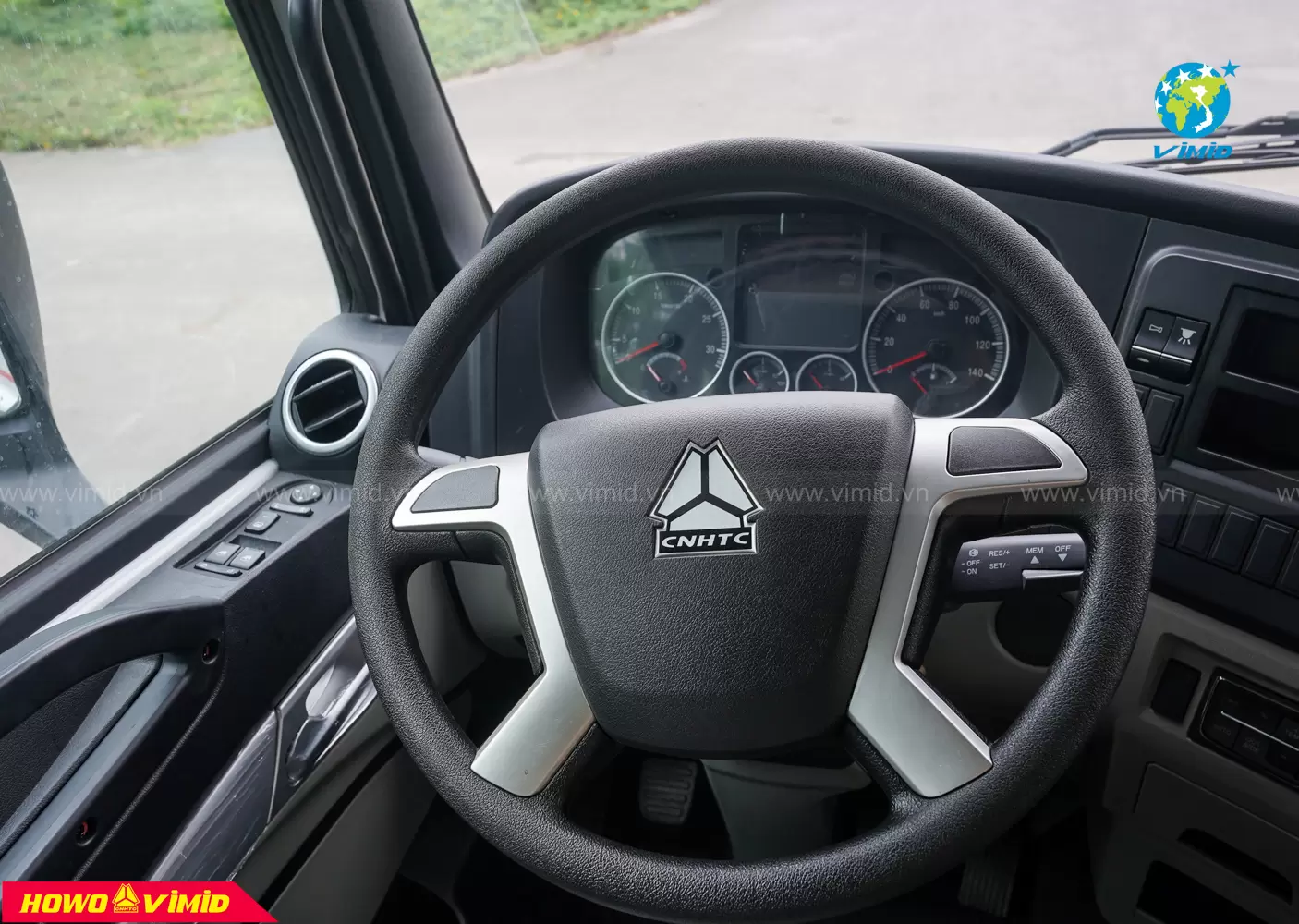

4-spoke steering wheel with CNHTC logo in bright chrome finish.
Right stalk: controls the exhaust brake and cruise control.
Left stalk: controls the lighting, horn, beam flash, and wipers.
Two-tier center console: durable hard plastic, top in black, bottom in gray-gold for visual contrast.
Multiple storage compartments, including two additional lockers near the sleeper area.

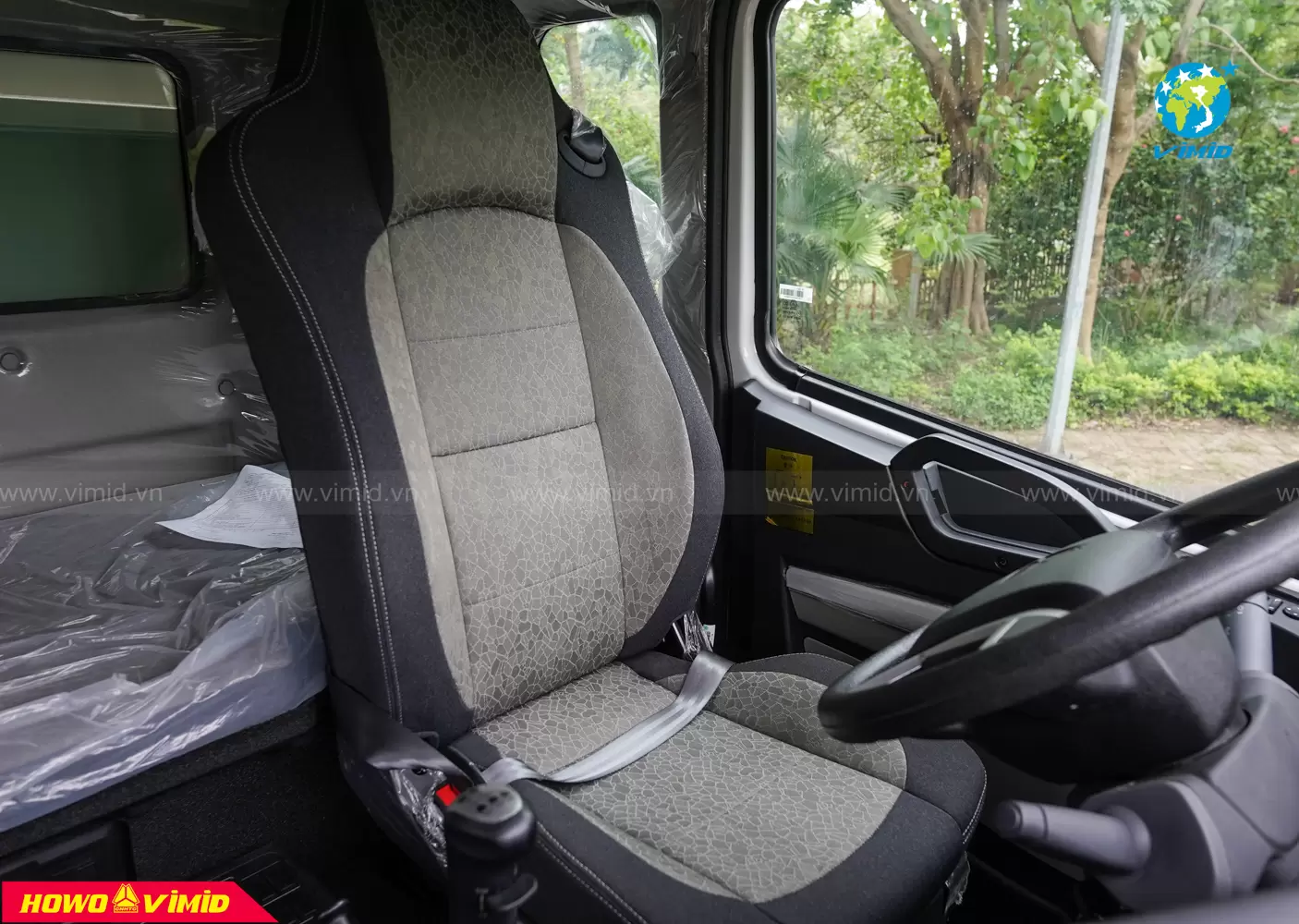

High-back air suspension driver seat with lumbar support air cushions for spinal comfort.

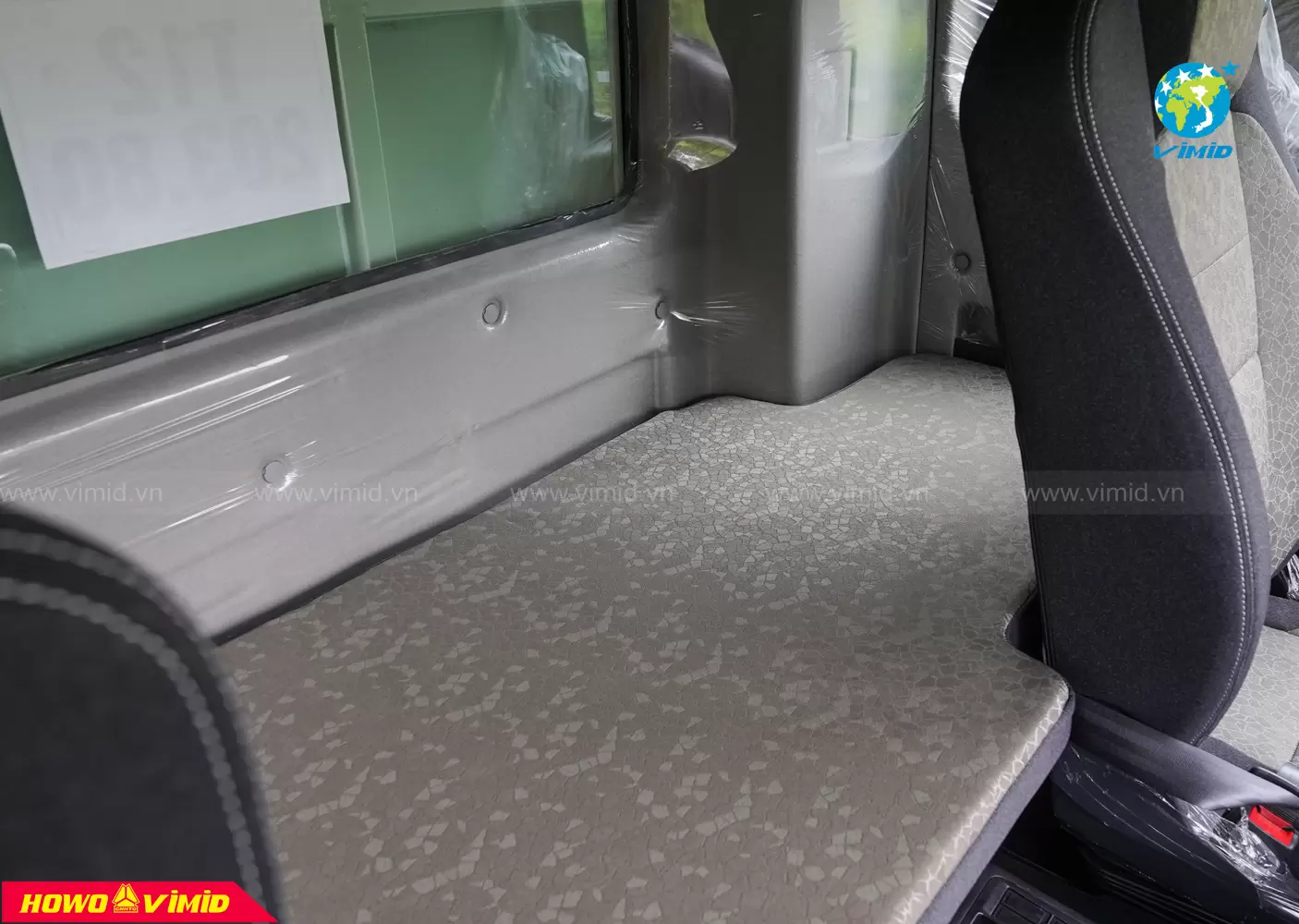

Two-sleeper high-roof cabin, made from lightweight, eco-friendly materials, reducing vibration and noise.

POWERTRAIN AND TRANSMISSION

Engine – MC07.24-50

Model: MC07.24-50
Power output: 240 HP (176 kW)
Max torque: 925 N·m @ 1200–1800 rpm
Displacement: 6870 cc
Max speed: 2300 rpm
Emission standard: Euro 5 (SCR system)
AdBlue tank capacity: ~35 liters
Fuel saving: up to 9%
Service interval: extended
Durability: Engine lifespan (B10 standard) up to 1.5 million km
Safety: Equipped with EVB and engine brake systems

Gearbox – HW95508STC

Torque capacity: up to 950 N·m
Type: 8 forward gears + 2 reverse gears
Material: Cast iron housing

Axle System – MAN Technology

Front axle: MAN-standard HF VGD60, load capacity 6 tons
Rear axle: MAN-technology MCJ12BG, load capacity 12 tons

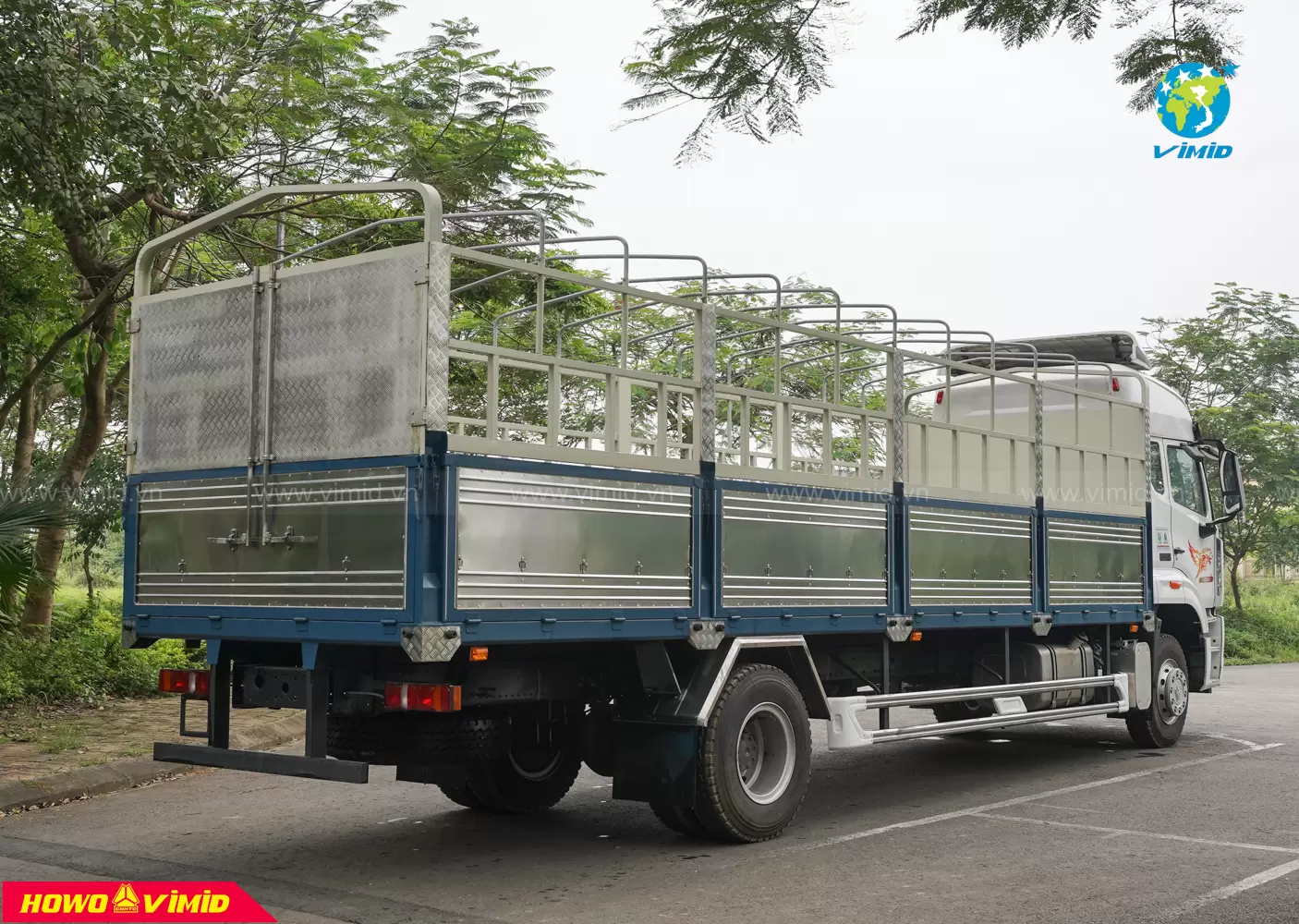

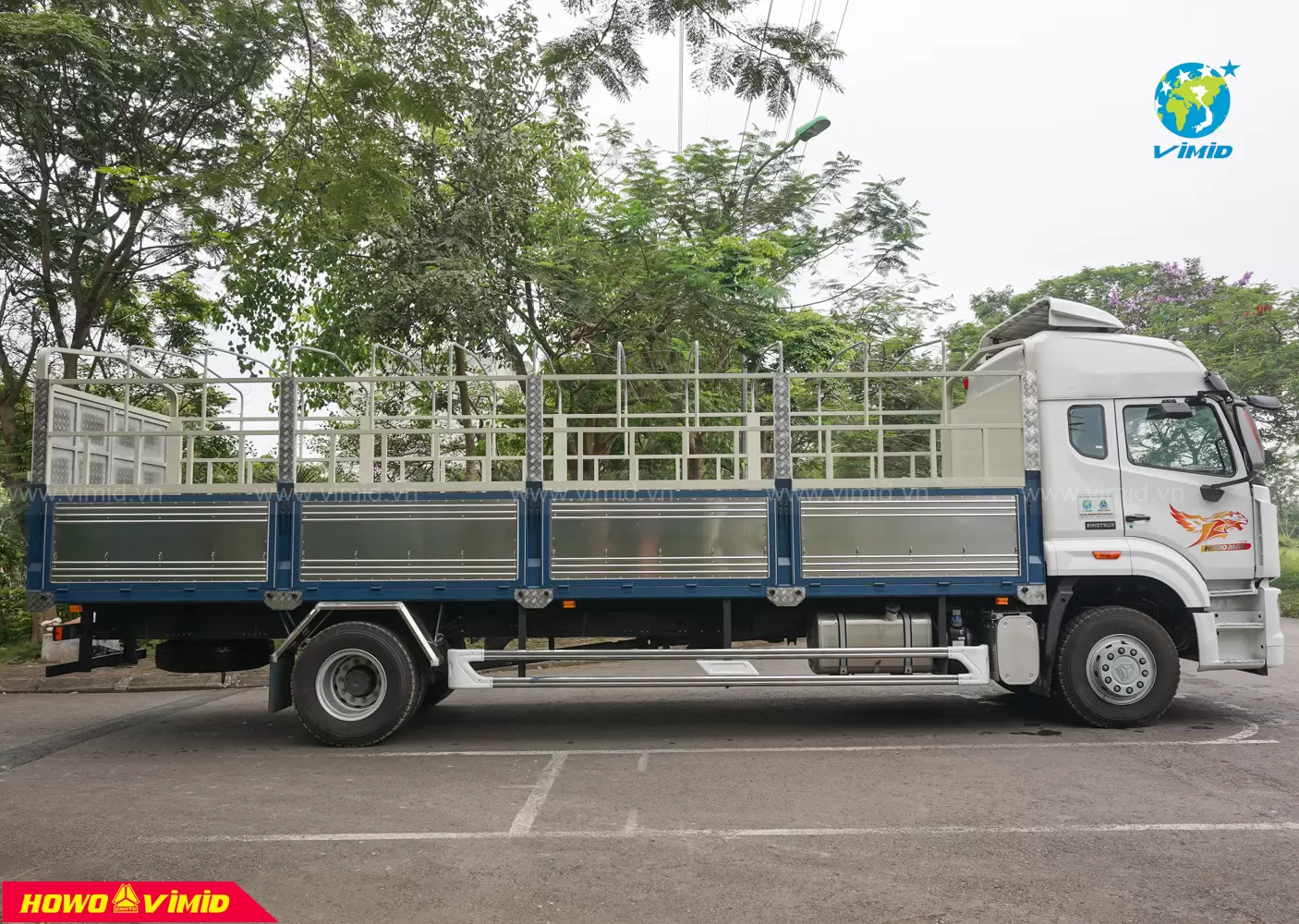

CARGO TRUCK BODY

Dimensions (Inner cargo box): 9.7 meters (approx.)

Main beams: U140 x 2 longitudinal beams
Cross beams: U100 + 100×60 wood interlaced (approx. 25 beams total)
Flooring: 2.6 mm flat steel plate with 3.0 mm reinforced edges

Side Walls & Frame:

Side panels: 4 per side + 1 rear door (total 9 panels, 800 mm high)
Side frame: galvanized steel box tubes (30x60x1.2; 20x40x1.2; 20x20x1.2 mm)
Reinforced pillars: U140, 1800 mm high, stainless steel base covers
Upper frame: galvanized tubes (40x40x1.4; 40x80x1.2; Ø34×1.9 mm)
Roof structure: 15 galvanized Ø27×1.9 mm pipes + 2 U80 curved beams with leather tarpaulin cover
Outer panels: 0.6 mm corrugated stainless steel (Inox 430)
Front wall: 1.2 mm black steel sheet lining

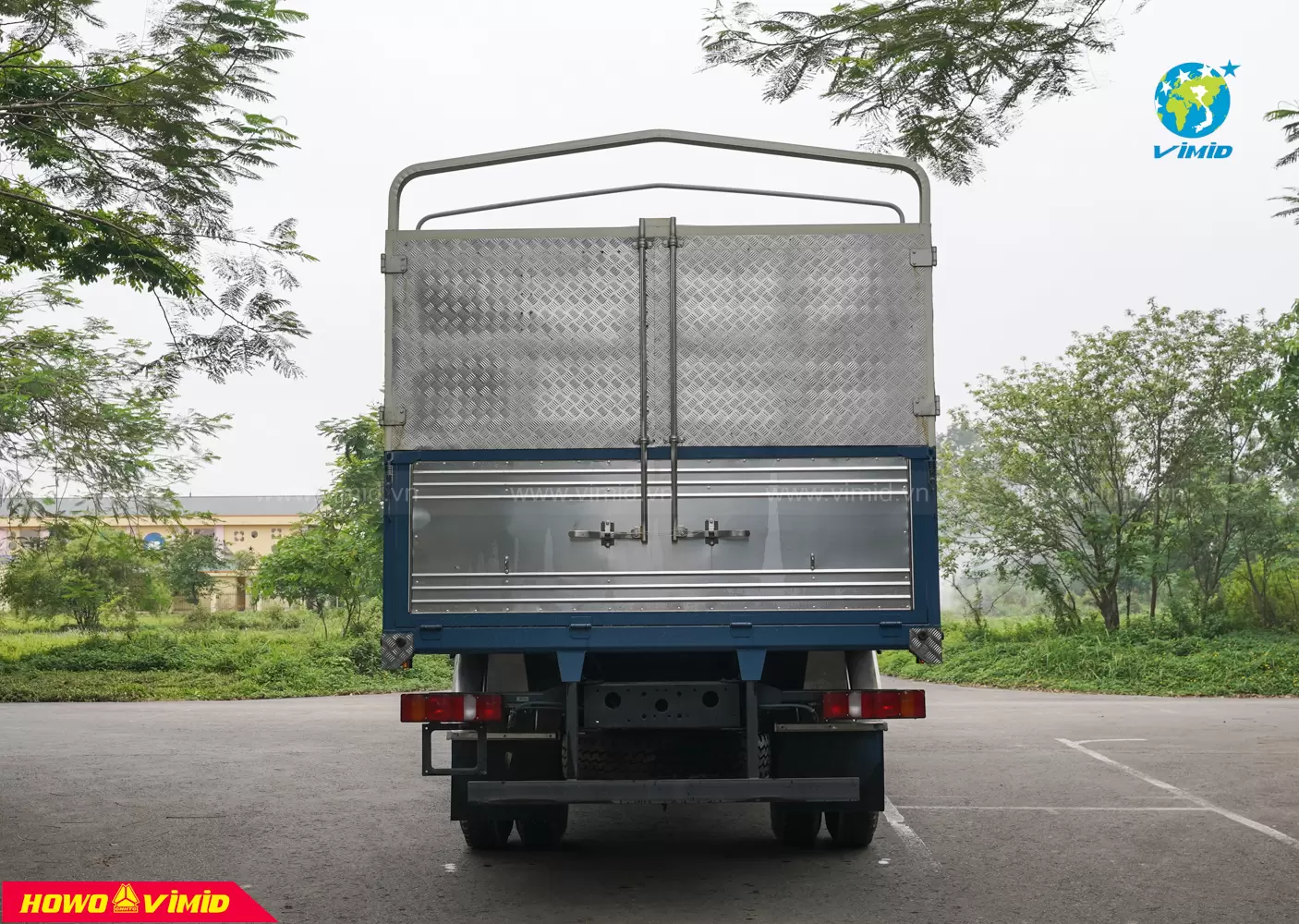

Rear doors: container-type dual doors with matte stainless steel finish
Locks & hinges: galvanized steel; rubber bumpers for protection
Side lamps: 4 per side
Side protection bars: stainless steel with composite decorative panels
Mudguards: stainless steel
