Howo MAX 400 8×4 Cargo Truck-Tarpaulin Frame 9.7M

Howo MAX 400 8×4 Cargo Truck-Tarpaulin Frame 9.7 meters was developed based on European design standards while embodying a distinctive Chinese style.

The truck’s front grille draws inspiration from the Great Wall of China, one of the country’s most iconic landmarks..

EXTERIOR DESIGN

The MAX truck is a sophisticated blend of classic and modern elements. With design cues drawn from traditional Chinese aesthetics, the exterior evokes the image of a mighty general’s armor or a powerful war chariot charging into battle.

Its aerodynamic design is optimized with a streamlined shape, smooth top cover, curved windshield, and dual side air ducts.
With a drag coefficient as low as 0.49 (compared to 0.52 in competitors), the MAX achieves at least 2% better fuel efficiency.

• Front lighting system: Equipped with premium Full-LED and Bi-Xenon headlights, delivering superior illumination for safer night driving.
• Scania-style large mirrors provide a wide viewing angle and excellent visibility. Includes 4-way electric adjustment and heating function.

INTERIOR DESIGN

Flat-floor European-style cabin with an interior height of 1950mm, allowing easy movement and a spacious, comfortable environment.

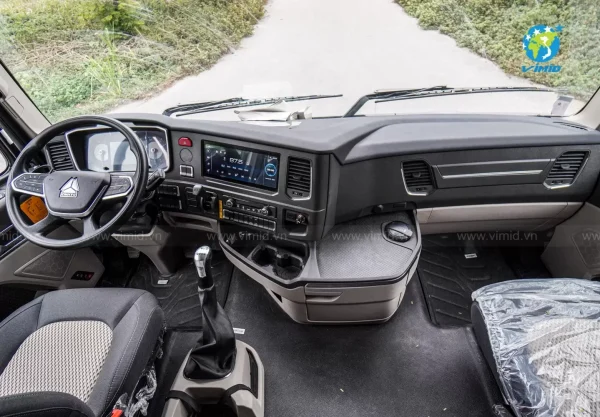

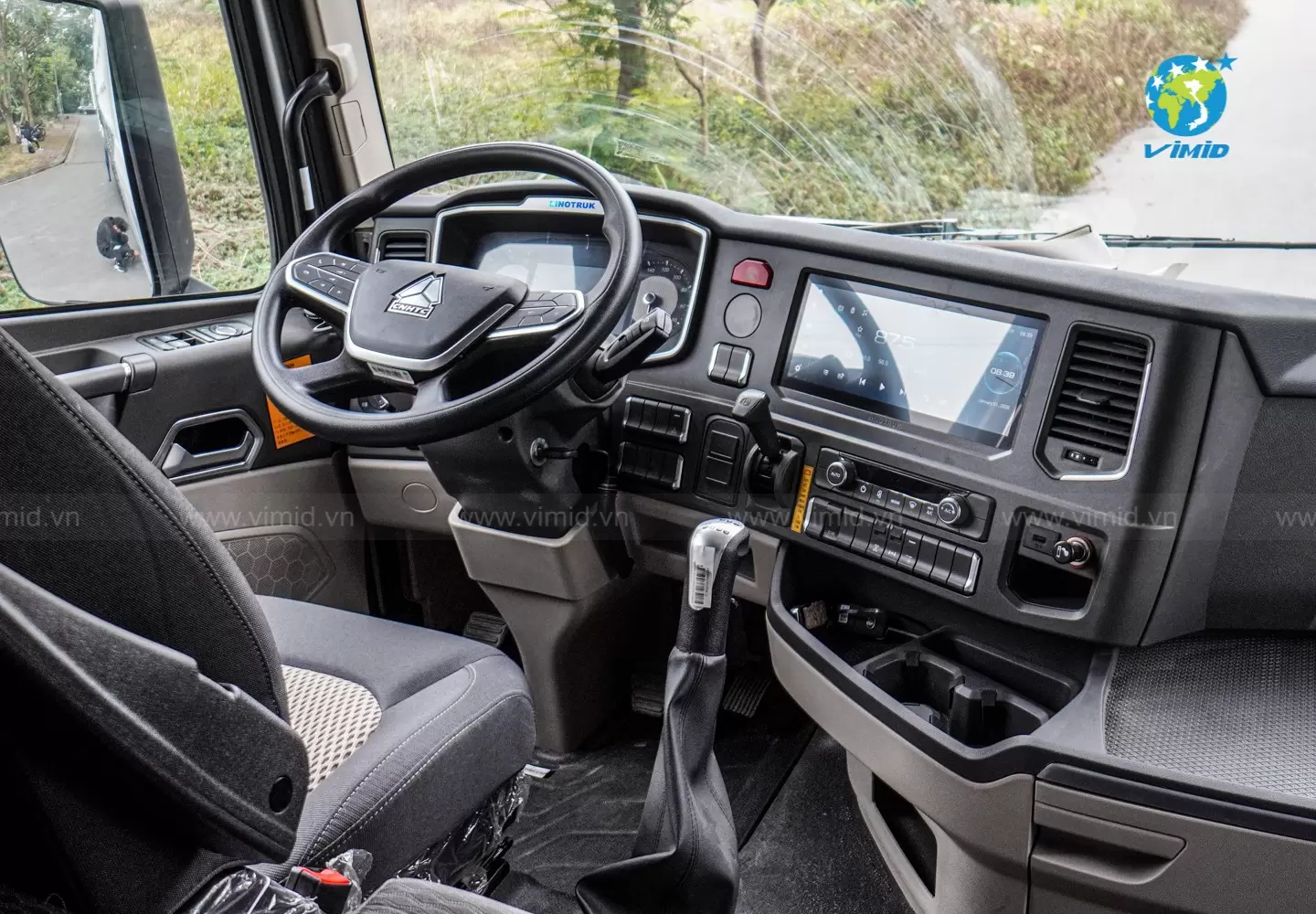

The dashboard layout and controls are ergonomically designed for convenient operation.

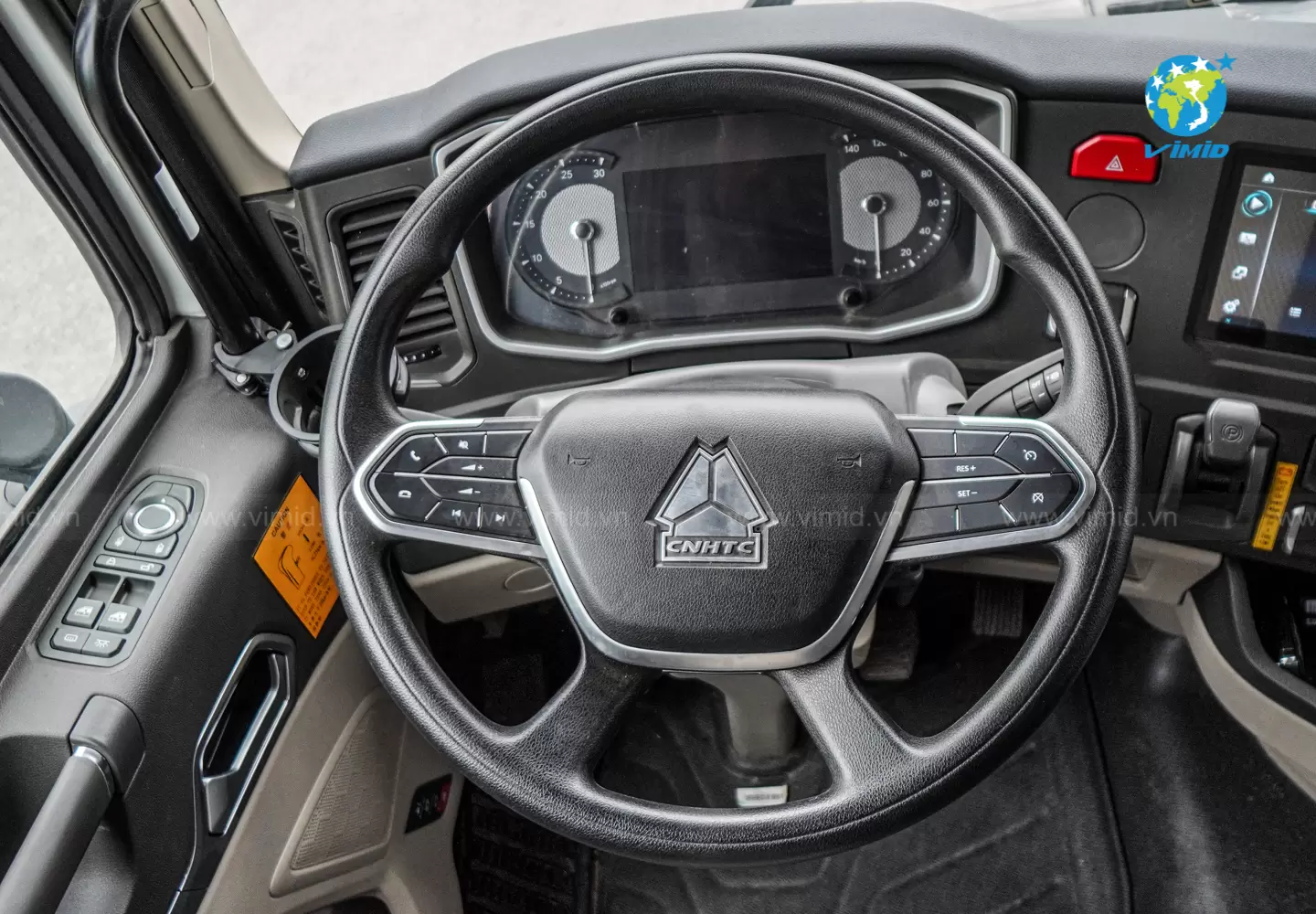

• Multifunction steering wheel
• Smart key system
• 4 large air suspension cabin mounts (140mm)
• Electric cabin lift
• One-touch power windows
• Heated mirrors and windshield
• 12.3-inch touchscreen display
• Wi-Fi, Bluetooth, MP3/MP4, FM, hands-free calling, Carbit Link connectivity
• Engine exhaust brake, cruise control, automatic fuel pump
• 220V/1500W onboard power supply
• Extra-wide sleeper bed (900mm)
• Anti-slip entry steps for safer access.
• Premium air suspension driver seat with lumbar support, multi-directional adjustment, and cooling function — designed to reduce fatigue and protect spinal health.
• Two large, odor-resistant, easy-to-clean sleeper beds made from safe, high-quality materials.

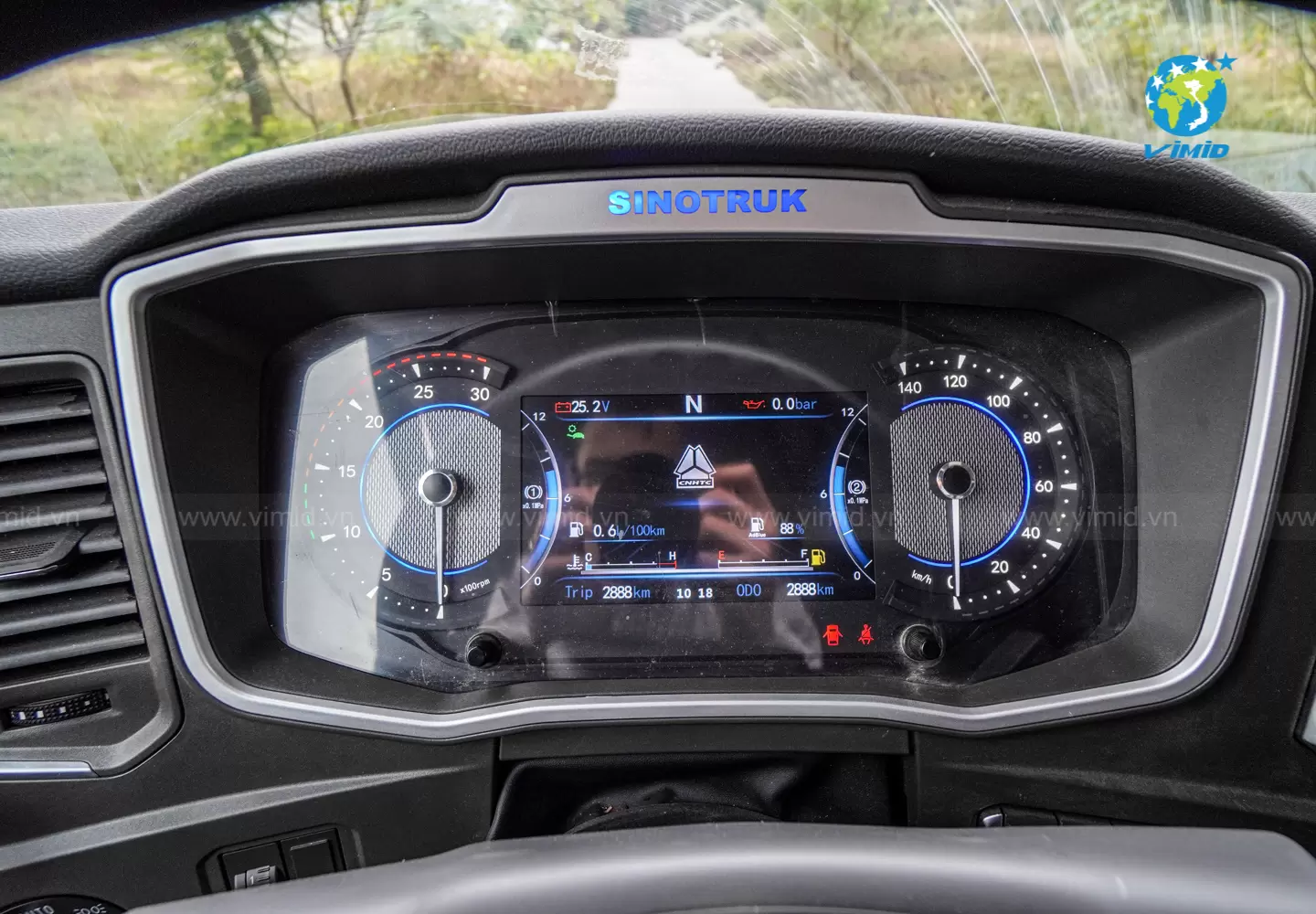

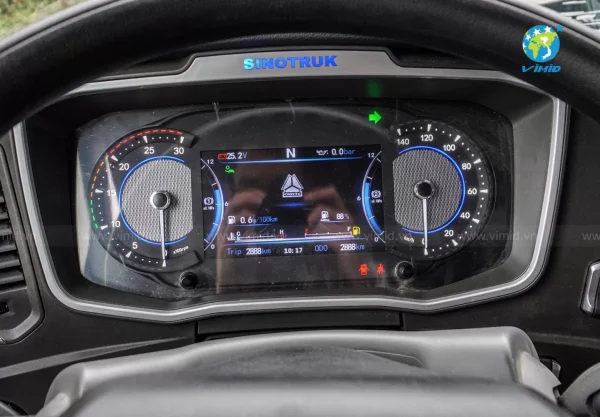

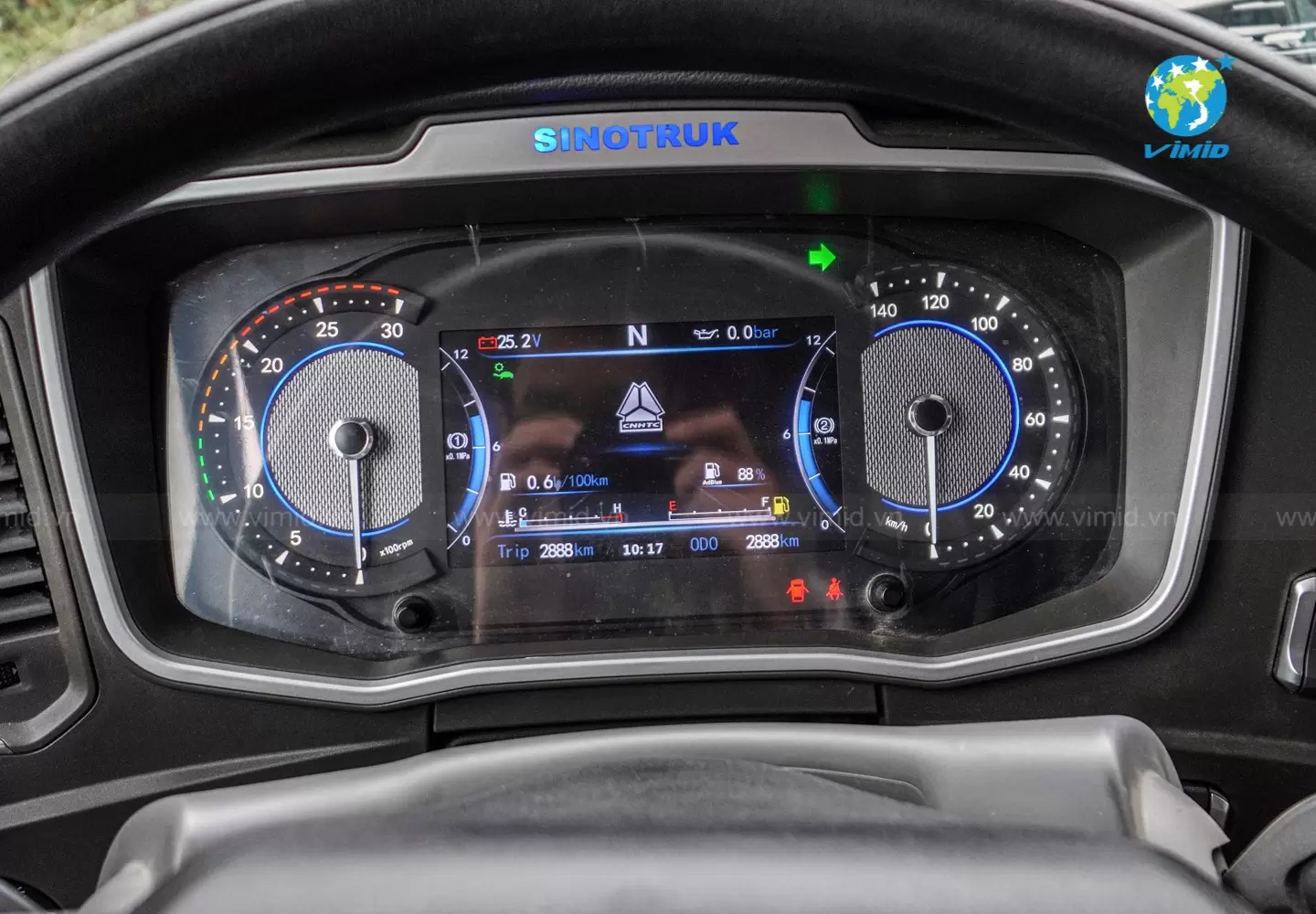

• Smart digital instrument cluster, easy to read both day and night, with an intuitive control layout.

The MAX truck passed three major crash tests under different conditions — high temperature, high altitude, and cold & humid climates — proving its durability and adaptability even in extreme and hazardous environments.

POWERTRAIN AND TRANSMISSION

Engine Specifications:

• Engine: MC11.40-50 MAN-technology, manufactured at the MAN–SINOTRUK joint venture plant, ensuring premium German quality.
• Engine meets B10 standard, with a lifespan of up to 1.8 million km before overhaul.
• Provides high power output and energy reserve, delivering excellent performance for acceleration, climbing, and heavy-duty operations.

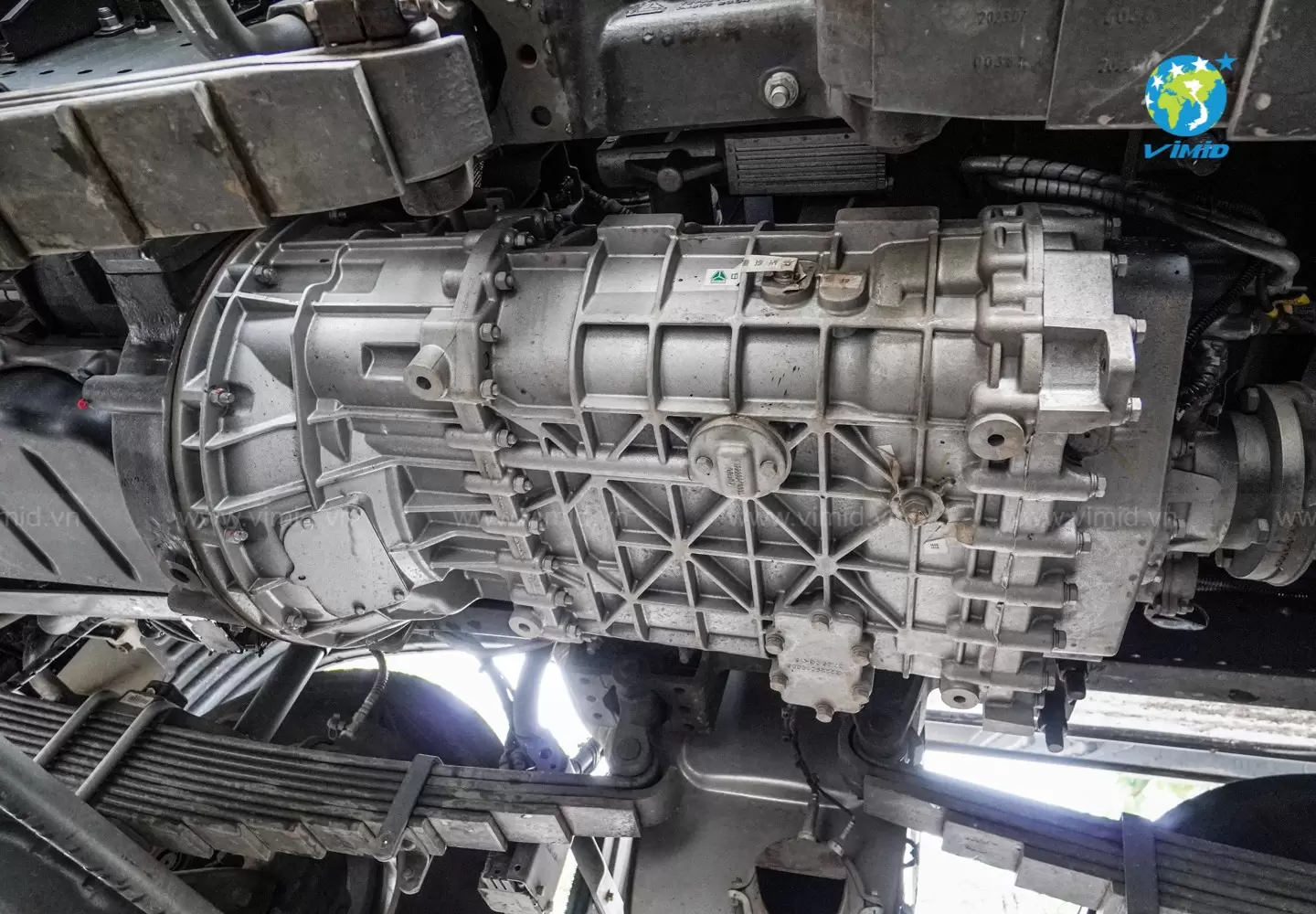

Gearbox: HW25712XSTL

• Model: HW25712XSTL
• Torque capacity up to 2500 Nm.

Axles:

• Front axle: MAN technology, load capacity 7.1 tons.

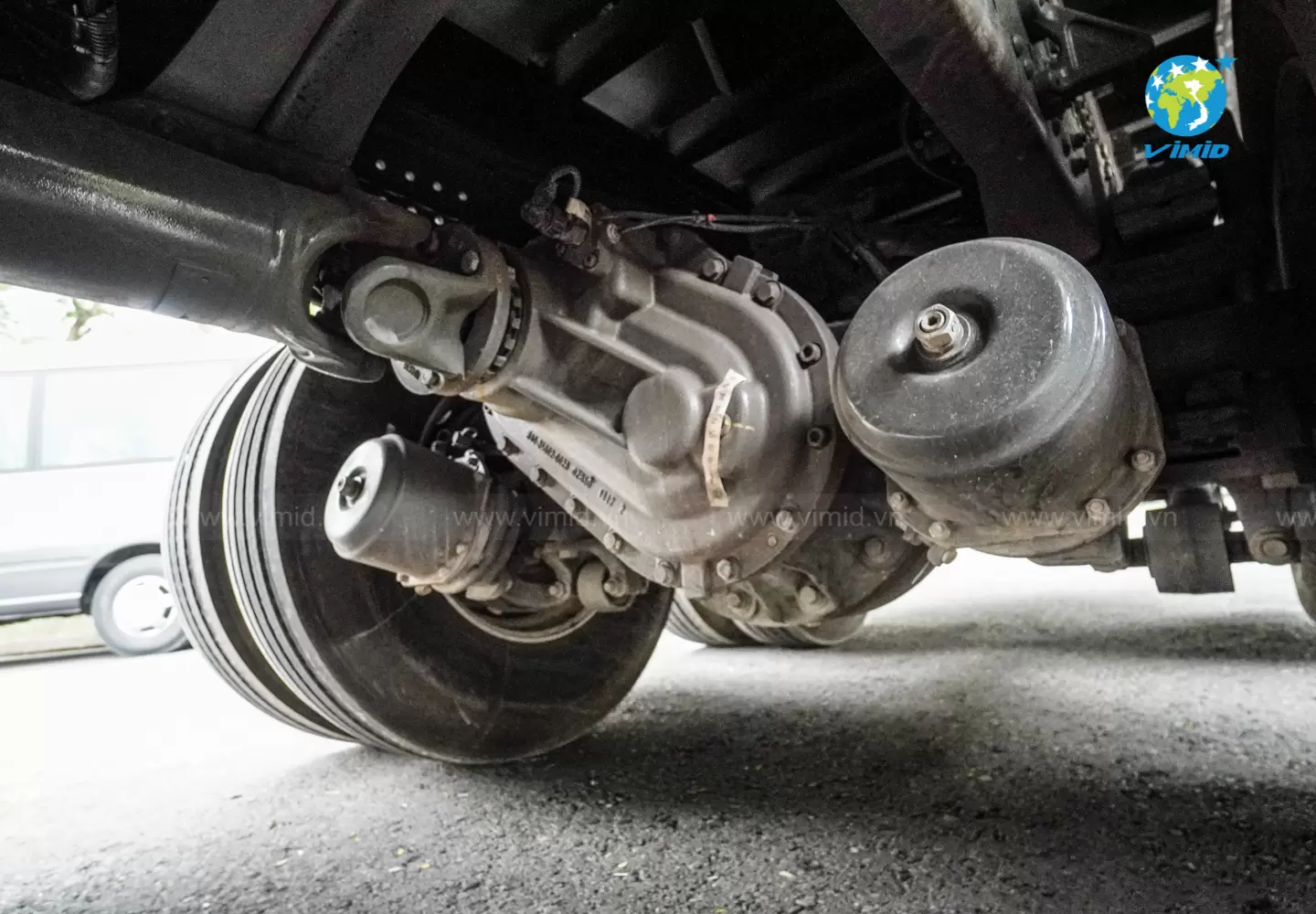

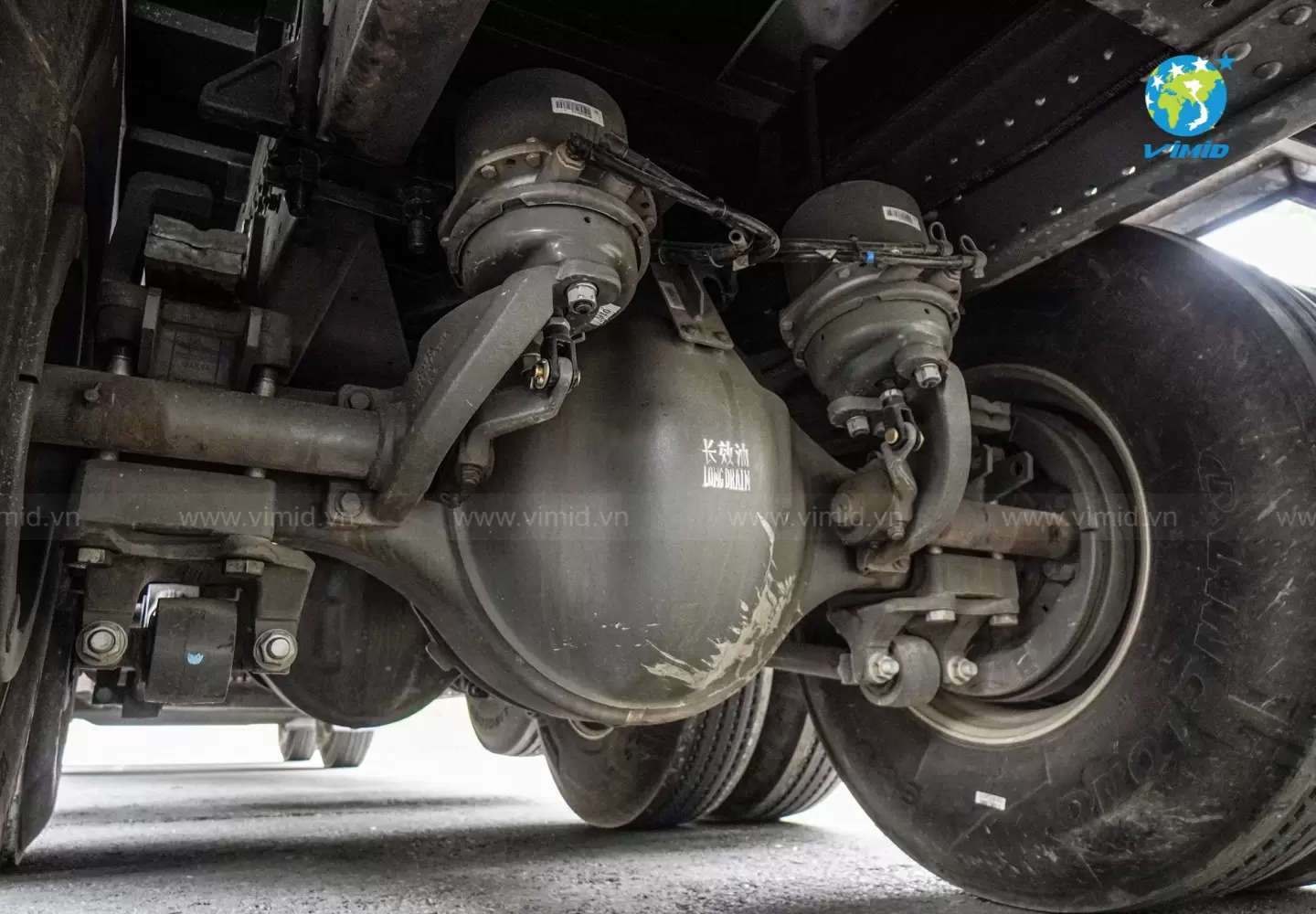

• Rear axle: MAN technology MCJ13JGY (13 tons) drive axle, featuring synchronized European-quality gear systems with 98.6% transmission efficiency and extended oil-change interval up to 80,000 km

TARPAULIN FRAME BODY

• Body type: Canvas frame/ Tarpaulin frame cargo body, length 9.7m
• Overall dimensions: 12160 × 2500 × 3696 mm
• Inner body dimensions: 9700 × 2360 × 830/2150 mm
• Structure:
  • Steel chassis frame
  • 4-compartment layout
  • 2.0 mm flat steel floor
  • 0.6 mm corrugated stainless-steel outer panels

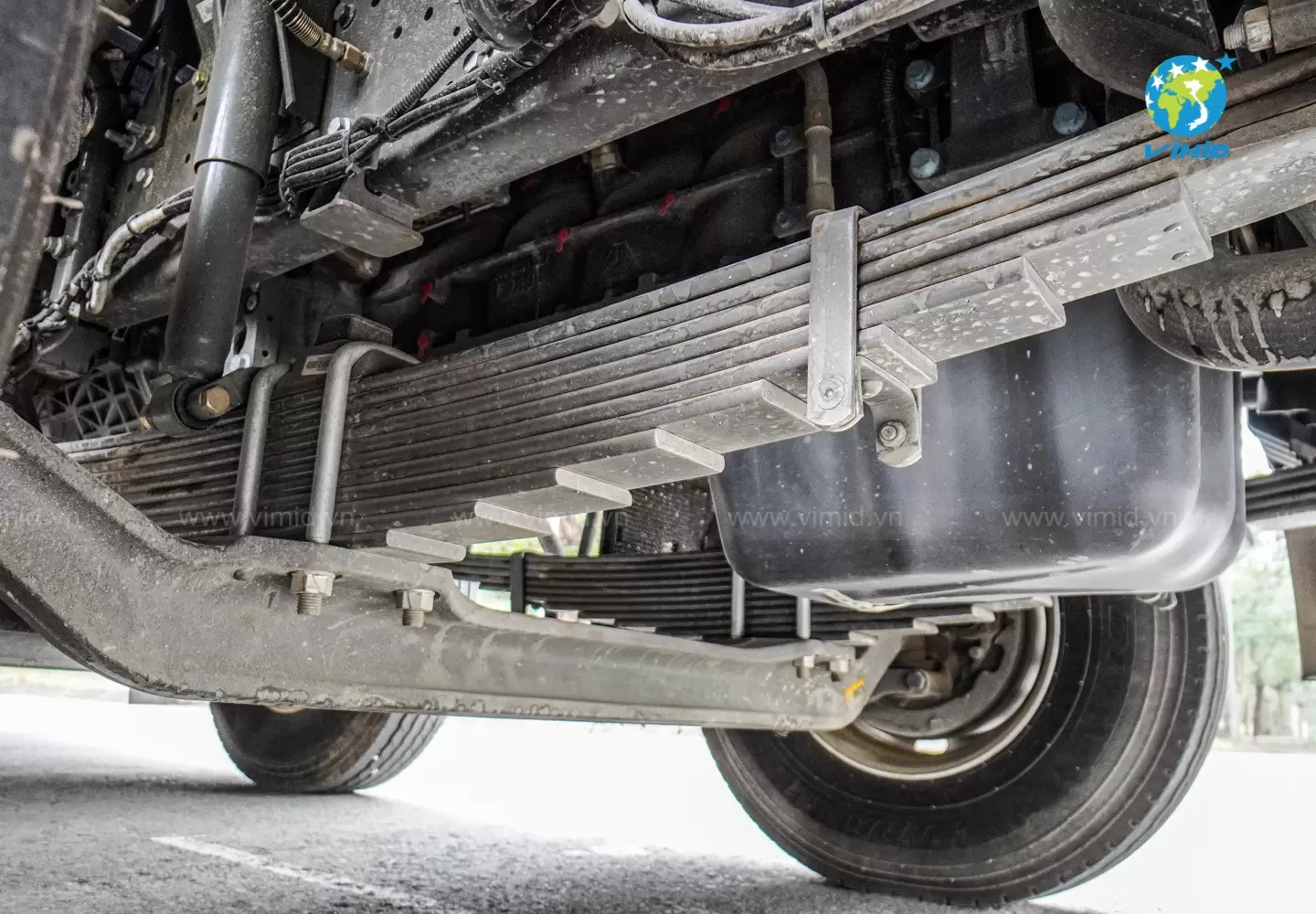

MAN TGA technology chassis: lightweight, durable, and highly load-resistant.

With these advantages, the MAX 400 8×4 truck achieves fuel consumption of approximately 27–29L/100km under full load, delivering the best traction performance in its class.
