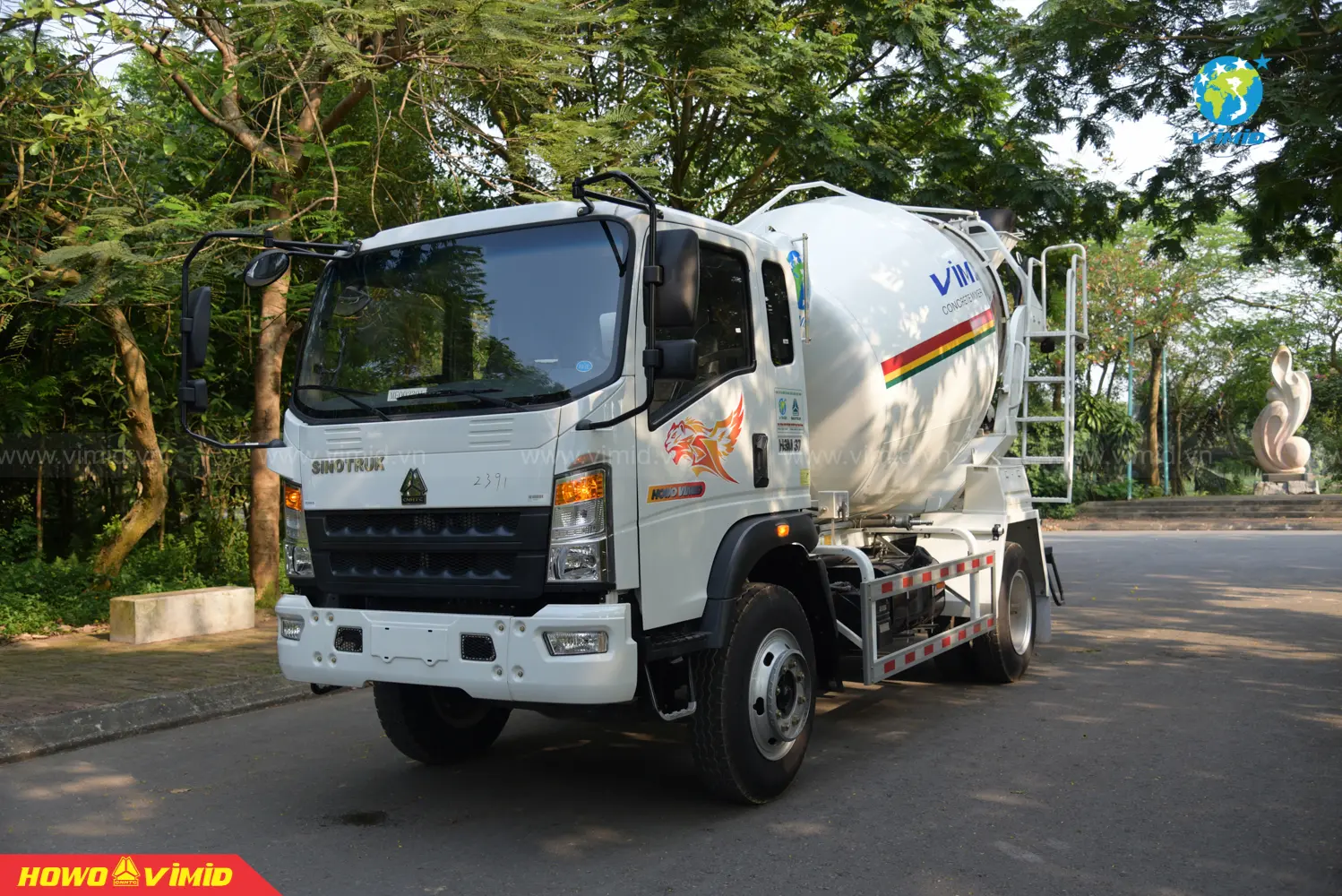

Howo H3 130HP 5m³ Concrete Mixer Truck

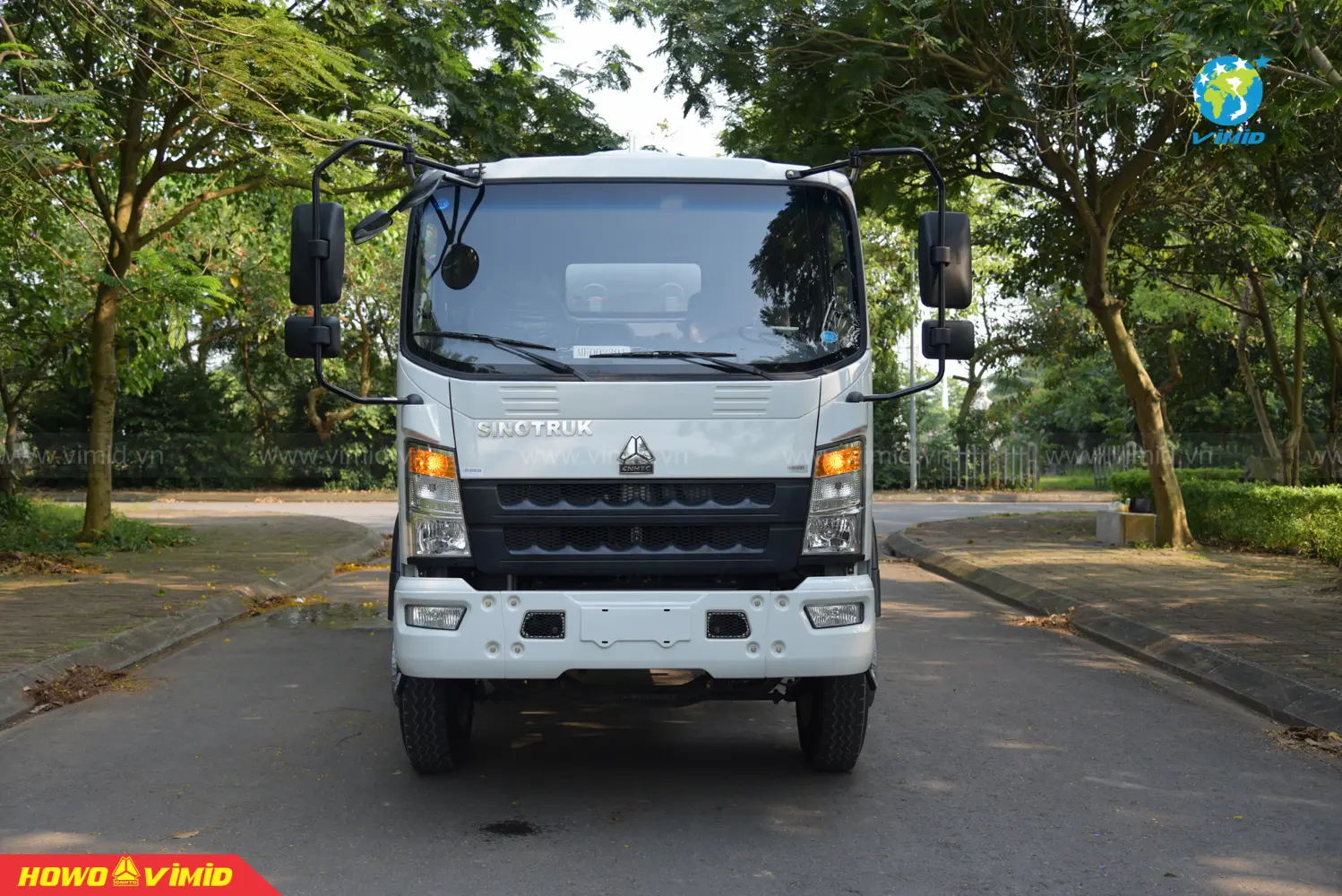

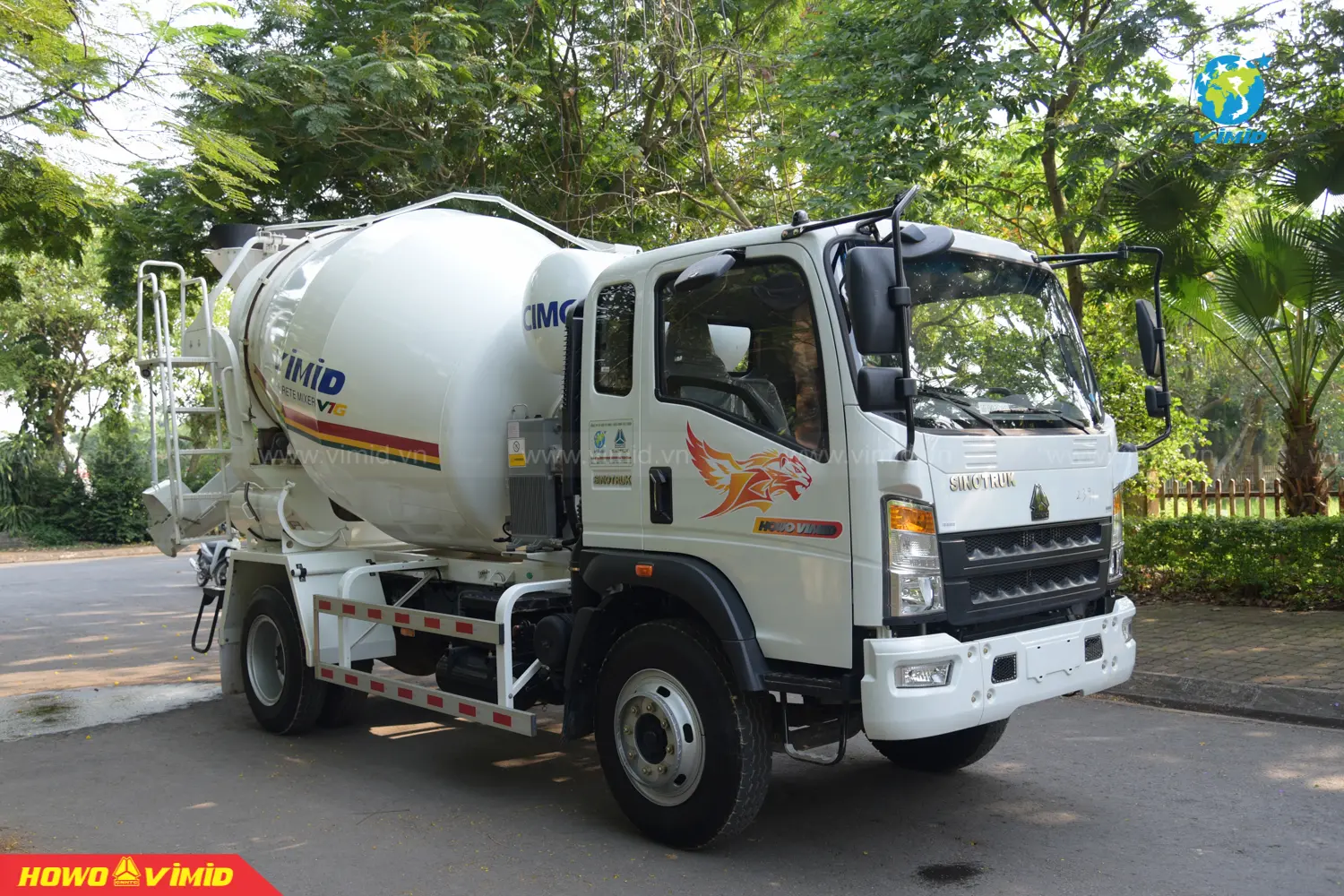

EXTERIOR DESIGN

The H3 cabin is a common design used across SINOTRUK’s medium and light-duty truck lines.

• Stylish, durable exterior with a strong and modern appearance.
• The high-mounted steel front bumper provides greater clearance for navigating narrow or uneven roads.
• Halogen headlamps with integrated high/low beams, turn signals, and fog lights deliver excellent illumination and are easy to maintain or replace.
• Rear combination lights include turn, brake, reverse, and tail lamps for improved visibility.
• Wide rearview mirrors enhance the driver’s field of vision and reduce blind spots.

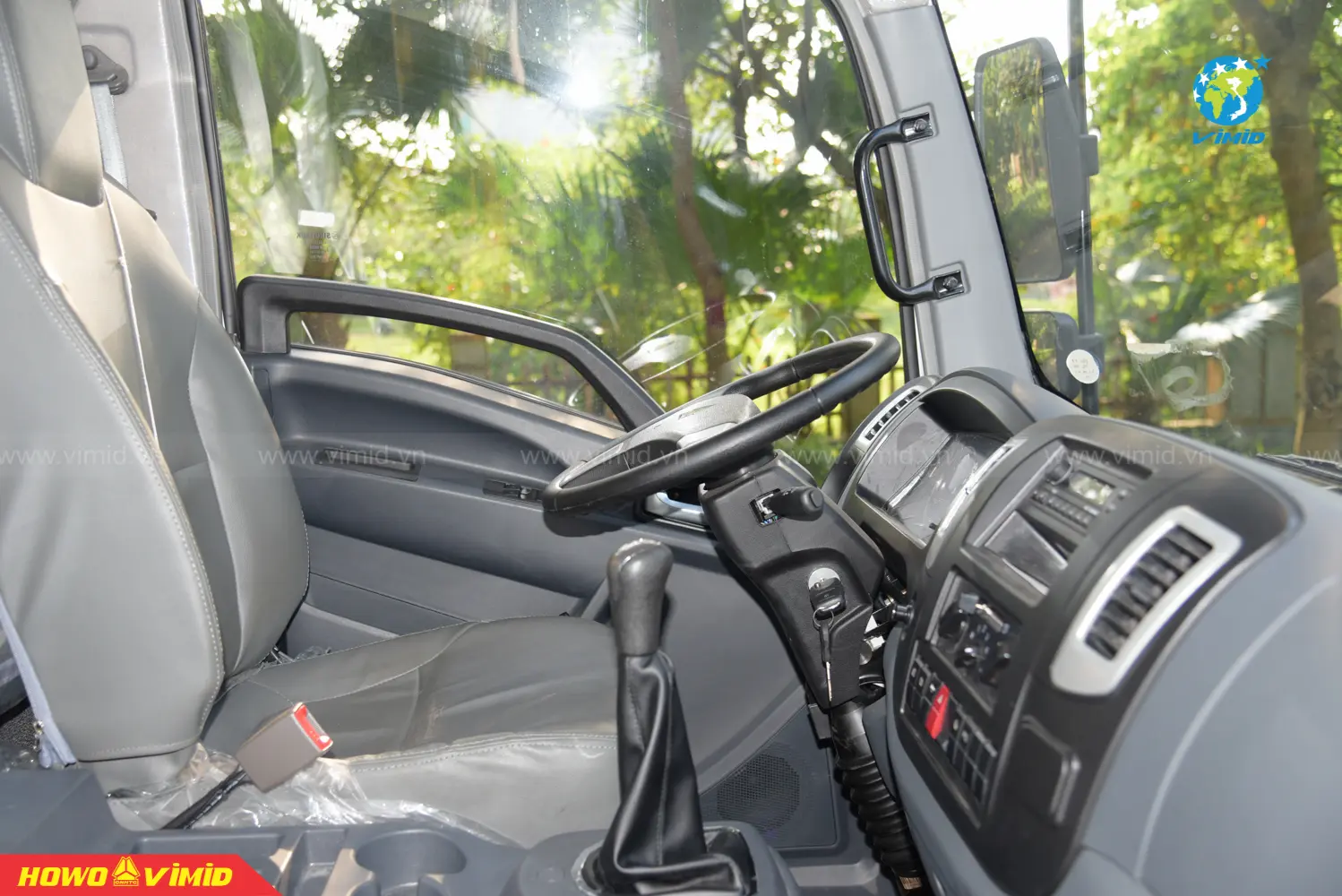

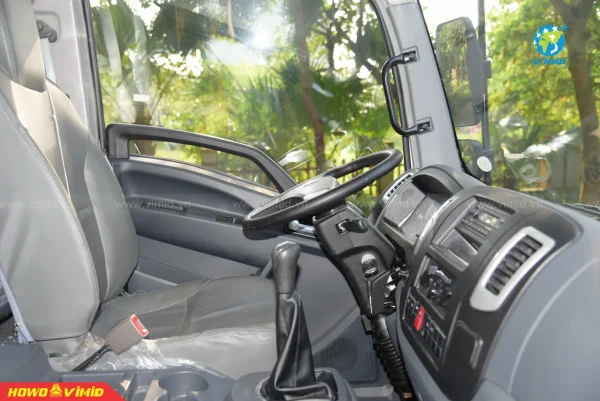

INTERIOR DESIGN

The spacious cabin features a modern grey tone, offering comfort and sophistication.

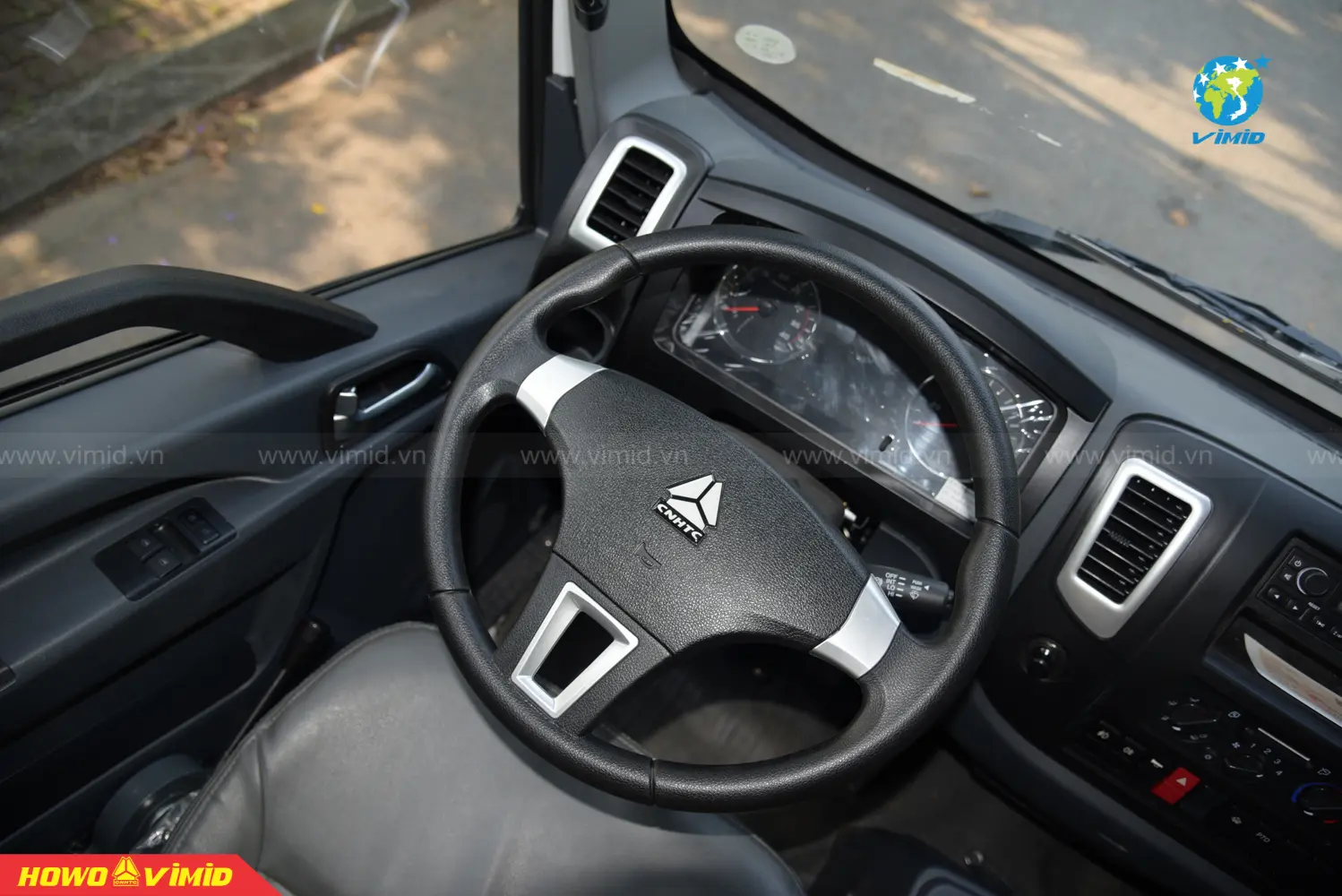

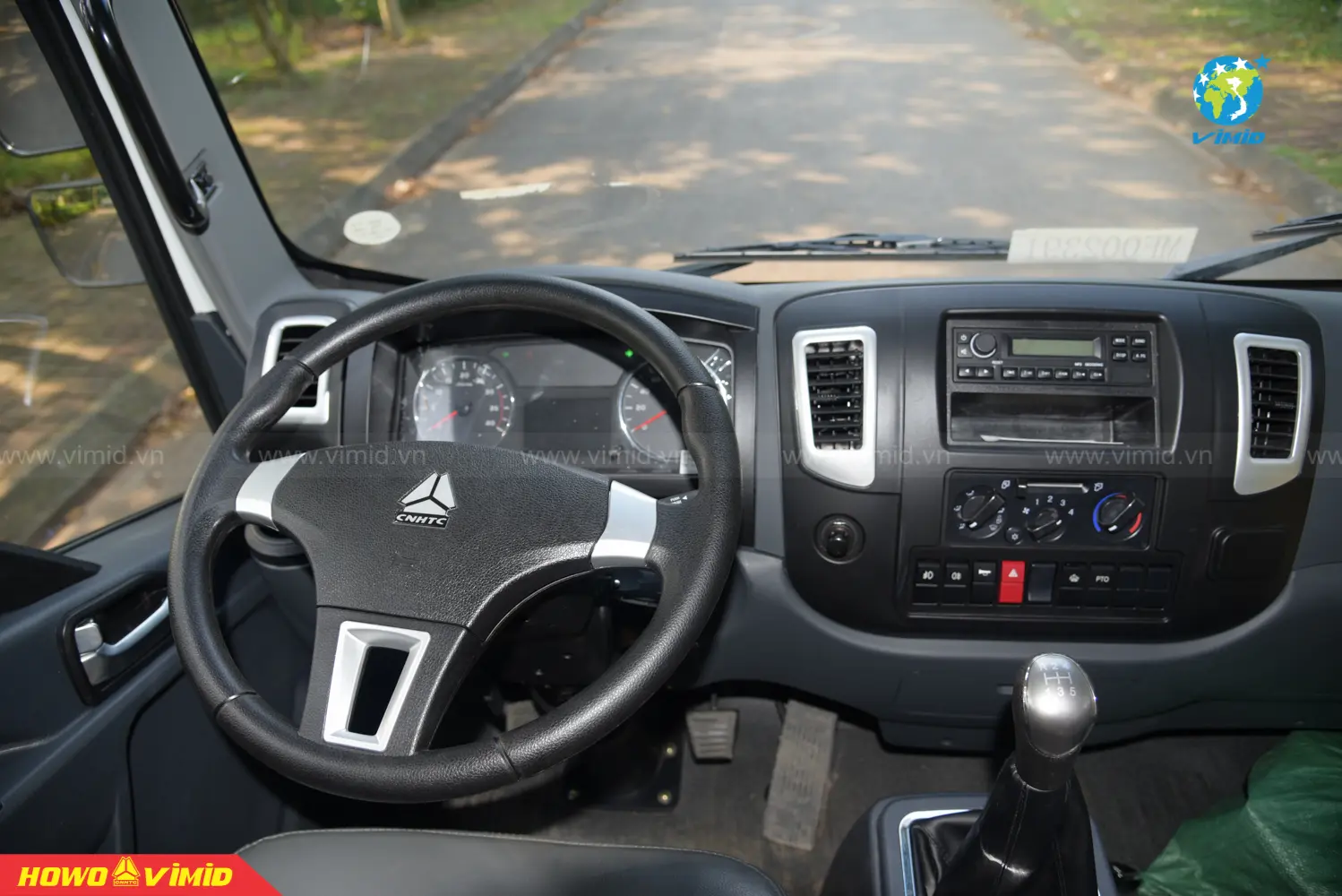

• The central control panel is ergonomically designed, surrounding the driver for easy operation.
• Single-sleeper cabin with excellent forward visibility from the driver’s seat.

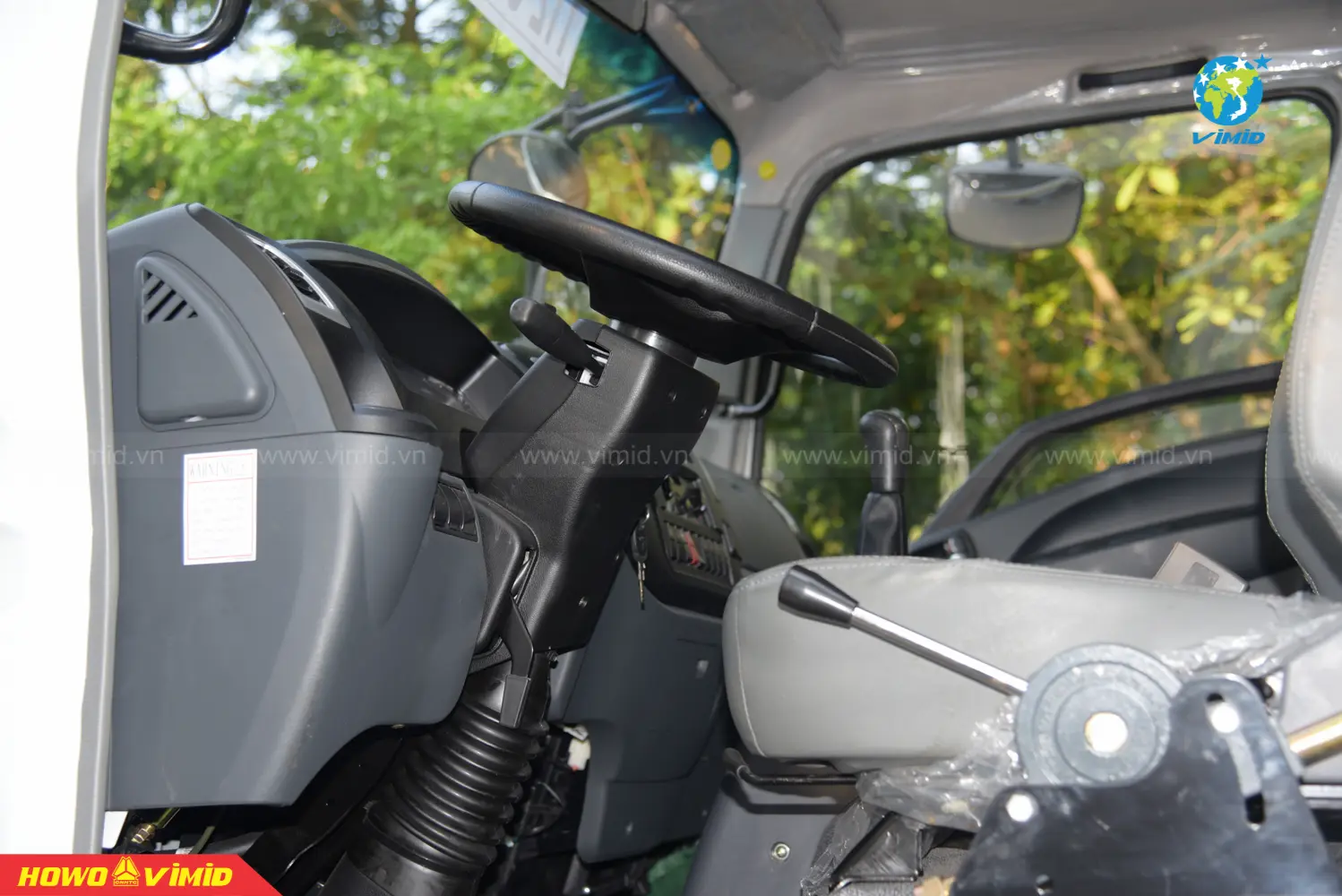

• The adjustable driver’s seat allows for multiple configurations to maximize comfort.
• Power windows ensure convenience and a modern feel.

POWERTRAIN AND TRANSMISSION

The H3 130HP 5m³ mixer truck is powered by a Yuchai YC4D130-50 engine, delivering 130 horsepower and 420 Nm torque.

• Equipped with SCR exhaust treatment technology, meeting EURO V emission standards.
• Fuel-efficient, durable, and long-lasting engine performance.

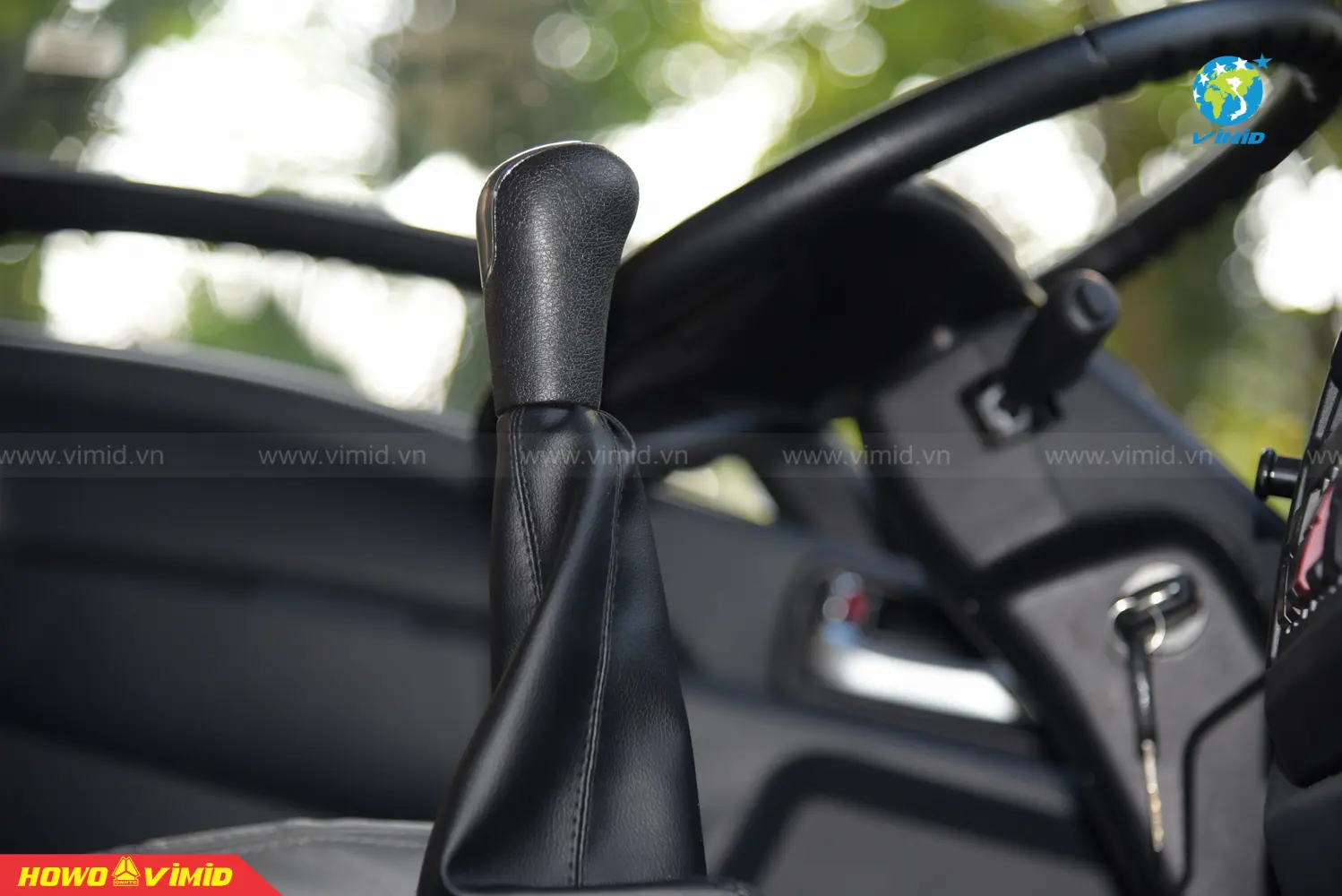

• SINOTRUK 0FB58 gearbox with 5 forward and 1 reverse gear, capable of handling torque up to 460 Nm—reliable and widely used in SINOTRUK’s medium/light-duty trucks.
• Front axle 1090N (3T) and rear axle 1094D (ratio 6.33) for high load capacity, durability, and fuel economy.

HYDRAULIC SYSTEM & MIXING TANK

Hydraulic System

The hydraulic system is a core component that determines mixing quality, safety, and operational performance.

• Hydraulic pump and motor: EATON (USA).
• Reducer: PMP (Italy).
• These globally recognized brands ensure exceptional durability, reliability, and power.
• Oil cooler (YS18L model) provides excellent heat dissipation, stabilizing oil temperature and protecting seals, ensuring long-term hydraulic system performance.

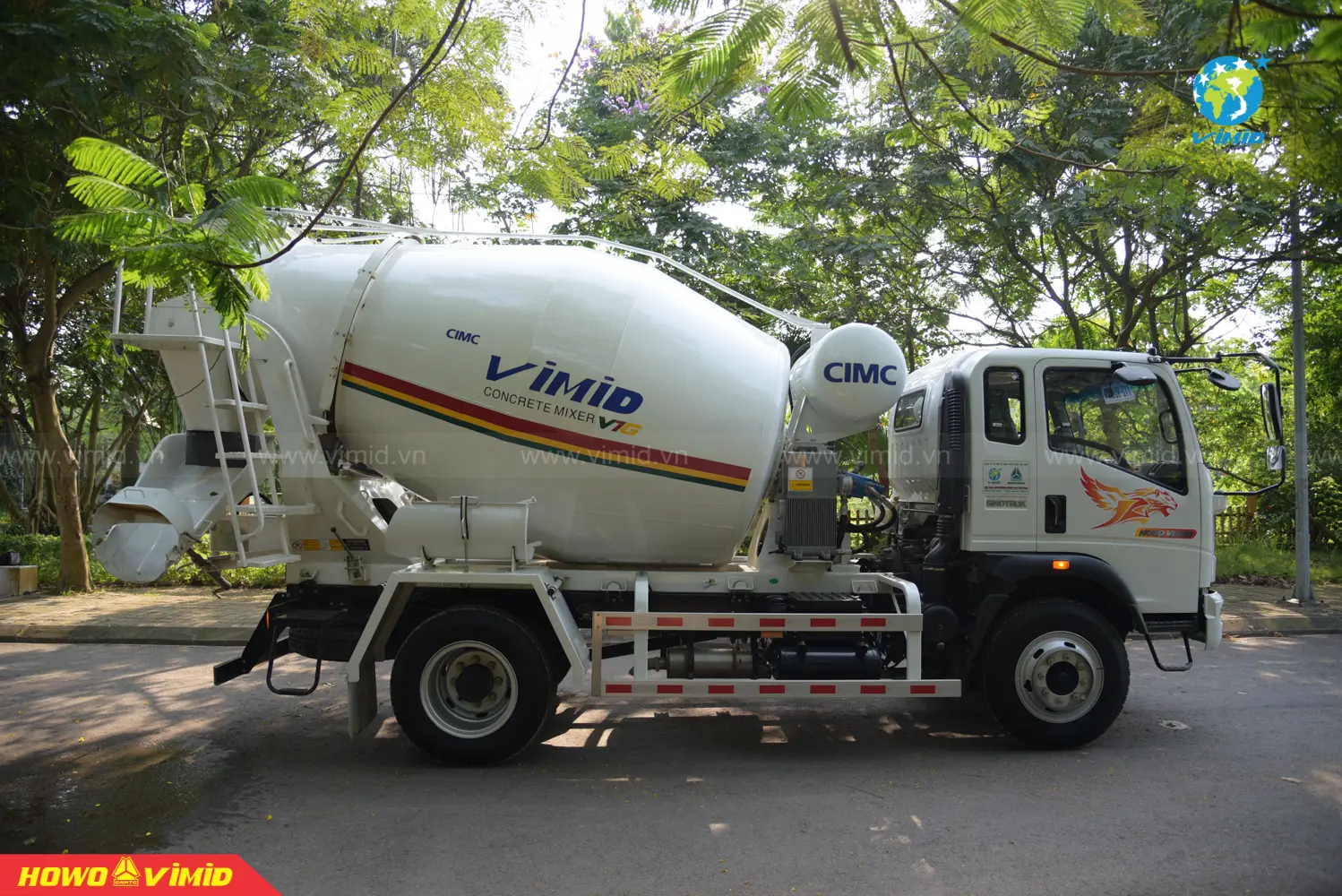

Mixing Drum

• Manufactured by CIMC, a leading brand in mixer drum production.
• Made from high-strength steel 750JJ for superior durability and concrete quality.
• Equipped with a B6 speed controller—robust and reliable.
• Electrostatic powder coating technology, using German automatic spray systems, gives a smooth, glossy finish, three times more durable than conventional paint.
• Volume: 9.5m³.
• Features include electric motor control, simplified throttle and drum adjustment system, and in-cabin drum control.

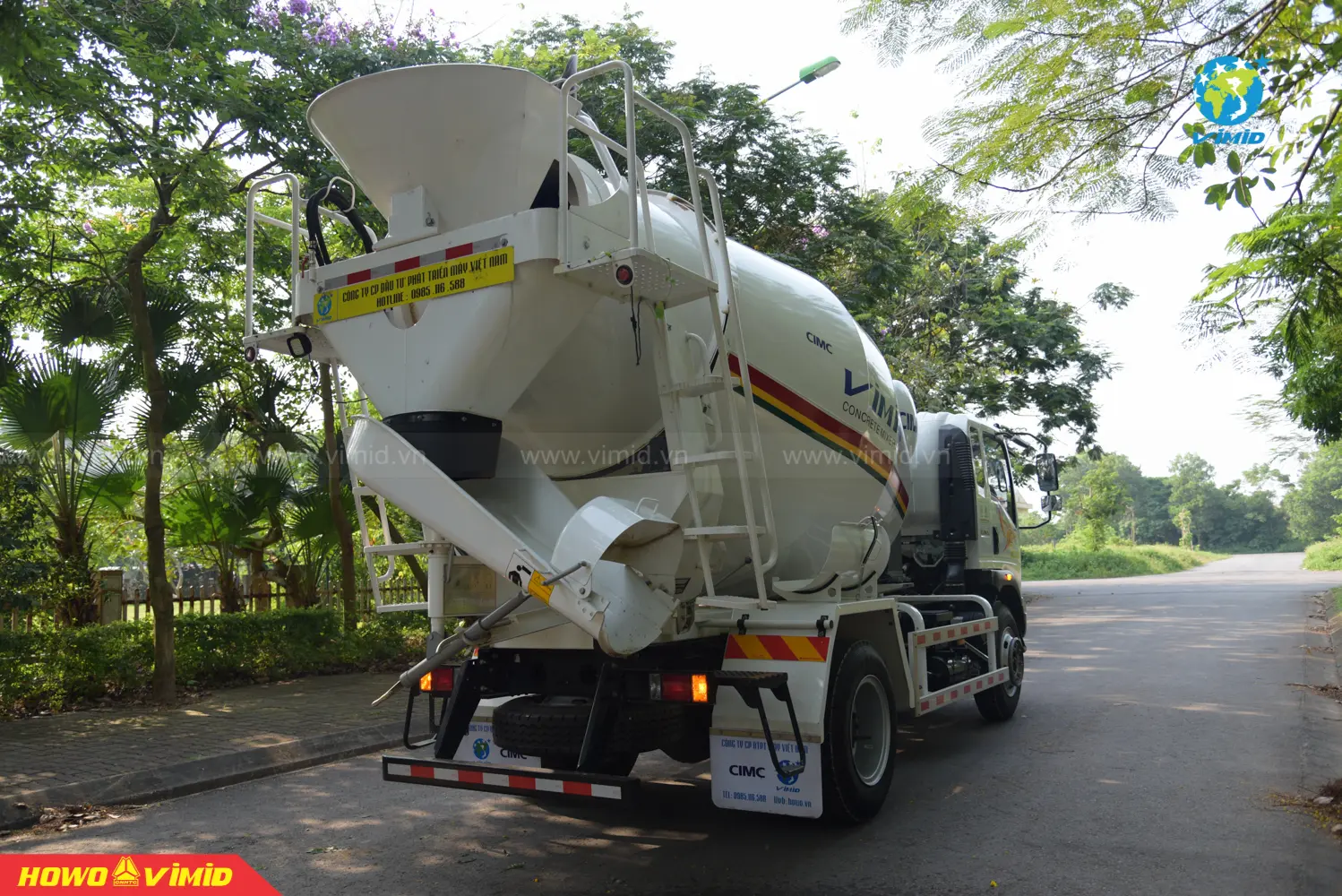

• Sturdy steel ladder ensures safety and ease of maintenance.
