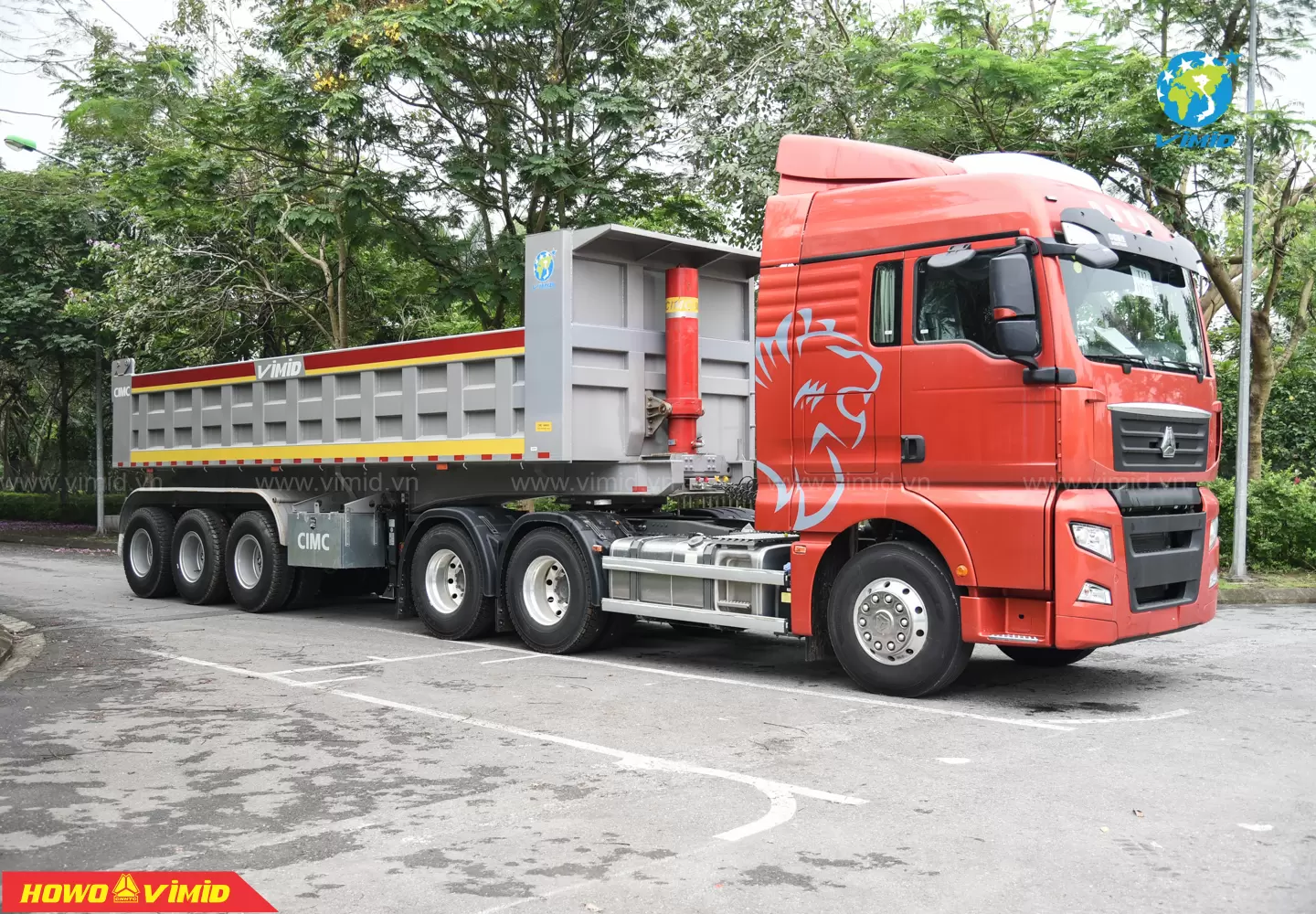

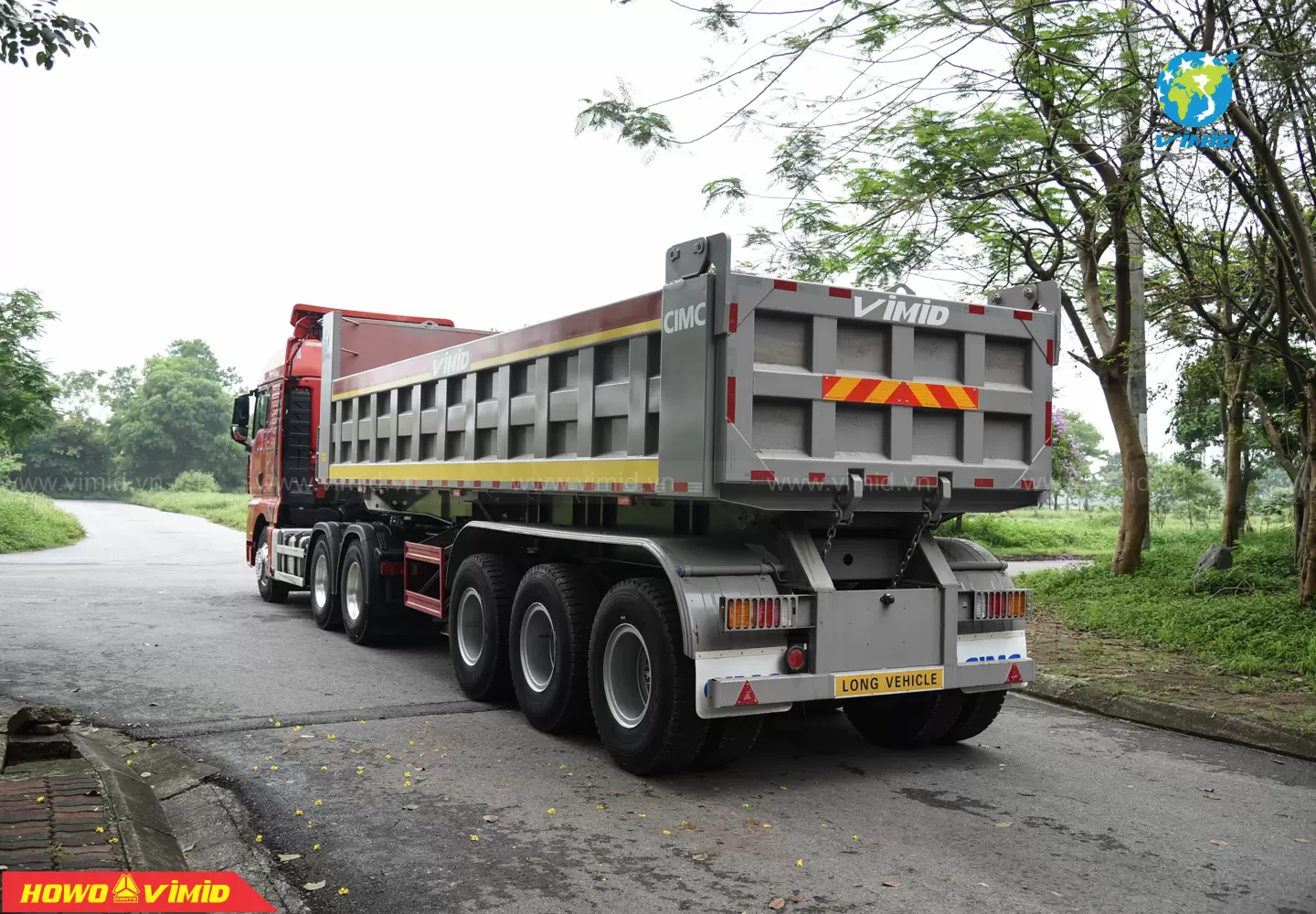

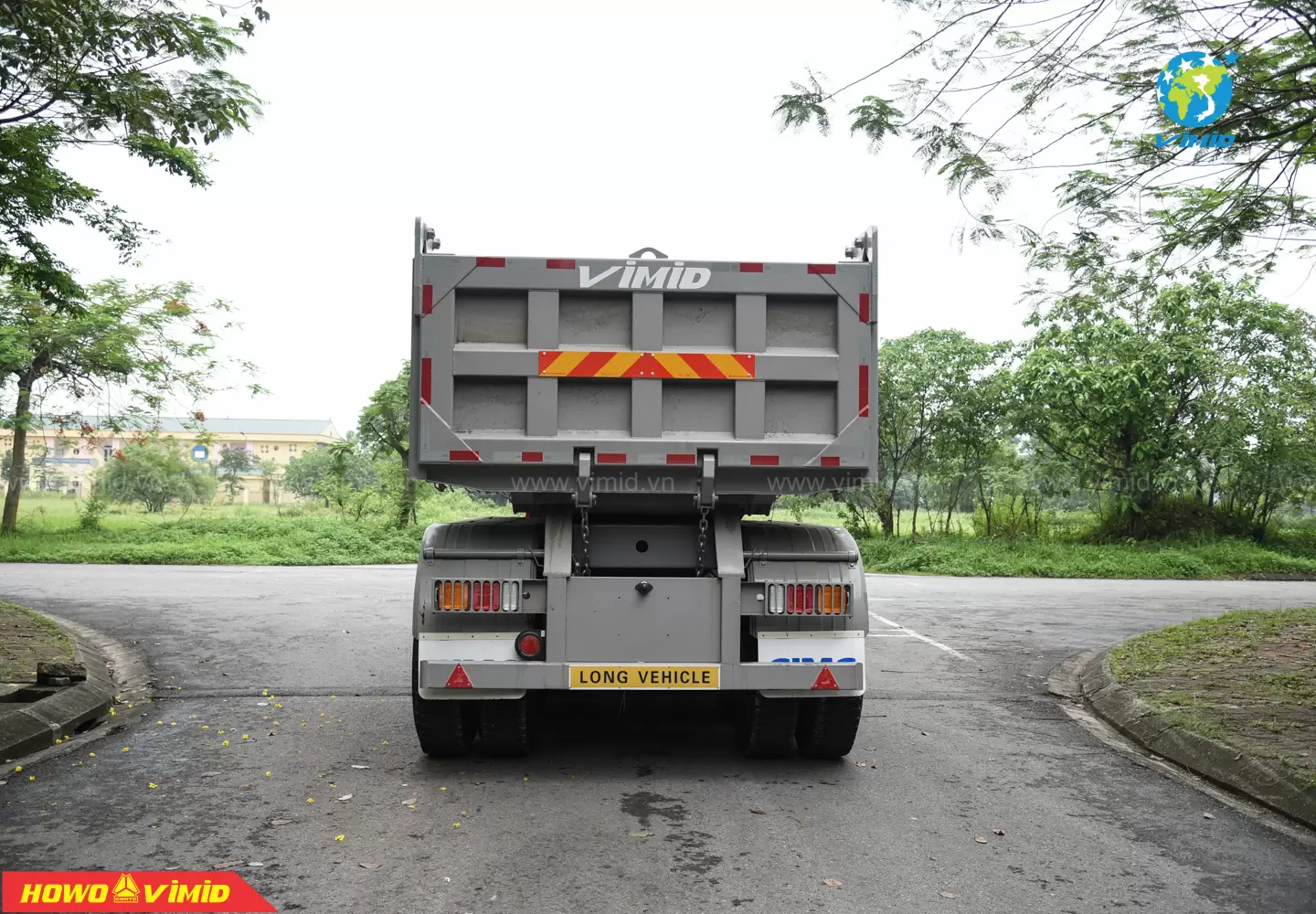

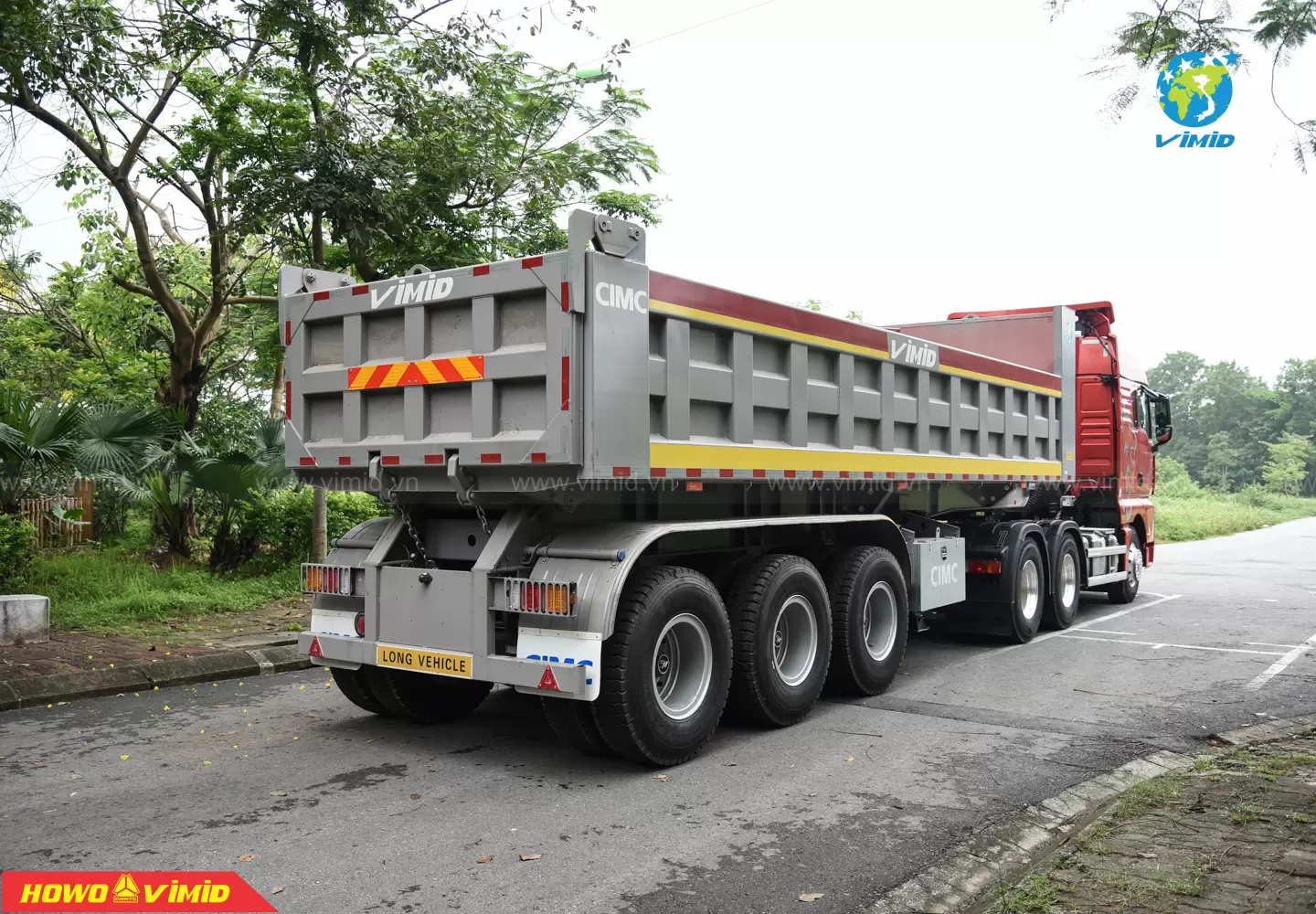

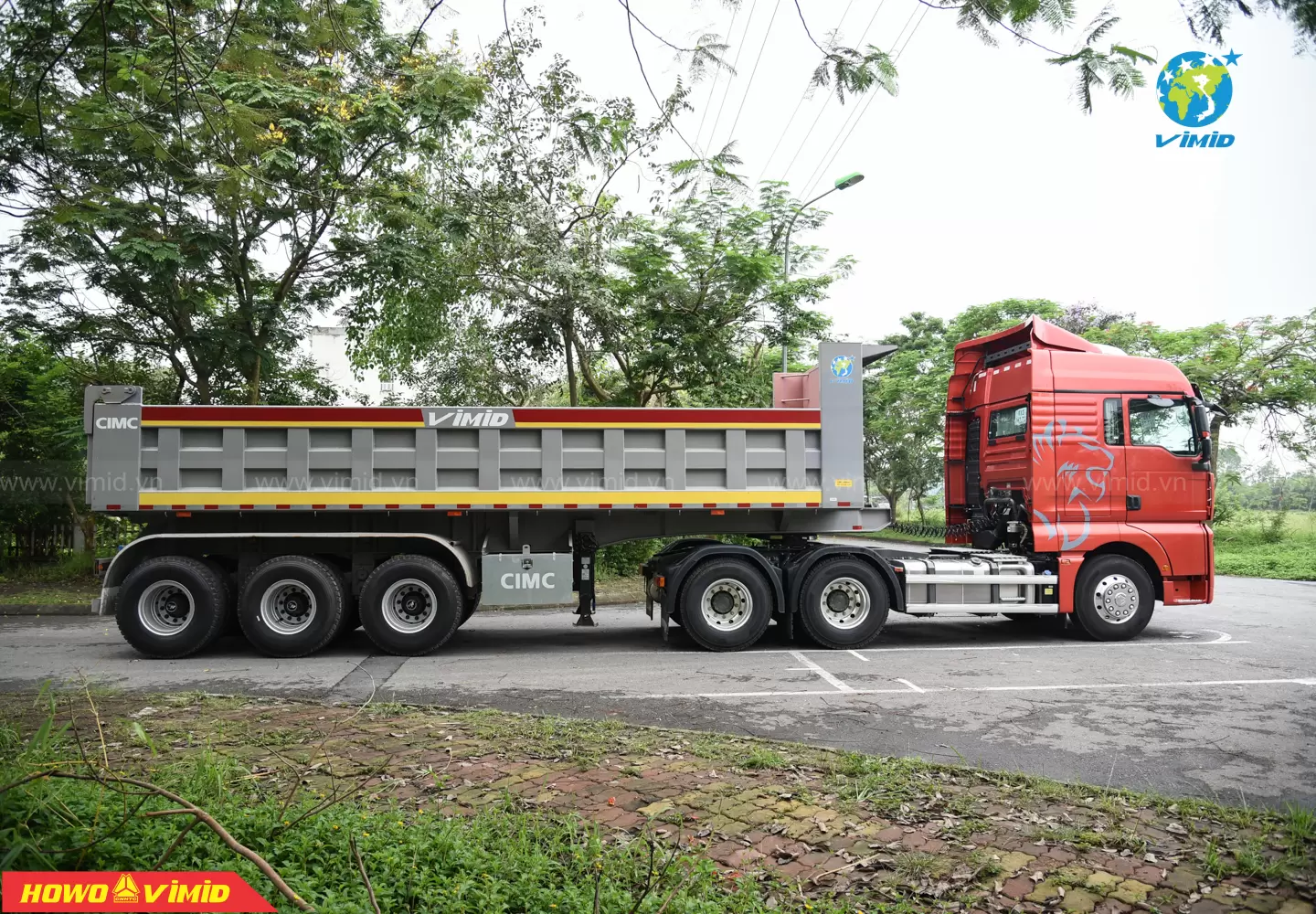

CIMC Square-Shape Dump Semi-Trailer – 24.7 Tons, 12.00R20

The CIMC square shape dump semi-trailer (model 228-5, 12.00R20) is one of the latest products jointly researched, designed, and developed by VIMID and SUNHUNK.

It features outstanding innovations that meet a wide range of transportation demands — from cargo hauling to mining, ore transport, and construction site operations, performing reliably across varied terrains.

Key Highlights of the CIMC Square-Shape Dump Semi-Trailer – 24.7 Tons

• Extra-long body in its segment, reinforced with large, solid box ribs; equipped with anti-torsion chassis and stabilizer bars for steady lifting and lowering of the dump body.
• Ultra-strong body structure: 6mm side walls and 8mm floor made from NM450 high-strength steel, offering 4 times the durability of standard Q345 steel (equivalent to SUNHUNK K450). Large box ribs enhance rigidity and create a sleek, powerful appearance.
• I-beam chassis: dimensions (500/160)x145x(20/20)x8mm, thick, solid, and reinforced with X-shaped anti-twist crossbars at both ends.
• 16-ton axles and 10-leaf spring suspension deliver excellent load capacity and stability.
• CIMC 228-5 hydraulic hoist, the largest in its class, provides outstanding lifting stability and load-bearing capacity — proven reliable on VIMID’s dump truck models.

Hydraulic System

The CIMC 228-5 hydraulic system is fully integrated with the dump body:

• The largest diameter in its segment, providing efficient lifting and excellent anti-roll stability.
• Based on CIMC Group’s international hydraulic technology, backed by decades of experience in dump truck system development.
• Seamless steel cylinders with special chrome-plated surfaces for corrosion and rust resistance.
• Organized, compact pipeline brackets for cleaner, more convenient installation.

Square Shape Body

• I-beam chassis (500/160)x145x(20/20)x8mm, strong and stable, reinforced with X-braces at both ends for anti-torsion strength.
• Lower center of gravity, perfectly aligned with the tractor head for smoother and safer operation.
• Reinforced box ribs underneath enhance rigidity and stability when lifting and unloading, preventing body distortion.

Axle System

Equipped with CIMC HUAJUN heavy-duty axles, developed and produced in synchronization with the trailer body.

• 16-ton load capacity, ensuring high durability, stability, and efficient performance under heavy loads.

Suspension System

Dependent spring suspension with 10/10/10 leaf springs, each 90mm wide, featuring three 16mm-thick lower leaves and three 13mm-thick upper leaves for superior strength and load endurance.

Oversized spring pins (Ø120mm) ensure enhanced durability and stability when carrying heavy loads.

Additional Features

• Waterproof LED lights with protective mesh — energy-efficient and long-lasting.
• Rear license plate light with reinforced mounting plate, increasing chassis rigidity.
• Red-painted, anti-rust aluminum air tanks and a 3-axle pneumatic braking system ensure safety and endurance.

We are committed to delivering premium-quality products with dedicated, professional after-sales service!
